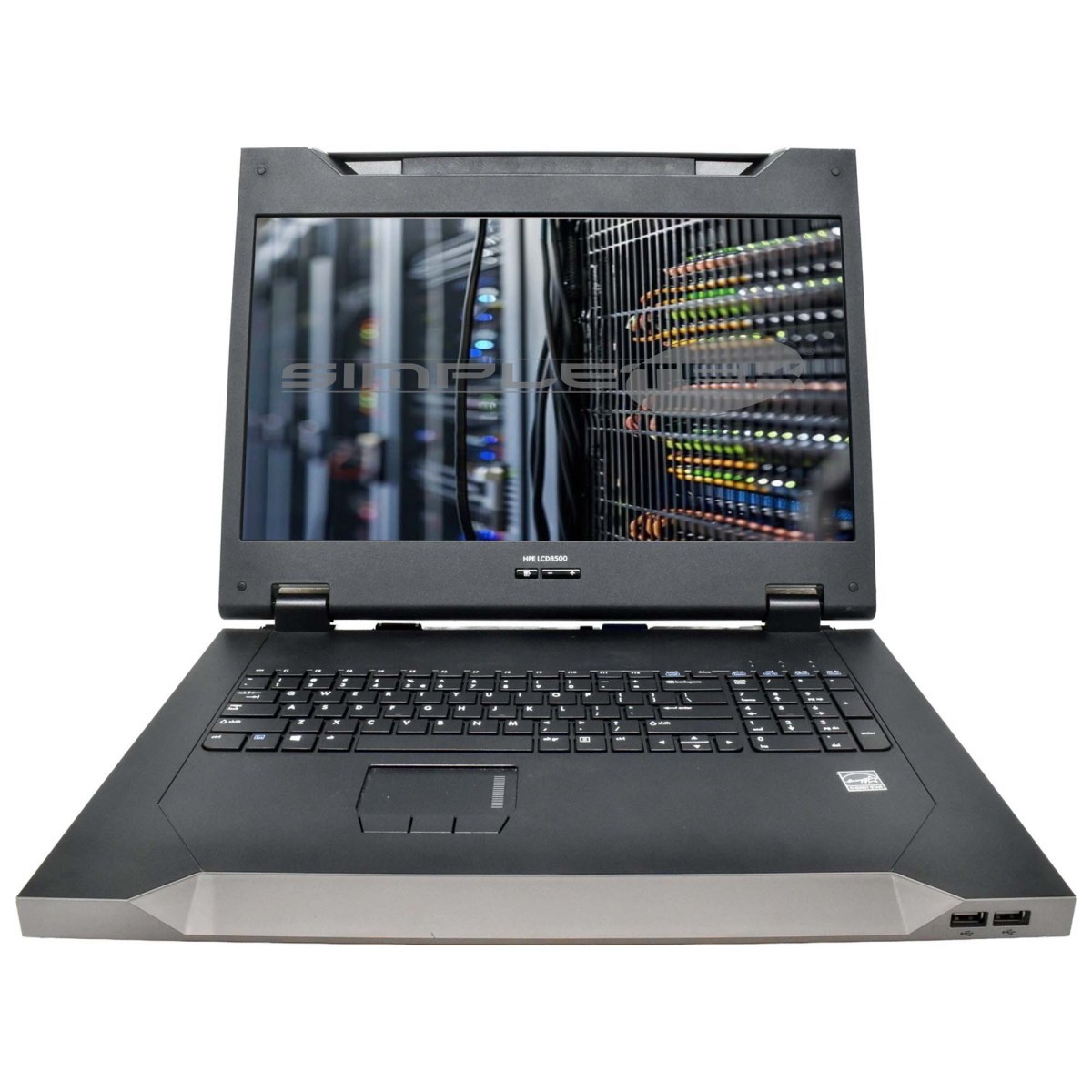

HPE AF644A Console Rackmount LCD8500 Display With Keyboard KVM 18.5"The description of this item has been automatically translated. If you have any questions, please feel free to contact us.
HPE Af644a Console Rackmout Lcd8500 Display With Us Int Kvm Keyboard 18.5"_
Simpletek code: 26144
Professional 1U rackmount KVM console with 18.5-inch TFT LCD display, integrated keyboard and touchpad. Ideal for the direct management of servers in rack cabinets, with support for the main resolutions up to 1600x1200 pixels and compact design for enterprise and data center environments
Conditions: NEW - New and never used product. Impeccable condition and without signs of wear.
Warranty: 24 months
Description
It features an 18.5" WXGA TFT LCD BrightView screen that supports the most common video resolutions from 800x600 to 1600x1200 with a refresh rate of 60 to 75 Hz
Active matrix TFT LCD screen delivers flicker-free images with higher quality focus than a CRT monitor
Includes two front USB pass-through ports for use with KVM console switches that support Virtual Media
? Main Features
Brand: HPE
Model: HPE LCD8500
Type: KVM Console
MPN: AF644A
Form factor: Rack-mountable
Slides: The kit includes sliding guides (tool-less rails) specifically designed to allow quick installation inside the rack without the use of tools
? Display
Screen size: 18.51"
Screen type: LCD
Resolution: 1600 x 1200 pixels
Refresh rate: 60Hz
Technology: TFT active matrix
Diagonal size (metric): 47.02 centimetres
Viewable dimensions (metric): 47.02 centimetres
Image brightness: 187 candelas per square meter
Image contrast ratio: 700:1
Response time: 16 milliseconds
Typical response time: 16 ms
OSD Languages: Spanish, Chinese (Simplified), French, Italian, English, German, Japanese
? Audio output
Type: None
⌨️ Input device
Type: Keyboard, touchpad
?️ KVM
Keyboard/mouse interface: USB
? Connectivity
2x USB 2.0 Front Pass-Through (Virtual Media Functionality)
3x rear USB 2.0 (1x for Keyboard and Mouse + 2x dedicated to Pass-Through +
1x Serial Firmware Port (An internal service/serial port used primarily for diagnostics or firmware upgrades of the console logic itself.)
1x AC power input
1x LDS (Location Discovery Service) Proprietary Port
? Design and Dimensions
Dimensions: HxWxD 4.23 x 43.61 x 43.3 cm
Weight: 5.2 kg
Rack Size: 1U (includes screen and keyboard)
⚡ Energy Management
Rated voltage: AC 120/230V
Required frequency: 50/60 hertz
Energy consumption during operation: 36 watts
⚙️ Features
Pointing device: Three-button touchpad with four scroll keys
You need a console with latest generation KVM technology to manage the servers in the rack
Knowledge is power discover what's happening right at the rack level with HPE Enterprise LCD consoles
HPE Enterprise LCD Consoles offer a high-performance display and keyboard with touchpad in a 1U form factor
The 1U rackmount form factor allows you to mount a KVM console switch directly behind the rack
The HPE LCD8500 features an 18.5-inch WXGA TFT LCD BrightView display that supports popular video resolutions up to 1600x1200 with a 60 to 75 Hz refresh rate
The LCD8500 features a silver-colored enclosure that simplifies identification in the rack
The integrated keyboard includes a touchpad with three buttons, 4 scroll keys and Windows shortcut keys
The Lid Switch also includes a new screen management feature that allows you to turn off the backlight when the console is closed and reactivate it when the console is reopened thus extending the life of the screen
High-density, high-performance KVM console keyboard and screen
HPE Enterprise LCD consoles combine the keyboard with touchpad and rack screen in a 1U form factor behind which you can mount a KVM console switch to save space
Advanced ergonomic design
Featuring a silver-colored enclosure that makes identification in the rack much easier
Includes a touchpad with three buttons, 4 scroll keys and Windows shortcut keys
The new Lid Switch screen management feature allows you to turn off the backlight when the console is closed and reactivate it when the console is reopened thus prolonging the life of the screen
Tool-free rack installation rails are included with each console kit for quick and easy installation in minutes
