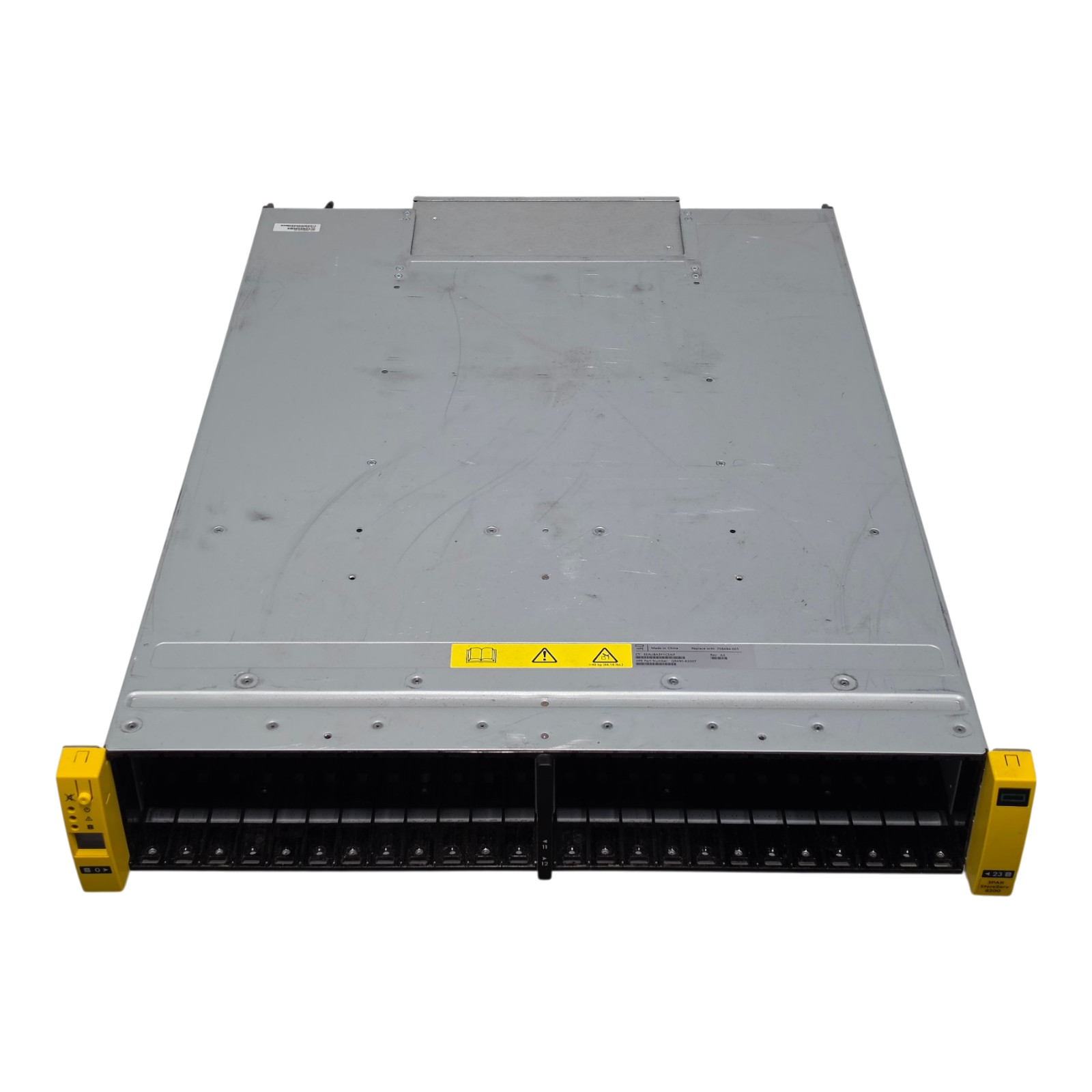

2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship HPE K2Q35A 3PAR StoreServ 8200 2U 24 SFF 2.5" Bay 2-Node Storage Base Array What's Included

• 1 x HPE K2Q35A 3PAR StoreServ 8200 2U 24 SFF 2.5" Bay 2-Node Storage Base Array - Refurbished
• 2 x HPE 3PAR StoreServ 8200 Base Controller Node - P00523-001 Each With:
• 1 x HPE 4-Port 16Gb FC Adapter - H6Z00A With:
• 4 x HPE 16Gb SFP+ Transceiver Modules - E7Y10A
• 2 x HPE 16Gb SFP+ Transceiver Modules - E7Y10A
• 2 x HPE 764W 80 Plus Gold Power Supply Unit - 727386-001 Each With:
• 1 x HPE Battery Module - 683240-001

Specification Delivery Returns

Performance Architecture

• Controller Nodes: Dual Active-Active HPE 3PAR StoreServ 8200 Controller Nodes
• Processor: Dual AMD 6-Core 2.20 GHz Enterprise Processors (1 x Per Node)
• System Cache: 64 GB (32 GB per Node)
• Hardware ASIC: 2 x Gen5 Thin Express ASICs (1 x Per Node)
• Interface Protocol: SAS-3 Internal Backplane with 16 Gb/s Fibre Channel Host Interconnects
• Link Bandwidth: 12 Gb/s SAS Link Speed per Channel

License Features:

• License Model: HPE 3PAR All-Inclusive Single-System and Multi-System Software Suites
• Included Base Features: Includes 3PAR OS Suite, Thin Provisioning (10,240,000 GB capacity limit), Thin Conversion, Thin Persistence, Thin Copy Reclamation, Thin Deduplication, Compression, Adaptive Flash Cache, Adaptive Optimization, Dynamic Optimization, Priority Optimization, File Persona (2,147,482,624 GB capacity limit), Smart SAN, Virtual Copy, Virtual Domains, Virtual Lock, Online Import, Management Plug-In for VMware vCenter, and Recovery Manager Central (RMC Application Suite with plugins for Exchange, SQL, Oracle, Hyper-V, and VMware vSphere)
• Multi-System Capability: Cluster Extension, Peer Motion, Peer Persistence, Remote Copy, and Storage style="font-family: "MS Sans Serif", Tahoma, Arial">
• 8 x 16 Gb/s Fibre Channel Ports via Host Adapter (4 x Per Node)
• 4 x 16 Gb/s Built-in Fibre Channel Ports (2 x Per Node)
• 4 x 12 Gb/s SAS-3 Expansion Ports (2 x Per Node)
• 2 x 1GbE Management Ports (1 x Per Node), 2 x 1GbE Remote Copy Replication Ports (1 x Per Node)
• 2 x System Service Ports (1 x Per Node), 6 x Manufacturing Diagnostic Interfaces

Drive Compatibility:

• Drive Interface: Dual-Port SAS-3
• Form Factor: SFF 2.5" Small Form Factor
• Solid State Drives: SFF SAS SSDs (Read-Intensive, Mixed-Use, High-Capacity Flash)
• Hard Disk Drives: 10K RPM and 15K RPM Enterprise SAS HDDs
• Nearline Hard Drives: 7.2K RPM High-Capacity Fast SAS HDDs (LFF via External Enclosure)
• RAID Support: Hardware RAID 0, RAID 1, RAID 5, and RAID 6

Power & Cooling

• Power Supplies: Dual Redundant 764W Power Supply Units
• Battery Protection: Dual Hot-Swappable Battery Modules
• Redundancy: 1+1 Hot-Swappable Power
• Input Voltage: 100V - 240V AC Auto-Ranging
• Input Frequency: 50 Hz - 60 Hz Range
• Cooling System: Redundant N+1 Axial Cooling Fans (PSU Fan Modules)
• Operating Temperature: 5°C - 40°C Range
• Storage Temperature: -30°C - 60°C Range
• Operating Humidity: 10% - 90% Non-Condensing Range

Size & Weight

• Form Factor: 2U Rackmount
• Drive Bays: 24 x SFF 2.5" (Small Form Factor)
• Dimensions: 87.95 mm Height x 483.00 mm Width x 676.10 mm Depth
• Empty Weight: 21.60 kg
• Loaded Weight: 22.10 kg
