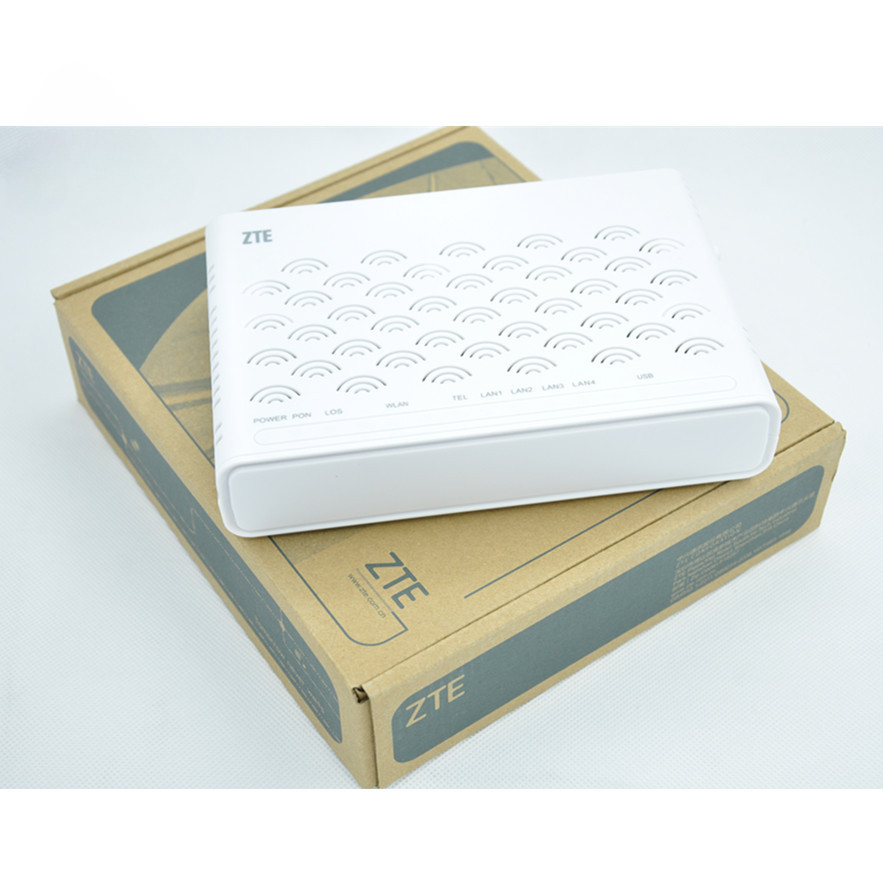

Description The ZXHN F660, a GPON optical network terminal (ONT) for home users, is designed for the fiber to the home (FTTH) scenarios, supports desktop mounting and wall mounting. The ZXHN F660 complies with the ITU-T G.984 standard, provides 2.488 Gbps downlink and 1.244 Gbps uplink at network side, and provides 4GE ports(four 10/100/1000M network interfaces ), one Phone ports, one 802.11b/g/n(2*2 @2.4GHz) Wi-Fi interface with two External antennas, one USB port at user side. Home users can easily access voice services, video services and many other kinds of high-speed broadband services by the ZXHN F660’s rich interfaces.

*Dimensions(W x D x H):240 mm x 200 mm x 58 mm
*Port:1POTS+4GE+USB+1Wi-Fi
*Average power consumption:11 W
*Operating environment:Temperature: -5℃~45℃;
*Humidity: 5%–95%, non-condensing
*Power supply:Adapter input: 100–240 V AC, 50–60Hz;
*Adapter output: 12 V DC, 1.5 A
*Weight:About 700g (including the power adapter)

1.Optical port (line terminal):
1 x GPON interface (SC/UPC)
2.User network interface:
4x10/100/1000 Base_T interfaces
Auto MDI/MDIX
1x POTS (VoIP) interfaces
1x WiFi interface: IEEE 802.11b/g/n
1x USB interfaces

F660 5.0 Version 4FE+2TEL+ 1USB +WIFI F660 6.0 Version 1GE+3FE+ 1TEL+ 1USB +WIFI F660 8.0 Version 1GE+3FE+1TEL+ 1USB +WIFI 5dbi external wifi
