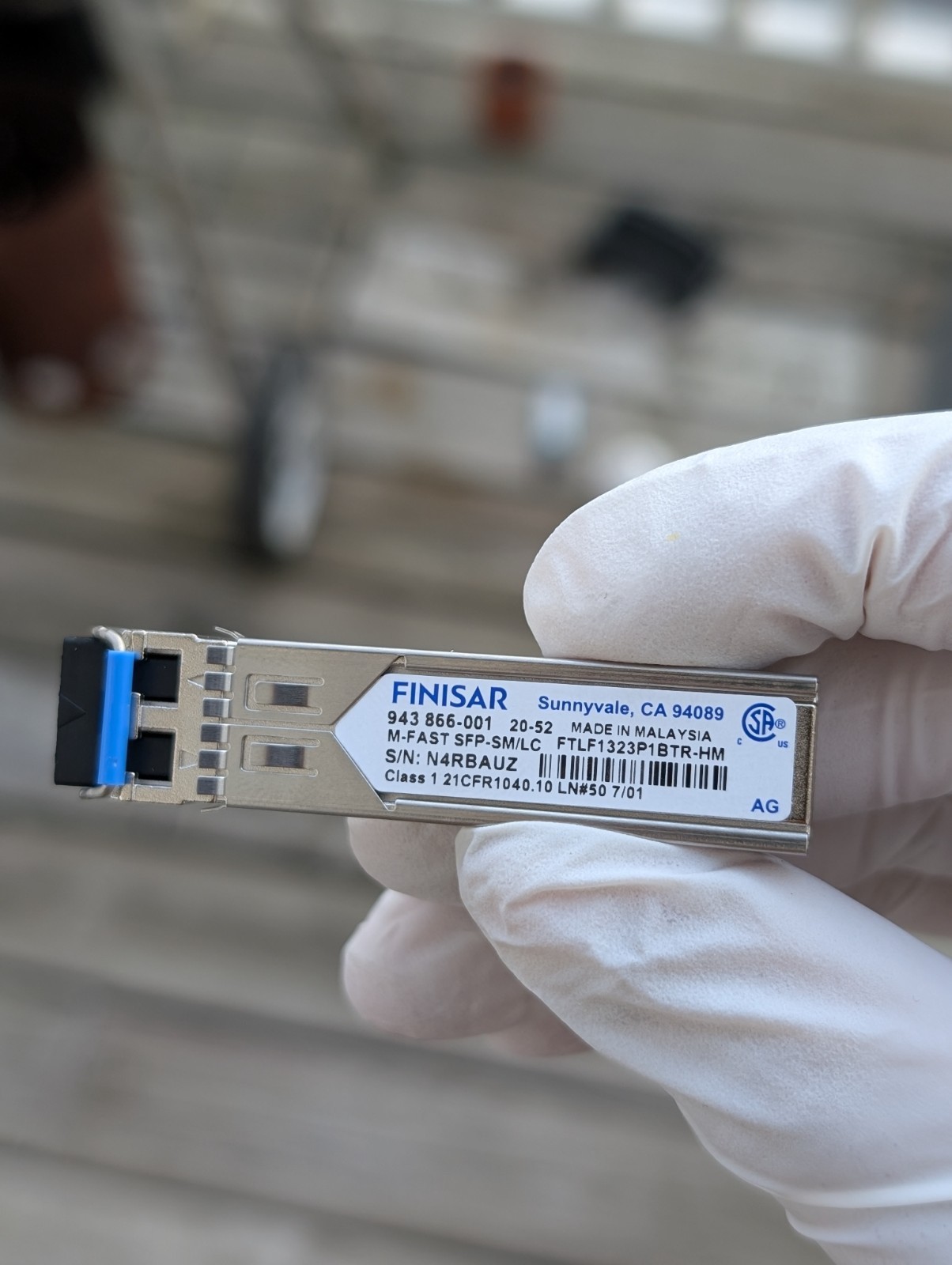

Product OverviewThe Hirschmann M-FAST SFP-SM/LC is a high-performance 100 Mbps singlemode fiber SFP module designed for industrial-grade media modules. Supporting distances up to 25 km, this compact transceiver offers a reliable and robust solution for long-distance fiber optic communication.Key Features & SpecificationsManufacturer: BeldenBrand: HirschmannModel: M-FAST SFP-SM/LCPart Number: 943 866-001Alternate Description: FTLF1323P1BTR-HMCountry of Origin: MalaysiaType: Fiber Media Converter (SFP Transceiver)UPC: 4002044222383UNSPSC Code: 43201553Technical SpecificationsPort Type: 100BASE-FXConnector: LCPort Count: 1Fiber Type: Singlemode (SM), 9/125 µmTransmission Distance: Up to 25 kmWavelength: 1310 nmLink Budget: 13 dB (A = 0.4 dB/km with 3 dB reserve)Bandwidth: B = 800 MHz x kmMounting: SFP SlotIP Rating: IP20Mechanical DurabilityShock Resistance:
IEC 60068-2-27 – 15g, 11 ms, 18 shocksVibration Resistance:
IEC 60068-2-61 mm, 2–13.2 Hz, 90 min0.7g, 13.2–100 Hz, 90 min3.5 mm, 3–9 Hz, 10 cycles1g, 9–150 Hz, 10 cyclesEMC ImmunityESD:
EN 61000-4-26 kV contact8 kV airElectromagnetic Field:
EN 61000-4-3 – 10 V/m (80–1000 MHz)Fast Transients (Burst):
EN 61000-4-42 kV (power line)1 kV (data line)Surge Protection:
EN 61000-4-52 kV (line/earth), 1 kV (line/line – power)1 kV (data line)Conducted Immunity:
EN 61000-4-63 V (10 kHz–150 kHz)10 V (150 kHz–80 MHz)Emissions Compliance:FCC CFR47 Part 15 Class AEN 55022 Class AImportant Notes for International BuyersBuyers outside of Canada/USA are responsible for any applicable customs duties, taxes, tariffs, or brokerage charges in their region.
