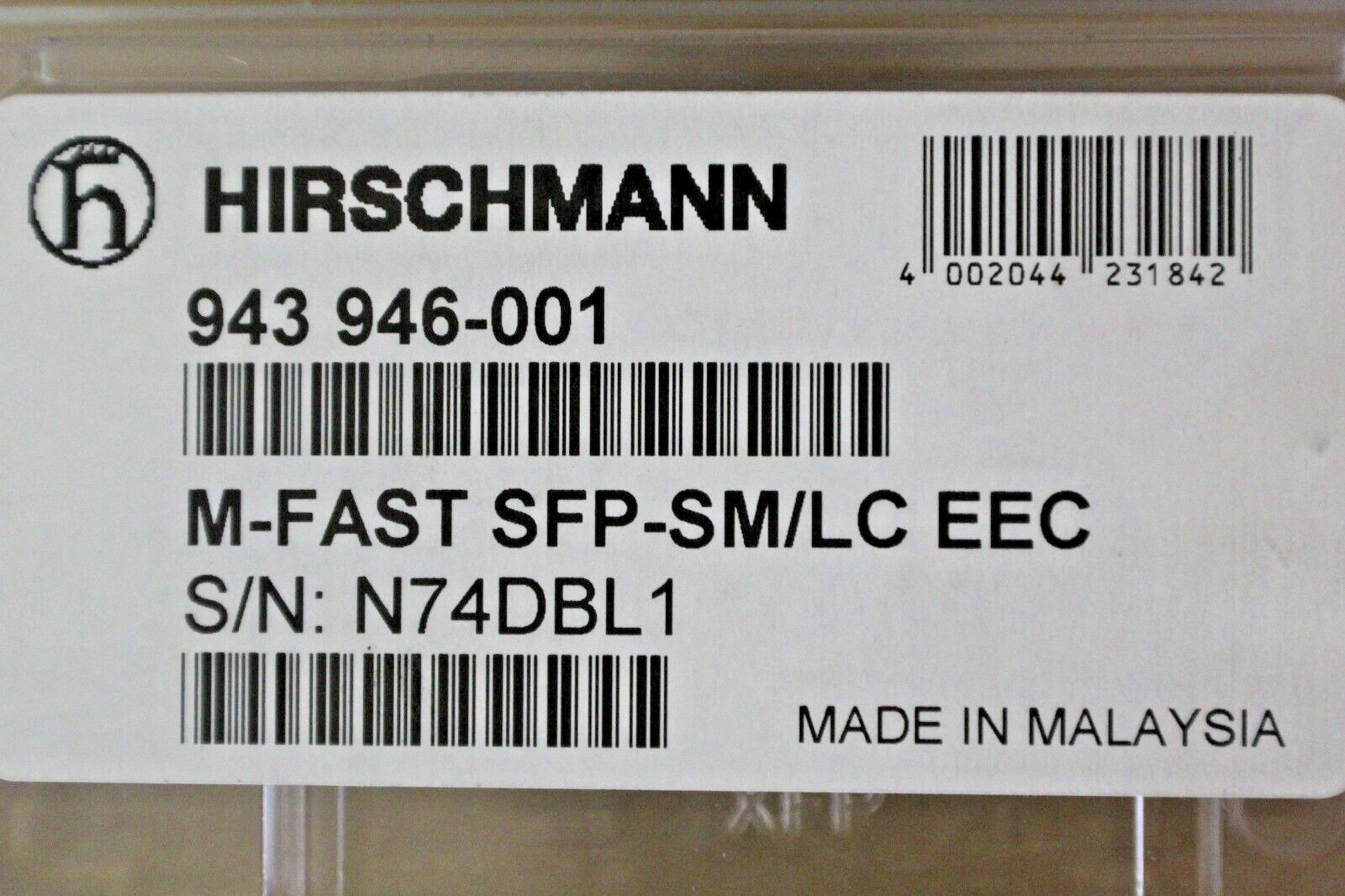

Hirschmann943 946-001 M-FAST SFP-SM/LC EEC SFP Fast-Ethernet Transceiver formedia module Part Desc.: FTLF1323P1BTR-HA

***NEW – UNOPENED BOX – NEVER USED - FACTORY SEALED ***

DESCRIPTION:

TheHirschmann M-FAST SFP-SM/LC EEC is a Fast Ethernet 100BASE-FXSingle-Mode (0-25 km) Fiberoptic Transceiver with LC connector

SPECIFICATIONS:

• Maker: Belden

• Brand: Hirschmann

• Model: M-FAST SFP-SM/LC

• Part Number: 943 946-001

• Country: Malaysia

• Type: Media Converter

• UPC: 4002044231842

• UNSPSC Code: 43201553

• Part Desc.: FTLF1323P1BTR-HA

• Port type: 100 BASE-FX with LC connector

• Port quantity: 1

• Single mode fiber (SM) 9/125 µm:

  • 0 - 25 km 0 - 13 dB link budget at 1310nm

    • A = 0.4 dB/km, 3 dB Reserve,

    • B = 800 MHz x km

• Mounting: SFP slot

• Protection class: IP 20

• Mechanical stability:

  • IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks

  • IEC 60068-2-6 vibration:

    • 1 mm, 2 Hz - 13,2 Hz, 90 min.;

    • 0,7g, 13,2 Hz - 100 Hz, 90 min.;

    • 3,5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.;

    • 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

• EMC interference immunity:

  • EN 61000-4-2 electrostatic discharge (ESD)

    • 6 kV contact discharge

    • 8 kV air discharge

  • EN 61000-4-3 electromagnetic field:

    • 10 V/m (80 - 1000 MHz)

  • EN 61000-4-4 fast transients (burst):

    • 2 kV power line

    • 1 kV data line

  • EN 61000-4-5 surge voltage:

    • power line:

      • 2 kV (line/earth)

      • 1 kV (line/line)

      • 1kV data line

  • EN 61000-4-6 conducted immunity:

    • 3 V (10 kHz - 150 kHz)

    • 10 V (150 kHz - 80 MHz)

• EMC emitted immunity:

  • FCC CFR47 Part 15 Class A

  • EN 55022 Class A
