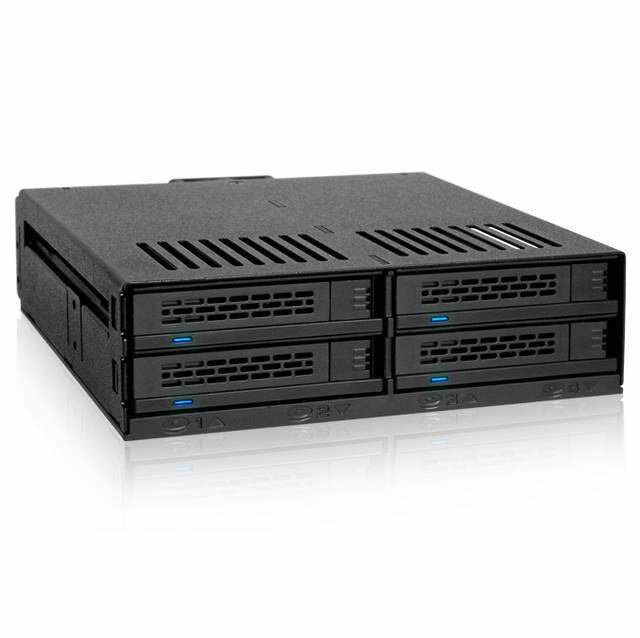

• Supports up to 4 x 2.5" SATA/SAS HDDs or SSDs into a single 5.25" bay • Compatible with SATA 6Gbps or SAS 3.0 12Gbps (Single channel) • Hot-swappable bays for quick and convenient drive replacement • Accommodates 2.5" drives with 5mm, 7mm, 9.5mm, and 12.5mm Height • Active Power Technology (APT) - only powers up if there is drive installed in the drive bay • ExpressTray system: tool-less, removable trays designed for easy installation while maintaining the stability of tray-based designs • Optional bottom-mounted screw holes for enhanced drive stability • Individual blue LED indicators for each bay • User-upgradeable 40mm fan for effective drive cooling • Supports both 2-pin and 3-pin fan connectors for aftermarket fan upgrades • Single 15-pin SATA power connector powers all four drives • Locking latch design for both 7-pin SATA connector and 15-pin power connectors to ensure secure connections • Three-speed fan control: High / Low / Off • Durable metal enclosure with heavy-duty ABS trays and door latches • Ideal for power users, system builders, and applications requiring space-efficient 2.5" hot-swap storage solutions
Model Number： MB324SP-1BColor： BlackSupport Drive Size： 2.5" SSD / HDDCompatible Drive Type： SATA / single channel SAS (SAS host required)Number of Drives： 4Max Drive Height： 12.5mmDrive Bay： 1 x 5.25" half height drive bayHost Interface： 4 x SATA 7pinPower Input： 1 x 15 pin SATA power connectorTransfer Rate： SATA 3.0 up to 6Gbps / SAS 3.0 up to 12GbpsSupport HDD Capacity： No limitationDrive Cooling： 1 x 40mm fanRAID Function： N/AStructure / Material： Metal with partial plasticSupport Hot-Swap： YesDrive Security ： N/AProduct Dimension (L x W x H)： 140.5 x 145.8 x 41.3mmDrive Activity LED Indication： Drive power: solid blue; Drive access: flashing bluePackage Contents： 1 - Device, 1 - user manual, 18 - screwSATA Connector Insertion Rate： 10,000Humidity： 5%~65% RHOperating Temperature： 0°C to 60°C (32°F to 140°F)Storage Temperature： -35°C to 70°C (-31°F to 158°F)
