Features

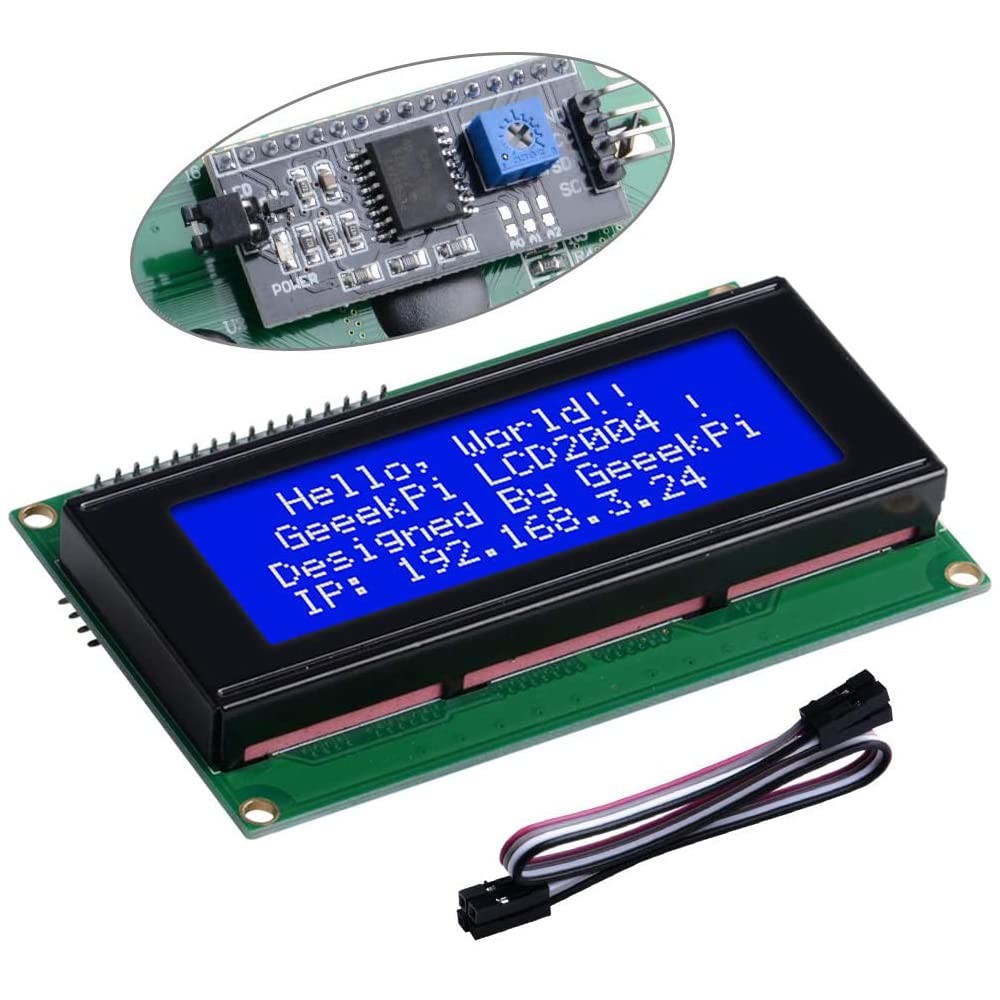

20 Characters * 4 Lines, Character LCD module
Blue Backlight
5V for Logic Circuit
Low power consumption
Support I2C protocol
Easy to use
Compatible with Raspberry Pi, banana Pi, Tinker Board, STM32, ESP32 etc.
Type: Chip On Board
Number of Data line: 8-bit parallel Package Includes:
1 x LCD2004
1 x Jumpwire Technology Support: LCD has always been a device that acts as a window in human-computer interaction. For example, the prompt window on some instrument devices, the temperature and humidity prompt box, the device running status monitor, and the prompt screen of the counting device all have LCD figures.
The common LCD1602, LCD2004, and LCD12864 are fabricated using liquid crystal materials and communicated using the I2C bus.
It is a high-performance serial bus with bus rules and high-speed or low-speed device synchronization required for multi-master systems. The I2C bus has only two offerirectional signal lines, a serial data line (SDA) and a serial clock line (SCL).
Compatible with all devices with I2C interfaces, such as Arduino, raspberry pi, beagle bone black, tinker board, stm32, esp32 and more.
Package Includes:1 x LCD2004,1 x Jumpwire
