SFF ITX GPU Cooling Modified ITX Short Single-Fan GPU Cooler For P106-106 6G | 9.4cm Width | Quiet Auto-Speed Fan Why Buy This ✓ Compact ITX Size — 9.4cm width, 17.5cm length, fits SFF & A4 cases ✓ 3 Heatsink Options — different thermal performance for different build needs ✓ Full VRAM Coverage — extra heat fins for stable memory temperature ✓ Quiet Auto Fan — silent operation, automatic RPM based on temperature Product Overview

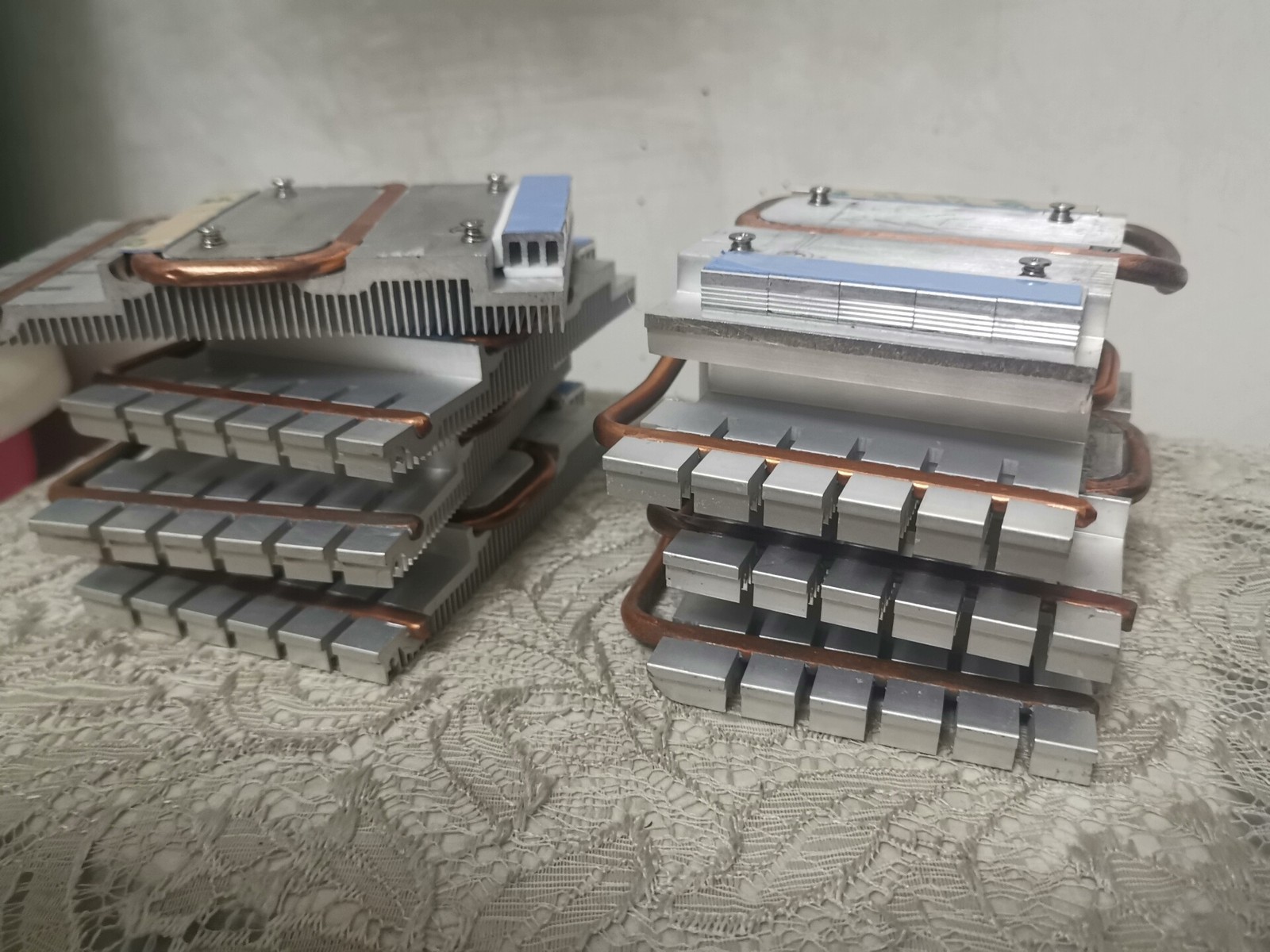

A modified ITX-form-factor single-fan GPU cooler designed for P106-106 6G and similar short graphics cards. It reduces total card length to around 17.5cm and housing width to 9.4cm, making it ideal for small form factor builds, A4 chassis and compact ITX systems.
Three heatsink configurations are available to balance between size and thermal performance. All versions feature a quiet cooling fan with automatic speed control, full VRAM heat dissipation and a polished contact base for optimal GPU thermal transfer.
Key Features
- 3 heatsink variants available for different thermal needs and case clearance
- 9.4cm wide housing, ~17.5cm total installed length, fits most ITX / SFF cases
- Quiet single fan with automatic speed control, low noise during daily operation
- Full VRAM coverage with extra heat fins for stable memory temperature under load
- Polished cooler base for tighter GPU contact and improved heat conduction
- Optional reinforced plastic backplate available for PCB protection
- Compatible with single-slot PCIe brackets and flex ribbon riser cables
- Suitable for A4, 5L and most small form factor PC builds
Specifications Item Detail Form Factor ITX / SFF short form Housing Width 9.4cm Installed Length Approx. 17.5cm Fan Single quiet fan, automatic speed control VRAM Cooling Full coverage with extra heat fins Contact Base Polished surface for optimal heat transfer Compatible GPU P106-106 6G and similar sized cards IO Shield 19-slot bracket included Optional Accessory Reinforced plastic backplate Three Heatsink Options Variant Dimensions (H×W×D) Thermal Design Load Temp (30°C ambient) Option 1 — Standard Height 17.2 × 11 × 4.3cm
0.3cm thinner without backplate Dual heat pipe (trimmed) / aluminum block
Two variants shipped randomly ~85°C
FurMark full load Option 2 — Full Pipe Height 18.8 × 12 × 4.3cm
0.3cm thinner without backplate Full dual heat pipes reversed
Only fins trimmed, pipes intact ~68°C
~15°C cooler than Option 1 Option 3 — Premium Short Compact short dual-pipe design Short dual-heatpipe layout
Recommended for 30HX builds Balanced performance
Size & cooling optimized Version Highlights
- Version A: Full VRAM coverage with an additional heat dissipation fin strip
- Version B: Vented housing matches new IO shield, includes 19-piece sticker set
- Version C: Polished cooler base for tighter GPU contact and improved temperature control
⚠ Important Notes:
1. This is a DIY modified cooler. Painting and finishing are handcrafted; minor cosmetic imperfections may exist.
2. Trimming heat pipes will raise operating temperatures by 5–10°C. Keeping pipes intact is recommended if space allows.
3. Modified products carry no manufacturer warranty. Returns are only accepted for DOA / confirmed functional defects.
4. Please confirm your case dimensions and GPU compatibility before ordering.
5. Housing-only option is available, including housing and 19-piece sticker set only. Package Includes
- 1 × Modified ITX GPU cooler assembly (selected variant)
- 1 × IO shield bracket
- Sticker set included
- Optional reinforced plastic backplate (selected at extra cost)
Warranty & Returns Quality Check Every unit tested before dispatch Warranty No manufacturer warranty. DOA coverage only Returns Accepted only for confirmed functional defects Shipping
- Dispatched within 1–3 business days after payment cleared
- Tracking number provided for every order
- Standard & expedited shipping options at checkout
- International shipping via Global Shipping Program
Why Buy From Us
- Pre-shipment inspection — every cooler checked for fit and finish
- Fast response — message us anytime, reply within 24 hours
- Transparent listing — clear specifications, no hidden details
- Technical support — help with compatibility and installation guidance
FAQ
Q: Will this fit my A4 ITX case?
A: With 9.4cm width and ~17.5cm length, it fits most A4, 5L and standard ITX cases. Please measure your clearance first.
Q: Can I trim the heat pipes myself?
A: Trimming is possible but will raise load temperatures by 5–10°C. Keeping pipes intact is strongly recommended if space allows.
Q: Does it come with thermal paste?
A: Thermal paste is not included. Standard GPU thermal paste is required for installation.
Q: Is the backplate included?
A: Backplate is optional at extra cost. Standard package includes cooler assembly and IO shield only.
Need a specific variant or have compatibility questions? Message us before ordering — we reply fast.
