Icron 2301 USB 2.0 Ranger 2301 Single Port CAT 5e-6-7 100 Meter USB Extender
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

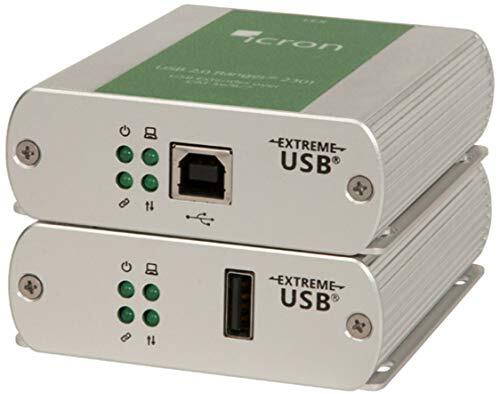

Icron 2301 USB 2.0 Ranger 2301 Single Port CAT 5e-6-7 100 Meter USB Extender
Price: US $479.95
Icron 2301 USB 2.0 Ranger 2301 Single Port CAT 5e-6-7 100 Meter USB Extender

The Icron USB 2.0 Ranger 2301 extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 cabling. This 1-port USB 2.0 extender with Extreme USB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

The USB 2.0 Ranger 2301 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This 1-port USB 2.0 extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows, macOS, and Linux

Additionally, this Extreme USB based 1-port USB 2.0 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Key Features

  • USB 2.0 throughput up to 480Mbps
  • Supplies up to 1 Amp to USB port
  • Operates with all USB controllers
  • Mass Storage Acceleration
  • FCC/CE Class B
  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows, macOS, Linux and Chrome OS

Technical Specifications

RangeDirect ConnectUp to 100m (330 ft) over solid core CAT 5e/6/7USB Device SupportMaximum USB 2.0 ThroughputUp to 480MbpsMaximum USB 1.1 ThroughputUp to 12MbpsTraffic TypesAll USB 2.0 and 1.1 Traffic TypesDevice TypesAll USB 2.0 and 1.1 Device TypesLEX (Local Extender)USB Connector1x USB Type B ReceptacleLink Connector1x RJ45Dimensions86.0 x 75.0 x 26.0mm (3.4 x 3.0 x 1.0”)Enclosure MaterialSilver Anodized AluminumREX (Remote Extender)USB Connector1x USB Type A ReceptacleLink Connector1x RJ45Dimensions86.0 x 75.0 x 26.0mm (3.4 x 3.0 x 1.0”)Enclosure MaterialSilver Anodized AluminumAvailable CurrentUp to 1 Amp to USB portPower Supply100-240V AC Input, 5V 3A DC OutputEnvironmentalOperating Temperature0C to 50C (32F to 122F)Storage Temperature-20C to 70C (-4F to 158F)Operating Humidity20% to 80% relative humidity, non-condensingStorage Humidity10% to 90% relative humidity, non-condensingComplianceEMCFCC (Class B), CE (Class B)EnvironmentalRoHS2 (CE)Item IncludesLocal Extender (LEX)Remote Extender (REX)2-meter USB cableQuick Start GuideInternational power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)Warranty2 Year Warranty
