Icy Dock CP115 Drive Enclosure U.2, PCI Express NVMe 4.0 x4 - PCI Express 4.0 x4 Host Interface Internal - Black (mb111vp-b) Icy Dock CP115 Drive Enclosure U.2, PCI Express NVMe 4.0 x4 - PCI Express 4.0 x4 Host Interface Internal - Black (mb111vp-b)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: U.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack for PCIe Expansion Slot User Manual Screws
Product Description
This item is brand-new, factory sealed.

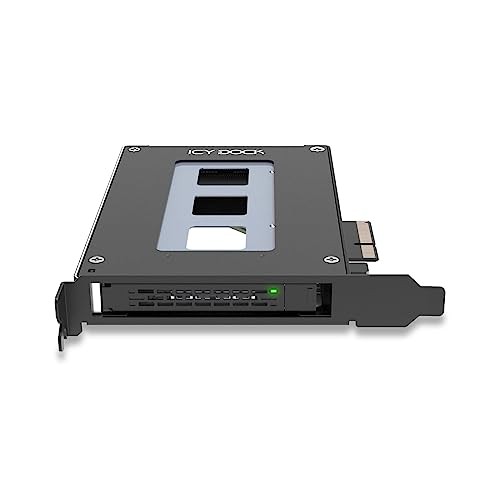

ExpressSlot Elite MB111VP-B
Removable 2.5" U.2/U.3 NVMe SSD (7mm) to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot
Meet the ExpressSlot Elite MB111VP-B, a rugged and removable U.2/U.3 NVMe SSD enclosure designed to fit into a PCIe slot, supporting U.2/U.3 NVMe SSDs up to a height of 7mm. With the ability to fit into a single PCIe x4 expansion slot, this innovative drive mobile rack allows for easy removal of U.2/U.3 NVMe SSDs from the PCIe slot while minimizing the clutter from data and power cables.
Drive Swapping Made Simple
Say goodbye to complex drive-swapping procedures with the ExpressSlot Elite MB111VP-B. Equipped with a removable drive tray and supporting hot-plug functionality for U.2/U.3 NVMe drives, the MB111VP-B allows you to effortlessly add or remove drives in seconds without needing to power down or open the case. Furthermore, the SFF-8639 connector is rated for 10,000 insertion/removal cycles, allowing for longer-term usage with the system. *See FAQ for Hot-plug support.
Unleash PCIe Storage Potential
Unlock the full potential of your desktop computers storage capabilities with the ExpressSlot Elite MB111VP-B by utilizing your unused PCIe expansion slots. This storage solution allows adding a U.2/U.3 NVMe drive to your system, effectively exceeding your computers usual drive limitations. In addition, with the PCIe interface, you can take advantage of fast transfer speeds of up to 64Gbps.
Designed to fit the PCIe x4 card slot, the MB111VP-B is also compatible with PCIe x8 and x16 full-length PCIe slots, providing you with added flexibility and versatility. Color :
Black Support Drive Size :
2.5" (supports only 7mm height U.2/U.3 SSDs) Compatible Drive Type :
U.2/U.3 Number of Drives :
1 Drive Bay :
1 x FHHL PCIe expansion slot Host Interface :
PCIe 4.0 x4 Power Input :
via PCIe gold finger Transfer Rate :
Up to 64Gbps Drive Cooling :
Metal heat dispersion with passive cooling Structure / Material :
Metal with partial ABS plastic Hot-Plug :
Yes Drive Activity LED Indication :
Drive power : solid green, Drive access : flashing green Package Contents :
Device, user manual, screws SFF-8639 Connector Insertion Rate :
10,000 Humidity :
5% to 65% RH Operating Temperature :
0oC to 60oC (32oF to 140oF) Storage Temperature :
-35oC to 70oC (-31oF to 158oF) Compliance :
CE, RoHS, REACHItem Dimension (L inchxW inchxH inch)
16 x 12 x 14
Weight
20.00 lb
Warranty Information
3 years SpecificationPhysical CharacteristicsProduct Material
- U.2
- PCI Express NVMe 4.0 x4
General InformationBrand NameIcy DockMarketing Information The concept product CP115 is a removable U.2 (2.5") NVMe SSD enclosure for PCIe x4, x8 x16 expansion slot, allowing you to add additional U.2 NVMe SSD in a compact space while achieving full PCIe 4.0 transfer speeds up to 64Gbps. The CP115 supports 1 x U.2 NVMe SSD up to 9.5mm height and features an innovative removable drive tray for effortless drive access. The full metal removable drive tray system allows users to quickly install or remove the drive without opening the computer case while offering excellent protection to the U.2 NVMe SSD. Utilizing the PCIe 4.0 x4 interface provides power and data transfer simultaneously, ultimately reducing cable clutter in the system and supporting blazing-fast transfer speed up to 64Gbps. The CP115 has large ventilation holes on both sides of the enclosure that works with computer's cooling system to keep your U.2 NVMe SSD at optimal operating temperatures. Product TypeDrive EnclosureProduct NameU.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack for PCIe Expansion SlotManufacturerIcy DockManufacturer Part NumberMB111VP-BProduct ModelCP115TitleProduct TitleIcy Dock CP115 Drive Enclosure U.2, PCI Express NVMe 4.0 x4 - PCI Express 4.0 x4 Host Interface Internal - Black (MB111VPB)Technical InformationMaximum Data Transfer Rate64 Gbit/sNumber of Solid State Drive Installed0Number of Solid State Drive Supported1 Shipping
