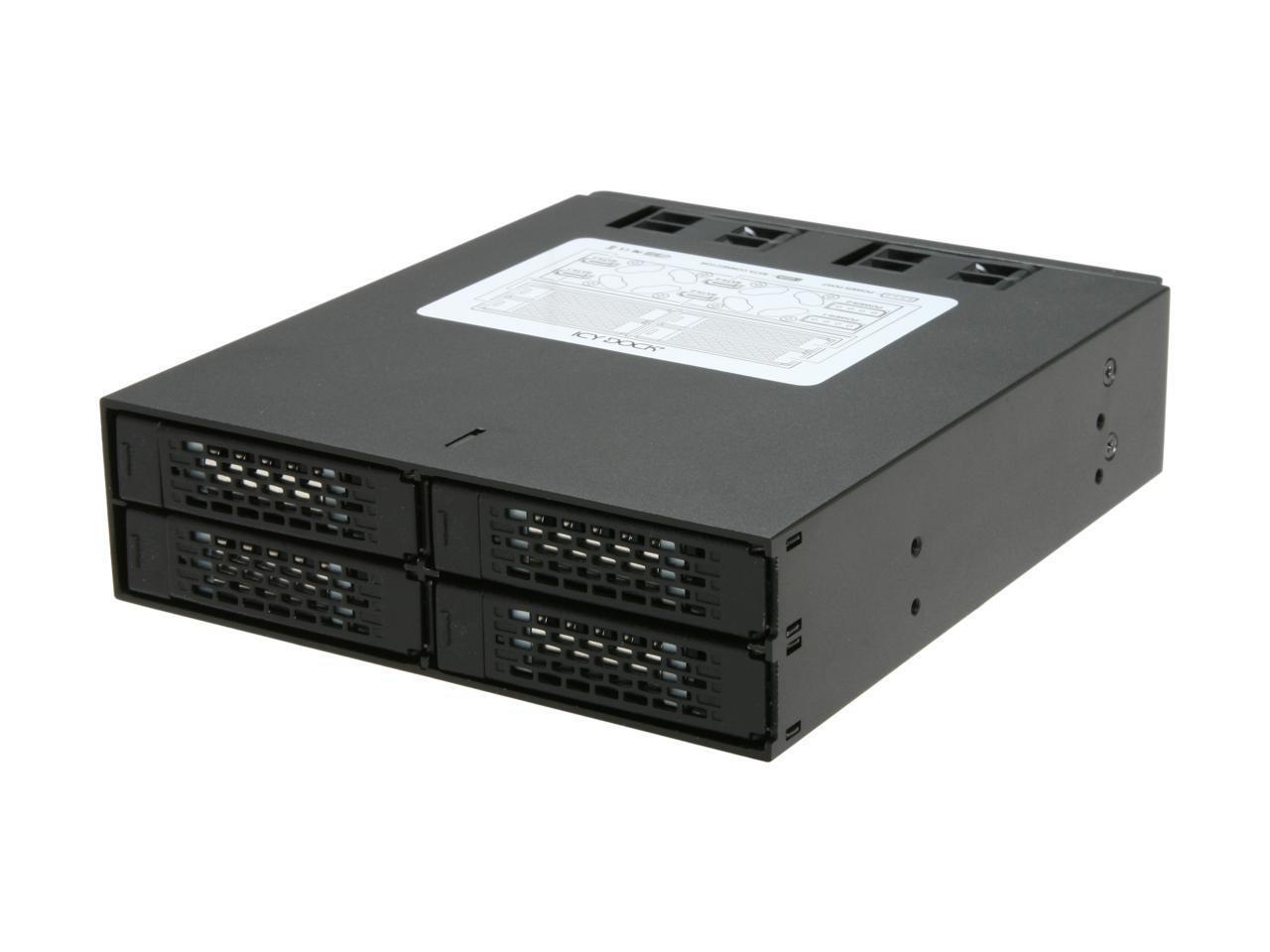

ICY DOCK 4 x 2.5 Inch SATA 6Gbps/SAS HDD/SSD Mobile Rack / Cage in 1 x 5.25 MB994SP-4S 4x2.5" SAS/SATA HDD Hot Swap Mobile RackVideoOverview

Introducing the Icy Dock ToughArmor Series MB994SP-4S Quad Bay 2.5" SAS / SATA SSD & Hard Drive Hot Swap Mobile Rack Cage for use in a single 5.25" device bay. This product is constructed of heavy duty metal to hold up in the toughest of conditions. It includes ventilation slots on the front & back for maximum airflow to keep both SATA and SAS drives running cool, and an LED is placed on the front of each drive tray to give the user drive status at all times. Dual 4-pin power connectors are used to ensure a consistent power supply to all four drives, whether they are low power SSD's or power hungry 15,000RPM SAS drives. Also included are dual 40mm cooling fans to keep the drives running in at optimal temperatures in even the most intense applications. This is a device commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies.

The MB994SP-4S is constructed of full metal to hold up in the toughest of conditions. It includes ventilation slots on the front and back for maximum airflow to keep your drives running cool, and an LED is placed on the front of each drive tray to give the user drive status at all times. The ToughArmor's full metal design is also perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to already comply with flammability requirements.

The MB994SP-4S utilizes our brand new EZ Slide Mini Trays, making drive interchangeability and maintenance completely hassle free. The trays are built using full metal so that they are durable for many lifetimes, but will not weigh you down when transporting your data from system to system. And featuring a full cage design, the added top drive cover provides added protection while moving the drive. The trays are also designed to accommodate 7mm, 9.5mm, 12.5mm, and 15mm drives giving you the ultimate universal 2.5" hot swap bay.

Utilizing its small form factor, The MB994SP-4S is perfect for use in industrial PCs, servers, or any small form factor case where 5.25" bays are limited and large drive capacity is needed, especially compact RAID 5 systems. It is built to function in the most demanding environments including military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems. The heavy metal design makes it ideal for placement in rugged environments.

Key Features

• Heavy duty full metal construction with commercially designed for: Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies.
• Perfect for rugged applications and complies to flammability requirements.
• Fits 4 x 2.5" SATA I / II / III and SAS HDD/SSD.
• Accommodates 2.5 Drives with 7mm, 9mm, 12.5mm & 15mm Height.
• Fits 4 Drives into a Single 5.25" Device Bay.
• Status LED on Front for Each Drive.
• Full Metal EZ Slide Mini Tray System with Full Cage Design.
• Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases.
• Dual 40mm Cooling Fans.
• Heavy Duty Full Metal Construction.
• Support SATA 6Gbps.
• Active Power Technology – Device only power up if there are drive installed.
• Top Cover for the Tray Adds Extra Drive Number:MB994SP-4SColor:Matt BlackHost Interface:4 x 7-pin SATADrive Fit:4 x 2.5" SAS or SATA I / II / III HDD / SSDDrive Bay:Single 5.25" half height device bayTransfer Rate:Up to 6 Gbps (depending on hard drive speed)Power Input:2 x 4-pin Molex power portInsert & Extract connection Via:Direct SAS / SATA hard drive connectionStructure:Aluminum & SECCDrive Cooling:40mm Rear cooling fan x 2 & metal heat dispersionLED Indication:Device Power & Drive ActivityLED Display Color:Green: Device Power; Amber: Drive ActivityDimensions (L x W x H):6.7 x 5.75 x 1.63"Weight:1.77 of 2.5" HDD/SSD Supported11224446Supports 2.5" SATA HDD/SSDSupports 2.5" SAS HDD/SSDSupports SATA 6GbpsSupports SAS Dual ChannelSupports 1 x Slim ODD Drive7 - 9.5mm Drive Height 12.5 - 15mm Drive Height Fits in 3.5" Floppy BayFits in 5.25" Device BayLock on Each Drive TrayUL ListedFull Metal ConstructionDesigned for EnterpriseHot SwappableActive Power Technology (APT)
  Learn more about ICY DOCK MB994SP-4SModelBrandICY Rack Drives SupportMulti 2.5" Drives to 5.25" BayMobile Rack InterfaceSATA I/II/III/SASSpecificationsColor: Matt BlackHost Interface: 7 pin SATA x 4Drive Fit: 2.5" SAS or SATA I /II/III HDD / SSD x 4Drive Bay: 5.25" Bay x 1Transfer Rate: Up to 6 Gb/sec. (depending on hard drive speed)Insert& Extract conection Via: 15 pin direct hard drive connectionStructure: SECCDrive Cooling: 40mm rear cooling fan x 2 & metal heat dispersionLED Indication: Device Power & Drive ActivityLED Display Color: Green - Device Power ; Amber - Drive ActivityDimension (L x W x H): 6.70" x 5.75" x 1.63"Weight: 1.77 lbs.FeaturesFeaturesFits 4 x 2.5" SATA I / II / III and SAS HDD/SSD.Support SATA 6Gbps.Accommodates Drives with up to 15mm Height.*Fits 4 Drives into a Single 5.25" Device Bay.Status LED on Front for Each Drive.Full Metal EZ Slide Mini Tray System with Full Cage Design.Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases.Front, Rear, Top, and Bottom Ventilation Slots.Dual 40mm Cooling Fans.Heavy Duty Full Metal Construction.Top Cover for the Tray Adds Extra Drive Protection.Manufacturer WarrantyParts3 years limitedLabor3 years limitedShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy.Frooition www.frooition.com | No-js Template | design, store design, shop design, template design, listing design (ver:froo_no_js)This listing is currently undergoing maintenance, we apologise for any inconvenience caused.
