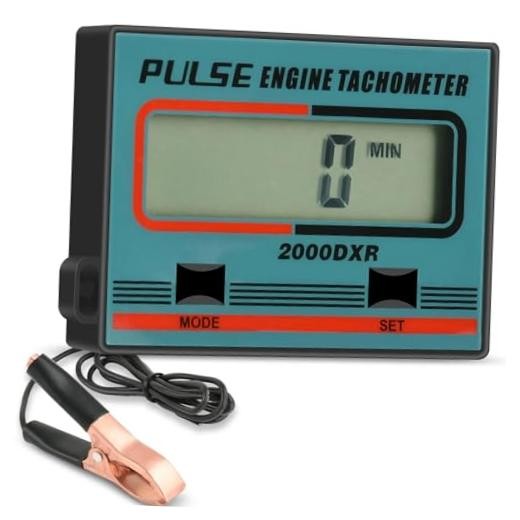

Digital RPM Meter Induction Pulse Tachometer Hour Meter for Small Engines - Chainsaws, Lawn Mowers, Motorcycles (Blue) Product description Small engine tachometer rpm: Inductive tach gauge features LCD display, low voltage design, built-in battery power supply mode, inductive design, safe and reliable. Measuring range is 100-30000 RPM, suitable for any 2-stroke or 4-stroke gasoline engines.
A variety of measurement methods: After one end of the electronic wire is installed on the electronic watch cg, use a metal clip to clamp it on the spark plug wire sheath for inductive measurement; the electronic wire is bundled on the spark plug wire sheath and wound for a few times to sense and measure; handheld the digital tachometer measures 3 cm to 5 cm near the sheath of the spark plug wire.
Timing range: The tachometer for small engines, timing range is 1 minute to 99999 (min MIN). Speed mode setting: long press (SET) key, the screen will display 01, 02, 03, 04 in sequence; (screen 01, 02, 03, display the speed mode corresponding to various engine strokes) The factory default value is 02 Speed mode. Releg the button with your finger will flash the displayed data for 3 to 5 seconds and then confirm the start of the speed mode, and then you can measure.
Shut down: Hold down the (SET) key, the screen will display 01, 02, 03, 04 in sequence; when the screen displays 04, it will flash for 3 to 5 seconds. After stopping, confirm to start the system reset mode, and press the (MODE) key at the same time Press and (SET) until the full screen is displayed (the recorded working time and speed data are cleared). Long press (MODE) key to view historical high speed data.
Wide applications: The digital tachometer gauge is applicable to all: gasoline (engines, chainsaws, lawn mowers, gliders, motorcycles, automobiles, karts, engineering vehicles, snowmobiles, ATVs, motor boats, grinders, generators, Vibration machine) mechanical equipment and so on!
