Keep your fiber network running clean, fast, and reliable — even in harsh industrial conditions.

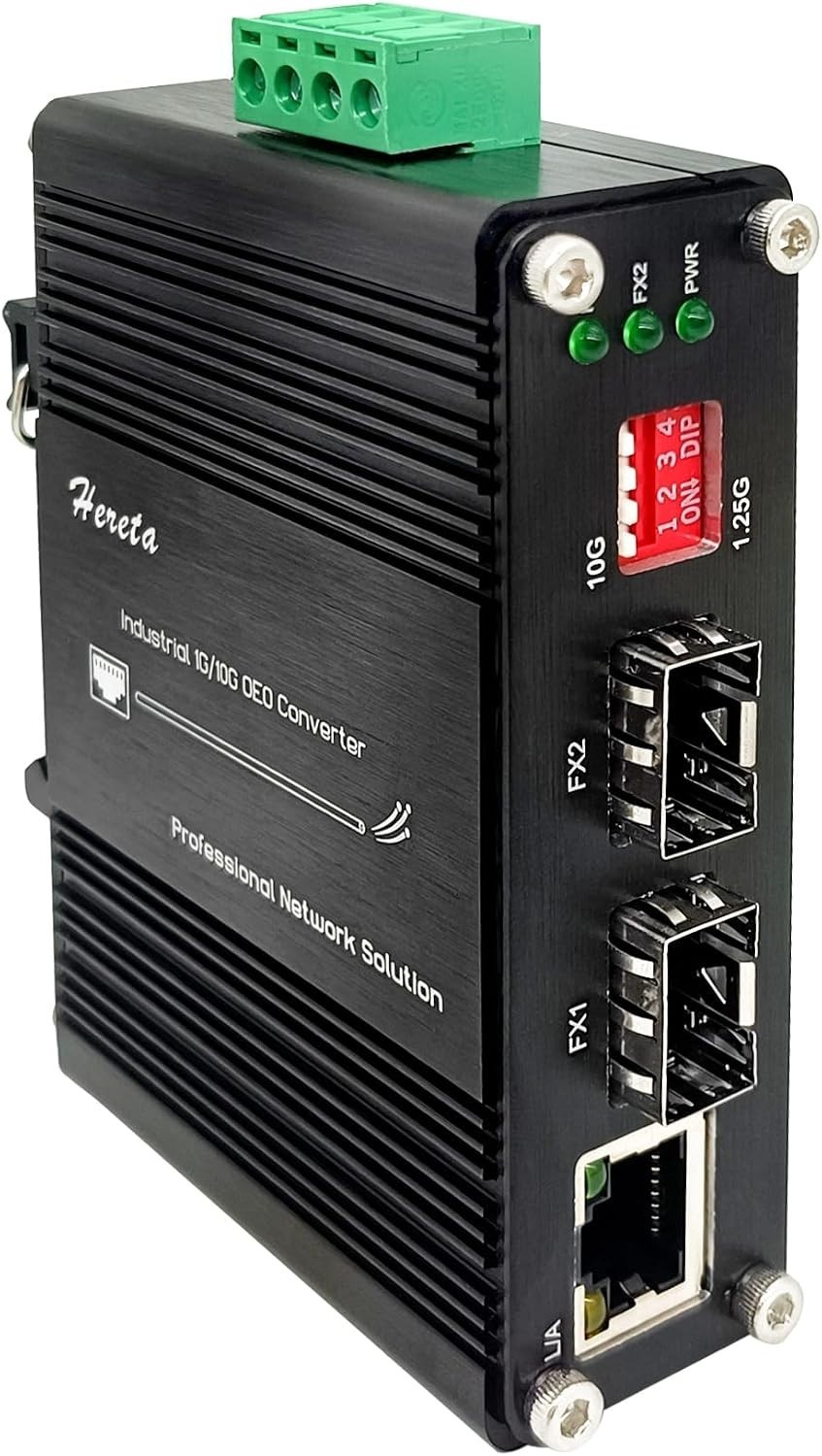

This Industrial 10G OEO Fiber Extender regenerates, reshapes, and retimes optical signals to eliminate signal loss over long-distance or noisy fiber runs, giving you dependable 1G/10G Ethernet performance where standard converters fall short.
Key Features:
- 3R repeater function actively regenerates optical signals for clean, low-latency transmission
- DIP switch lets you manually select 1.25G or 10G fiber data rates on the fly
- Functions as a fiber-to-copper media converter when only fiber and RJ45 ports are used
- Hot-pluggable SFP+ ports for easy servicing without network downtime
- Built for harsh environments — rated IP40 and operates from -40°F to 176°F
Specs:
- Ports: 2x open SFP+ + 1x RJ45
- Data rate: 1G/10G switchable
- Power: 12–48V DC input
- Mounting: DIN-rail or wall-mount
- Max range: up to 120km with compatible SFP+ modules
- Rating: IP40 industrial enclosure
Condition:
Brand new, factory sealed, never installed
Product descriptionIndustrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function
ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80℃. It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.
Features:
► Transparent Transport and very low delay
► 3R function (Regeneration, Reshaping, Re-timing)
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► Support Loop-back and Jumbo Frame
► DIP Switch supports 1.25G/10G fiber data rate switching
► Can be as 1G Ethernet Media Converter if using Ethernet
► IP40 Aluminum Case
► Supports DIN-Rail/Wall-Mount installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Specifications:
- Equipment function: 3R Repeater (Regeneration, Reshaping, Re-timing)
- Protocols: 8.5G Fiber Channel/ SONET OC-192, SDH STM-64 (9.95Gbps)/ 10G WAN (10Gbps)/10G LAN (10.31Gbps)/ OTN OTU-2 (G.709) (10.70Gbps)/ 10G LAN with 255/237 FEC coding (11.09Gbps)/ 10G Fiber Channel (11.32Gbps)/ 10G POS
- Standards: IEEE 802.3 10BASE-T/ IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T/ IEEE 802.3z, 1000BASE-SX/LX/ IEEE 802.3x Full-duplex flow control
Setup/ Installation
The media converter can be installed on a DIN rail or Wall Mount Installation
- Choose the SFP+ module according to requirement and plug into the SFP slots of the OEO Converter.
- Connect the fiber cable from the device (media converter or switch) on the other end to the SFP+ port of the OEO converter.
- After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.
- After all cables are correctly connected, the indicators will be lit as per port status LEDs.
DIP Switch
- Can manually switch the transmission rate
- Supports 1.25G/10G fiber optic data rate switching
- Hot plugging, loop-back,Jumbo Frame,full state led display available
Industrial Grade Quality
- Made of Dustproof, Close Design IP40 and Rugged High-strength Aluminium Alloy Case
- Work in Operating Temperature -40°C to 80°C (-40°F to 176°F)
- With Lightning Protection
- Can be Used in Wide Range of Scenarios,such as Manufacturing,Traffic,Smart City,etc.
