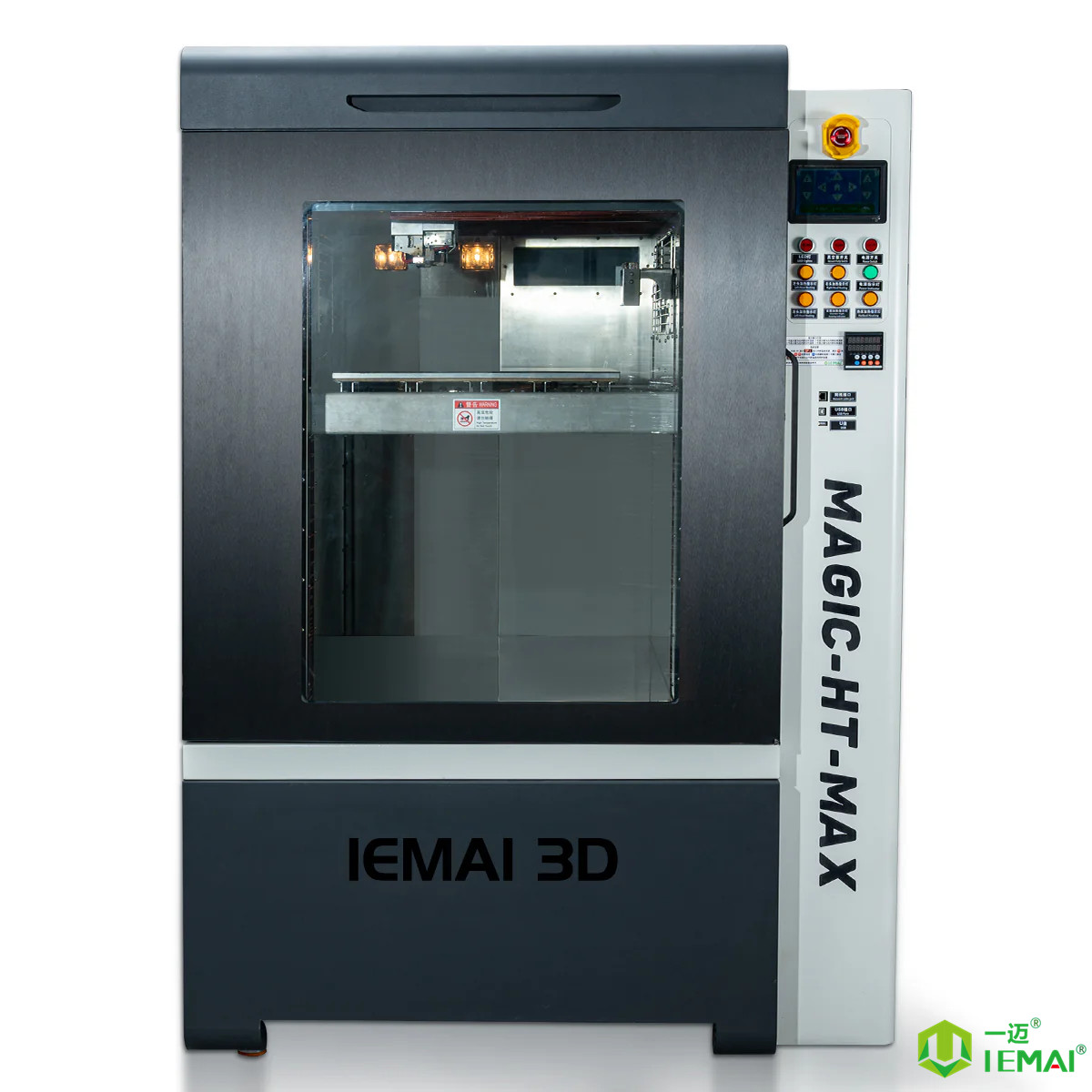

Industrial PEEK/PEI 3D Printer – Large-Format High-Temperature Production System

This industrial high-temperature 3D printer is designed specifically for large-format production of PEEK, PEI (ULTEM), and other high-performance engineering polymers.
With a 500°C dual-nozzle extrusion system and a fully enclosed 150°C heated chamber, the machine delivers the thermal stability required for consistent crystallization, strong interlayer bonding, and repeatable mechanical performance in demanding production environments.

The 500 × 500 × 700 mm build volume enables fabrication of large structural parts, tooling, fixtures, and end-use components that cannot be produced reliably on standard high-temperature FDM systems.

🔧 Key Capabilities

• 500°C Dual-Nozzle High-Temperature Extrusion

  • Modular dual-nozzle system with independent lifting

  • Liquid-cooled print head with air-cooled part cooling

• 150°C Fully Enclosed Heated Chamber

  • Designed for stable printing of semi-crystalline polymers

  • Suitable for large PEEK and PEI parts requiring controlled thermal environments

• Large-Format Build Volume

  • 500 × 500 × 700 mm

  • Ideal for industrial tooling, jigs, fixtures, and functional end-use parts

• Vacuum Adsorption Heated Bed

  • Heated up to 200°C

  • Carbon-fiber build plate with polymer membrane

• Industrial Reliability Features

  • Automatic bed leveling

  • Filament run-out detection

  • Power-failure recovery

  • Fully enclosed industrial frame for continuous operation

🧪 Supported Materials

High-Temperature Polymers

• PEEK, CF-PEEK, GF-PEEK

• PEKK

• PEI 1010 / PEI 9085

• PPSU, PPS

Engineering-Grade Materials

• PC, CF-PC

• PA, CF-PA, GF-PA

• ABS, CF-ABS

• ASA, CF-ASA

• PETG, CF-PETG

General & Support Materials

• PLA, CF-PLA

📐 Technical Specifications

• Printing Technology: FDM / FFF

• Build Volume: 500 × 500 × 700 mm

• Max Nozzle Temperature: 500°C

• Chamber Temperature: Up to 150°C

• Heated Bed Temperature: Up to 200°C

• Filament Diameter: 1.75 mm

• Recommended Layer Height: 0.05 – 0.30 mm

• Position Accuracy:

  • X/Y: 12.5 µm

  • Z: 1.25 µm

• Max Print Speed: 0 – 150 mm/s

• File Formats: STL, OBJ, 3MF, GCODE

• Connectivity: SD Card, Wi-Fi, USB

• Power Requirement:

  • 220 V ±10%, 50–60 Hz

  • Max Power: 6500 W

• Net Weight: 750 kg

🏭 Typical Applications

• Aerospace and defense tooling

• Automotive functional parts and fixtures

• High-temperature industrial components

• Medical and engineering polymer research

• Production of large PEEK / PEI end-use parts

🚚 Shipping & Support

• Professional industrial crating and international shipping available

• Installation guidance and technical support provided

• For industrial buyers, please contact us before purchase to confirm logistics and power requirements
