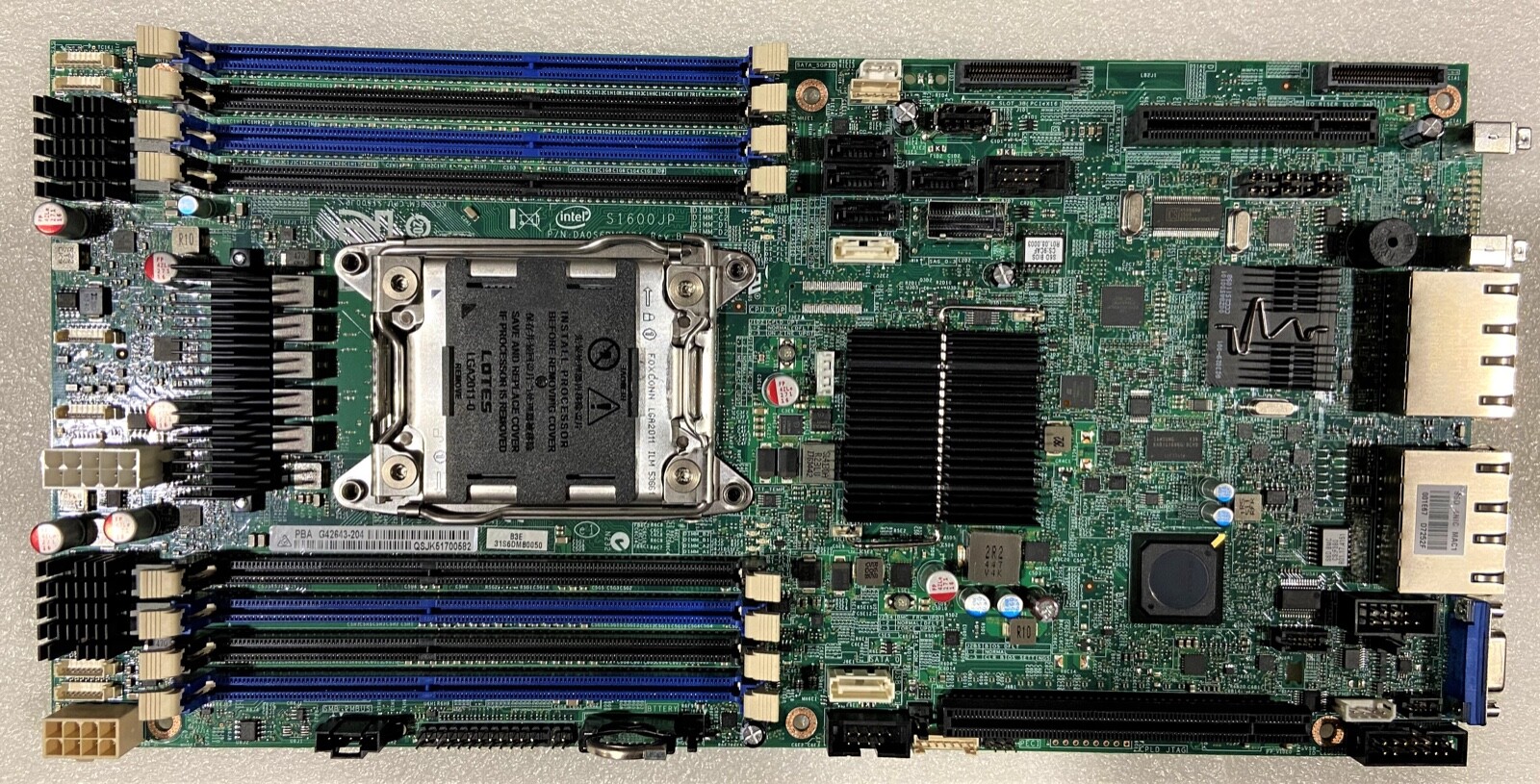

Intel BBS1600JP4 S1600JP4 Server Board 1U Rack Socket R 135 W
NEW BOARD ONLY_COMES IN 10 PACK_SOLD AS SINGLES
***Shipping DOES NOT include - any taxes/VAT that you may have to pay directly to your government based on your countries import laws. That is a charge you would pay - please check with your government BEFORE committing to buy this item***
ARK | Compare Intel Products
04/05/2022 11:43:38 AM
Intel Server Board S1600JP4 ()
Essentials
Product Collection
Intel Server Board S1600JP Family
Code Name
Products formerly Jackson Pass
Status
Discontinued
Launch Date
Q4'12
EOL Announce
Wednesday |December 21 |2016
Last Order
Friday |June 30 |2017
Last Receipt Attributes
Tuesday |October 31 |2017
# of QPI Links
1
Compatible Product Series
Intel Xeon Processor E5-1600 v2 Family
Board Form Factor
Custom 6.8'' x 13.8''
Chassis Form Factor
1U Rack
Socket
Socket R
Integrated Systems Available
Yes
Integrated BMC with IPMI
IPMI 2.0
Rack-Friendly Board
Yes
TDP
135 W
Included Items
Intel Server Board S1600JP4.
Board Chipset
Intel C602 Chipset
Target Market
Embedded
Supplemental Information
Embedded Options Available
Yes
Description
A high density server board supporting one Intel Xeon Processor E5-1600 family |8 DIMMs |four NICs |front I/O and 40 PCIe3 lanes of rich I/O as an ideal solution for embedded appliance |storage and High Performance Computing segments.
Additional Information
View now
Memory Specifications
Max Memory Size (dependent on memory type)
256 GB
Memory Types
DDR3 ECC UDIMM 1333/1600 |RDIMM 1066/1333/1600/1866 |LRDIMM 1333/1600/1866
Max # of Memory Channels
4
Max Memory Bandwidth
59.7 GB/s
Physical Address Extensions
46-bit
Max # of DIMMs
8
ECC Memory Supported
Yes
Processor Graphics
Integrated Graphics
Yes
Graphics Output
D-sub
Discrete Graphics
Supported
Expansion Options
Max # of PCI Express Lanes
40
PCI Express Revision
3.0
PCIe x16 Gen 3
2
Connector for Intel I/O Expansion Module x8 Gen 3
1
I/O Specifications
# of USB Ports
7
USB Revision
2.0
Total # of SATA Ports
10
RAID Configuration
Up to SW Raid 5 (LSIRSTE)
# of Serial Ports
1
# of LAN Ports
4
Integrated LAN
4x 1GbE
Firewire
No
Embedded USB (eUSB) Solid State Drive Option
No
Integrated SAS Ports
4
Integrated InfiniBand*
No
Package Specifications
Max CPU Configuration
1
Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Remote Management Module Support
Yes
Intel Node Manager
Yes
Intel Quick Resume Technology
No
Intel Quiet System Technology
Yes
Intel HD Audio Technology
No
Intel Matrix Storage Technology
No
Intel Rapid Storage Technology
No
Intel Rapid Storage Technology enterprise
Yes
Intel Fast Memory Access
Yes
Intel Flex Memory Access
Yes
Intel I/O Acceleration Technology
Yes
Intel Advanced Management Technology
Yes
Intel Server Customization Technology
Yes
Intel Build Assurance Technology
Yes
Intel Efficient Power Technology
Yes
Intel Quiet Thermal Technology
Yes
Intel Transparent Supply Chain
TPM Version
1.2
Security & Reliability
Intel AES New Instructions
Yes
Intel Trusted Execution Technology
Yes
