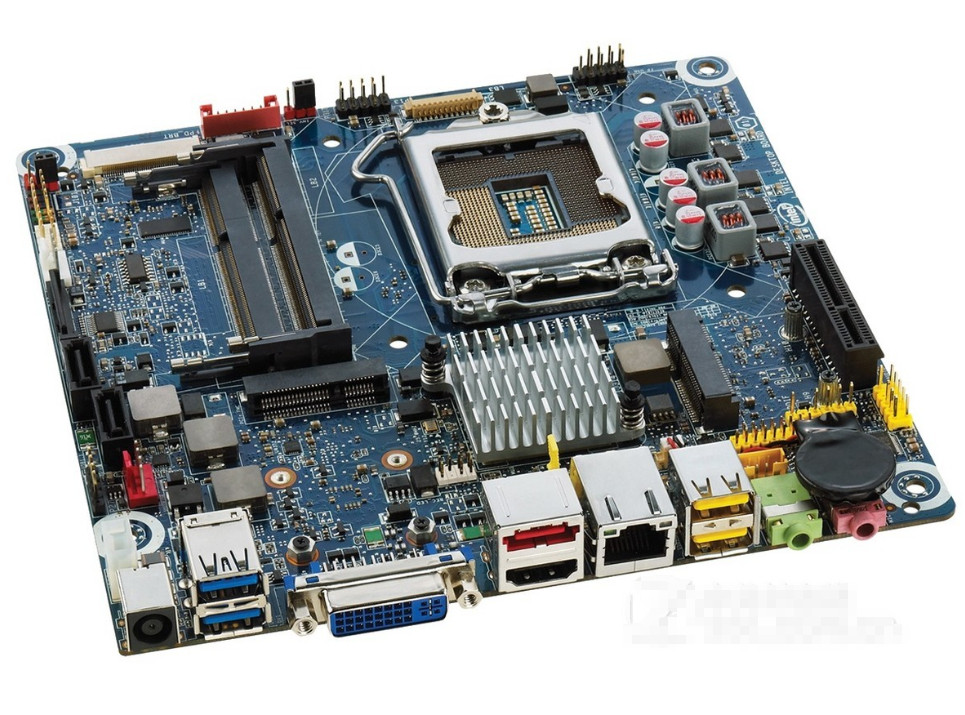

Product Description Intel DH61AG Desktop H61 Motherboard LGA 1155 DDR3 Mini-ITX System Board
Model: Intel Desktop Board DH61AGChipset: Intel® H61 ExpressSocket: LGA1155Form Factor: Thin Mini‑ITX (17.0 cm × 17.0 cm / 6.7" × 6.7")
CPU
- Socket: Intel LGA1155
- Supported CPUs: 2nd /3rd Gen Intel® Core i7/i5/i3, Pentium®, Celeron®, low TDP Xeon processors, Max 65W TDP
- Integrated graphics output available only with CPU equipped with Intel HD iGPU
- Check Intel official CPU support list for compatibility
Memory
- 2 × DDR3 SO-DIMM slots, Dual Channel
- Max Capacity: 16GB (8GB per SO-DIMM)
- Memory Speed: DDR3 1333 /1066 MHz (1600 supported via XMP)
- Support non-ECC unbuffered DDR3, 1.35V low voltage SO-DIMM
Expansion Slots
- 1 × PCIe 2.0 x16 slot
- 1 × Half-Mini PCIe slot (for Wi-Fi module)
Storage
- 2 × SATA 3Gb/s ports
- 1 × eSATA 3Gb/s port
- No RAID support
Rear I/O Panel
- 1 × HDMI port
- 1 × DVI-I port
- 2 × USB 2.0 Type‑A
- 1 × Gigabit RJ45 LAN
- 3.5mm Audio jacks (Line-out, Line-in, Mic)
- S/PDIF out
Onboard Internal Video (for all-in-one / embedded)
Audio
- Audio Codec: Realtek ALC892 7.1-Channel HD Audio
Networking
- LAN: Intel Gigabit Ethernet (10/100/1000 Mbps)
- No onboard Wi-Fi & Bluetooth (Half-Mini PCIe slot for separate wireless card)
Power Connectors
- 1 × 24-pin ATX main power
- 1 × 4-pin ATX 12V CPU power
Internal Headers
- 2 × USB 2.0 headers (extra 8×USB2.0)
- CPU fan header, System fan header
- Front panel audio header
- S/PDIF header
Features
- Thin Mini-ITX form factor, designed for all-in-one / slim chassis
- Supports Windows 7 / Windows 10 64-bit
