• Must use with TFC-110S20D3i
• Port level SNMP management support
• SC-type dual-wavelength single-mode fiber port
• 10/100Base-TX RJ-45 port
• Spans distances up to 20 km (12.4 miles)
• Functions as a standalone converter or with the TFC-1600 fiber chassis
• Lifetime TRENDnet Manufacturer’s Warranty

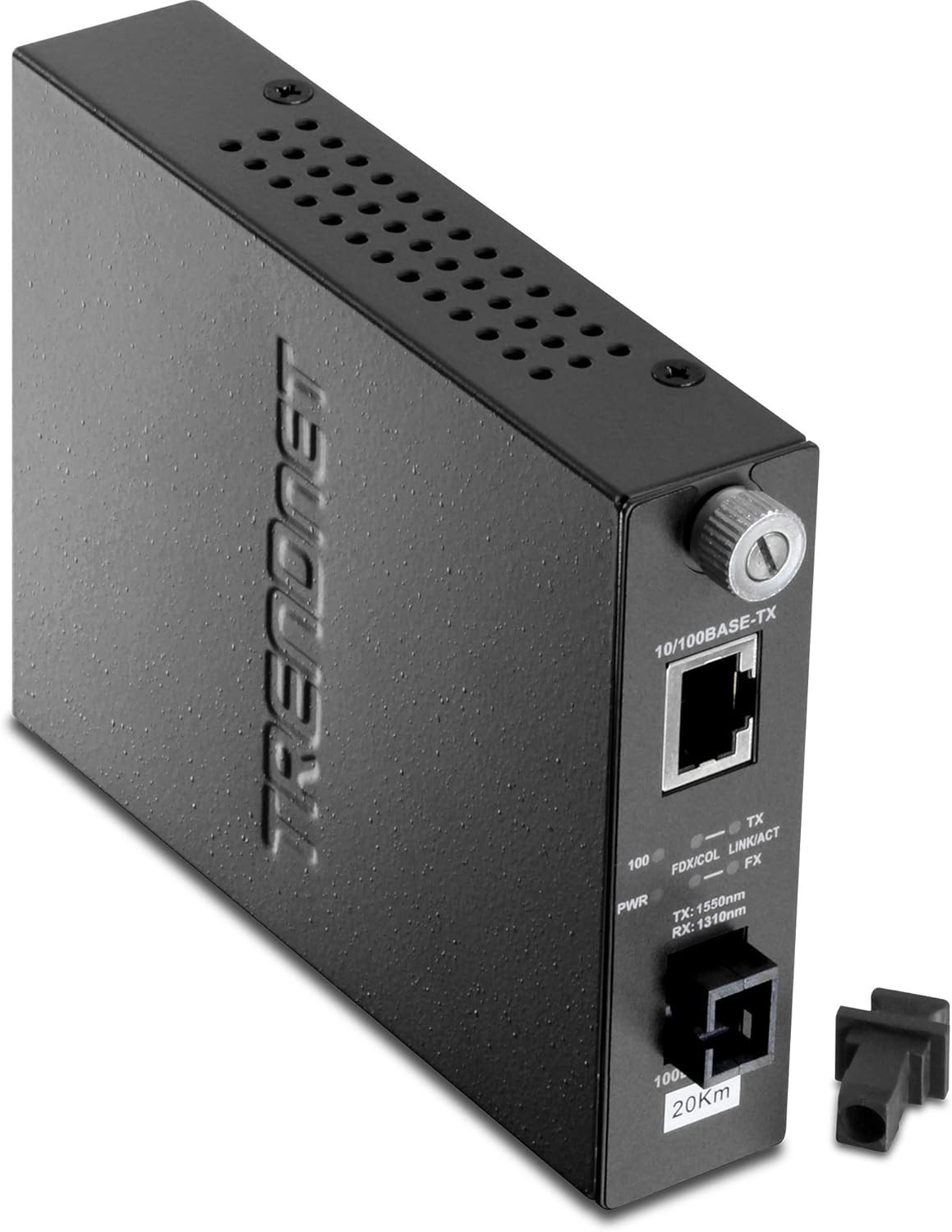

The TFC-110S20D5i intelligent fiber converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that spans distances up to 20 km (12.4 miles). This module must be used with the TFC-110S20D3i module. Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC Simplex Type) port.
• Must use with TFC-110S20D3i
• Compliant with IEEE 802.3u 100Base-TX and 100Base-FX standards
• 1 x 10/100Base-TX RJ-45 port
• 1 x 100Base-FX single-mode bi-directional simplex-SC type fiber port
• Port level SNMP management support
• Monitor and configure Ethernet or Fiber’s duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600
• Dip switch controls: Fiber (Full / Half-Duplex), UTP (Auto negotiation / Manual), Speed (10 Mbps / 100 Mbps)
• Copper (Full / Half-Duplex), LLR (Enable / Disable), and LLCF (Enabled / Disable)
• Link Loss Carry Forward (LLCF) support
• Link Loss Return (LLR) support
• Status LED indicators for Power and Link / Activity
• Removable metal enclosure
• Wall mountable
• Functions as a standalone converter or with the TFC-1600 fiber chassis
•Lifetime TRENDnet Manufacturer’s Warranty
PACKAGE CONTENTS
• TFC-110S20D5i
• Multi-Language Quick Installation Guide
• Power adapter (5 V DC, 1 A)
