Specs:Dimensions & Weight
Depth:
16.8 in
Height:
1.7 in
Weight:
17.6 lbs
Width:
17.3 in
Environmental Parameters
Humidity Range Operating:
10 - 90%
Max Operating Temperature:
113 °F
Min Operating Temperature:
32 °F
Flash Memory
Installed Size:
512 MB
Type:
Flash
Header
Brand:
HP
Compatibility:
PC
Manufacturer:
ProCurve Networking
Model:
5800-24G-PoE Switch
Packaged Quantity:
1
Product Line:
HP
Interface Provided
Comments:
PoE
Connector Type:
RJ-45
Qty:
24
Type:
1000Base-T
Connector Type:
SFP+
Qty:
4
Miscellaneous
Authentication Method:
RADIUS , Secure Shell v.2 (SSH2)
Encryption Algorithm:
PKI
Height (Rack Units):
1
Networking
Advanced Switching:
Layer 3
Cabling Type:
Ethernet 1000Base-T , Ethernet 100Base-TX , Ethernet 10Base-T
Compliant Standards:
IEEE 801.1p , IEEE 802.1ag , IEEE 802.1p , IEEE 802.1x , IEEE 802.3af , IEEE 802.3ah , IEEE 802.3x
Connectivity Technology:
Wired
Empty Slots:
4 x SFP+ / 1 x Expansion Slot
Features:
Access Control List (ACL) support , ARP support , Committed Access Rate (CAR) , DHCP snooping , DHCP support , DoS attack prevention , Flow control , IGMP snooping , IPv6 support , Layer 2 switching , MLD snooping , Port mirroring , Quality of Service (QoS) , Store and forward , Trivial File Transfer Protocol (TFTP) support , VLAN support , Weighted Random Early Detection (WRED)
Form Factor:
Rack-mountable
MAC Address Table Size:
32K entries
Manageable:
Yes
Ports Qty:
24
Power Over Ethernet (PoE):
PoE
Remote Management Protocol:
HTTPS , RMON , SNMP 3 , SSH , Telnet
Routing Protocol:
BGP , BGP-4 , IGMP , IGMPv2 , IGMPv3 , IS-IS , MSDP , Multiprotocol BGP , OSPF , OSPFv2 , OSPFv3 , PIM-DM , PIM-SM , PIM-SSM , Policy-based routing (PBR) , RIP-1 , RIP-2 , RIPng , Static IP routing , VRRP , VRRPE
Subcategory:
Network hubs and switches
Subtype:
Gigabit Ethernet
Switching Protocol:
Ethernet
Type:
Switch
Ports
Qty:
24
Type:
10/100/1000 (PoE)
Ports (2nd)
Qty:
4
Type:
SFP+
RAM
Installed Size:
512 MB
Technology:
SDRAM
Slot Provided
Free Qty:
1
Total Qty:
1
Type:

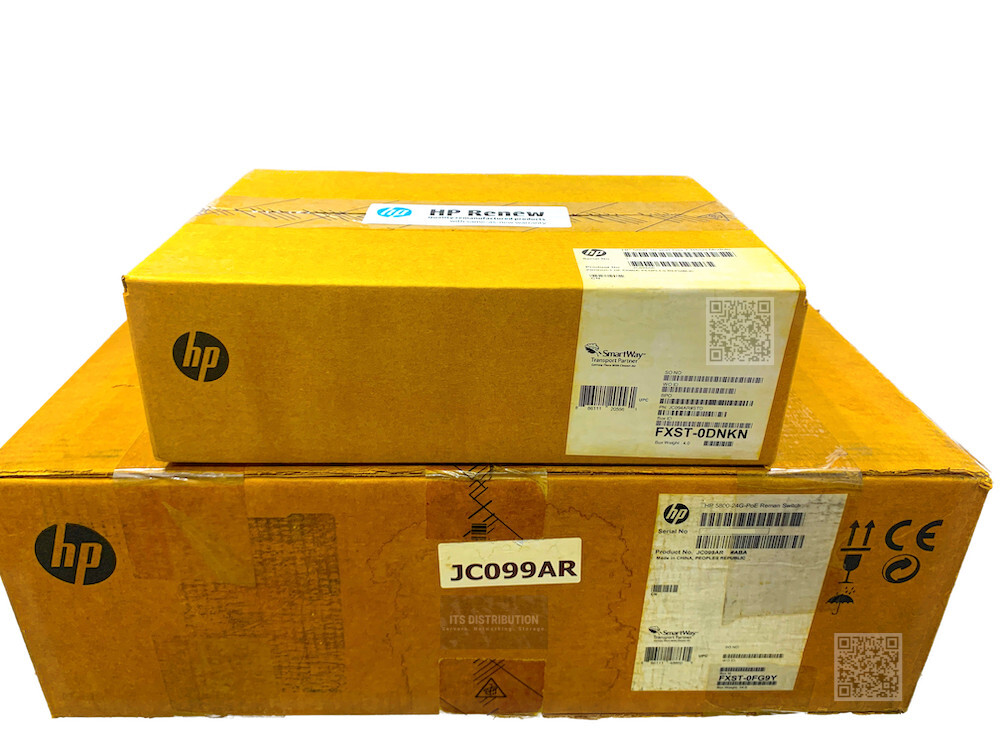

Expansion slot Listing includes HP Factory Sealed Renew JC099A switch & JC094A module.
Listing may include stock images, please contact us for confirmed photos of our inventory.
We ship all products according to manufacturer specifications. If the manufacturer does not include an option as standard with the product (power supply, fan tray etc) we do not either unless specifically stated. If you are have questions regarding what is included with a product, please contact us.
