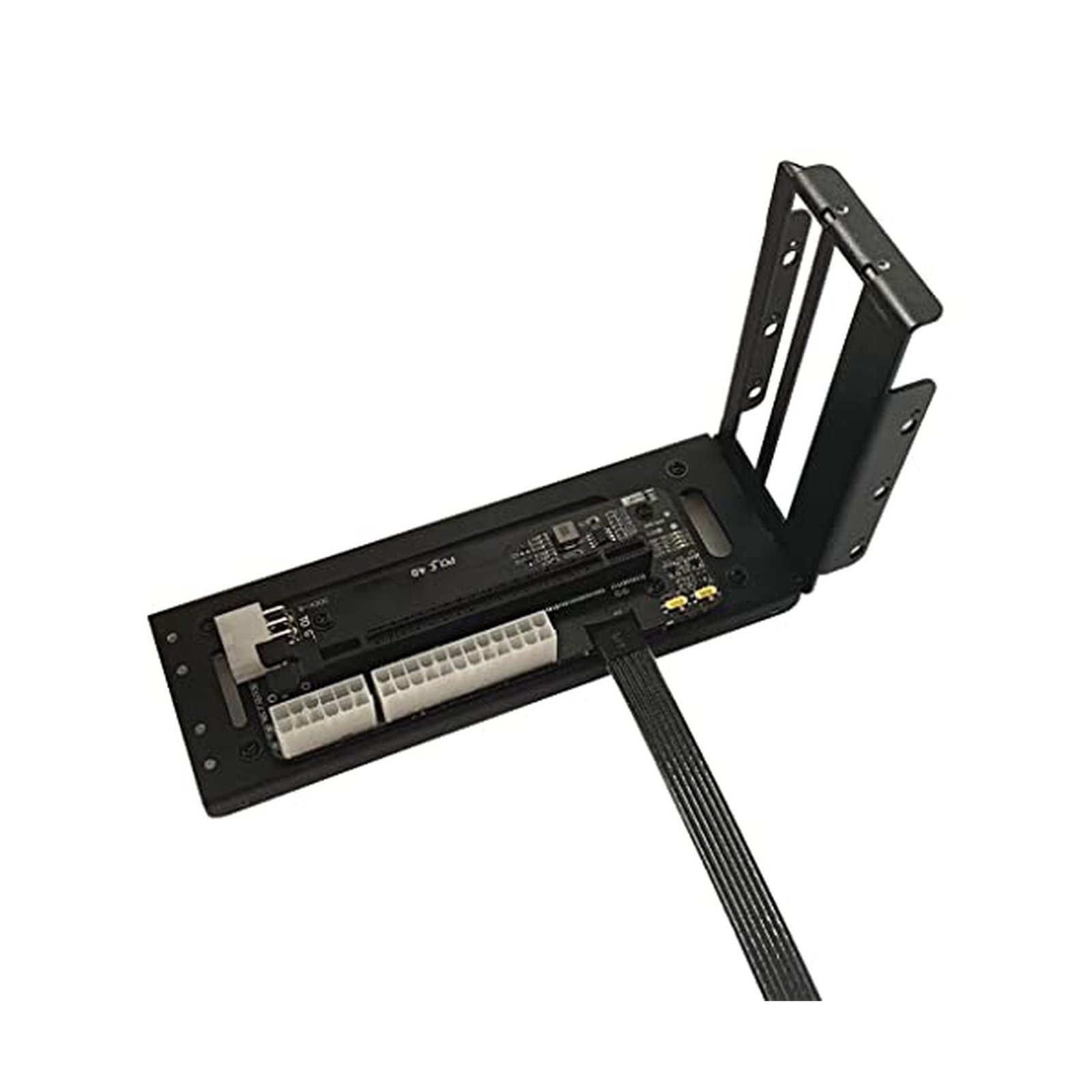

JMT R43SG GEN4 M.2 M-Key to PCIE X16 4.0 External Graphics Card Stand Bracket Compatible with NVME SSD NUC Host Expansion Card Graphics Dock (50cm) Description JMT R43SG GEN4 M.2 M-key to PCIE X16 4.0 External Graphics Card Stand BracketCompatible with NVME SSD for NUC Host Expansion Card Graphics Dock Theexternal device is a DIY device, which requires certain hardware knowledge tobe modified. Precautions: 1. Because the power supply interface is designedvertically and the space is compact, the back vest of the graphics cardexceeds 5mm, please contact customer service to purchase the horizontal powerinterface version. 2. with 8pin to dual 6+2pin graphics card power adaptercable. Conditions of Use: 1. Laptops or hosts with nvme-compatible solid-statehard disk interfaces can be disassembled to connect the adapter cable, and theexternal devices can be disassembled, so there is no need to disassemble themain device. 2. Laptop devices (MAC) with Thunderbolt-3-compatible (non-typec) can use Thunderbolt-3-compatible hard disk box bridge to form an externaldevice, Thunderbolt-3-compatible or Thunderbolt-4-compatible Highcompatibility and easy operation. Regarding compatibility, in theory, thecompatibility probability of nv·me-compatible interface is relatively high.Regarding the system version, if the device is not recognized during theinitial installation, please download the latest win10 system. Afteridentifying the external device, you need to download the latest graphics carddriver from the graphics card official website. After this device is connectedto an external screen, it can maximize the performance of 95% of the graphicscard (PCIE X4 4.0). The MAC-compatible internal screen has a GPU accelerationoption, which can be used for the internal screen. Features: - Supports NVME-compatible PCIE X4 4.0, Support USB4 hard disk box, To achieve the rate of PCIE 4.0, the base is upgraded to a metal bracket, the slot uses a gen*4 connector, and the cable uses a silver-plated cable.
- Compatible with Thunderbolt-3 hard drive enclosures,Compatible with Thunderbolt-4 hard drive enclosures.
- The external graphics card will give priority to the external screen. The internal screen may be limited by the processing method of the CPU, resulting in large losses. At present, the 10th generation CPU is friendly to the PCIE channel and Thunderbolt-compatible interface, and the performance of the internal screen is considerable.
- The DC power supply is forcibly powered on, and it will still supply power to the external devices when it is turned off. The DC supports a maximum power supply of 120W. Please pay attention to the power consumption of the external devices.
- The NUC host has an external adapter graphics card or a Gigabit 10 Gigabit network card for soft routing.
- Laptops or hosts with nvme-compatible solid-state hard disk interfaces can be disassembled to connect the adapter cable, and the external devices can be disassembled, so there is no need to disassemble the main device.
- After this device is connected to an external screen, it can maximize the performance of 95% of the graphics card (PCIE X4 4.0). The MAC-compatible internal screen has a GPU acceleration option, which can be used for the internal screen.
Product Details: - Brand: JMT
- Color: silver
- Hardware Interface: Thunderbolt
- Compatible Devices: Laptop
- Total USB Ports: 1
- Number of Ports: 1
- Wattage: 120 watts
- Manufacturer: JMT
- Package Dimensions: 9.27 x 3.74 x 2.76 inches
- Item Weight: 15.7 ounces
- Date First Available: October 17, 2022
- Manufacturer: JMT
 |
|
