The Juniper MS-MIC-16G-A Multiservice Router is a high-quality enterprise networking component that offers firewall service and network analysis capabilities. With its reliable brand reputation and specific product line, this router is designed to provide robust performance in a business environment. The Juniper MS-MIC-16G-A is a versatile option for organizations looking to enhance their network security and efficiency with a trusted and well-known networking solution.

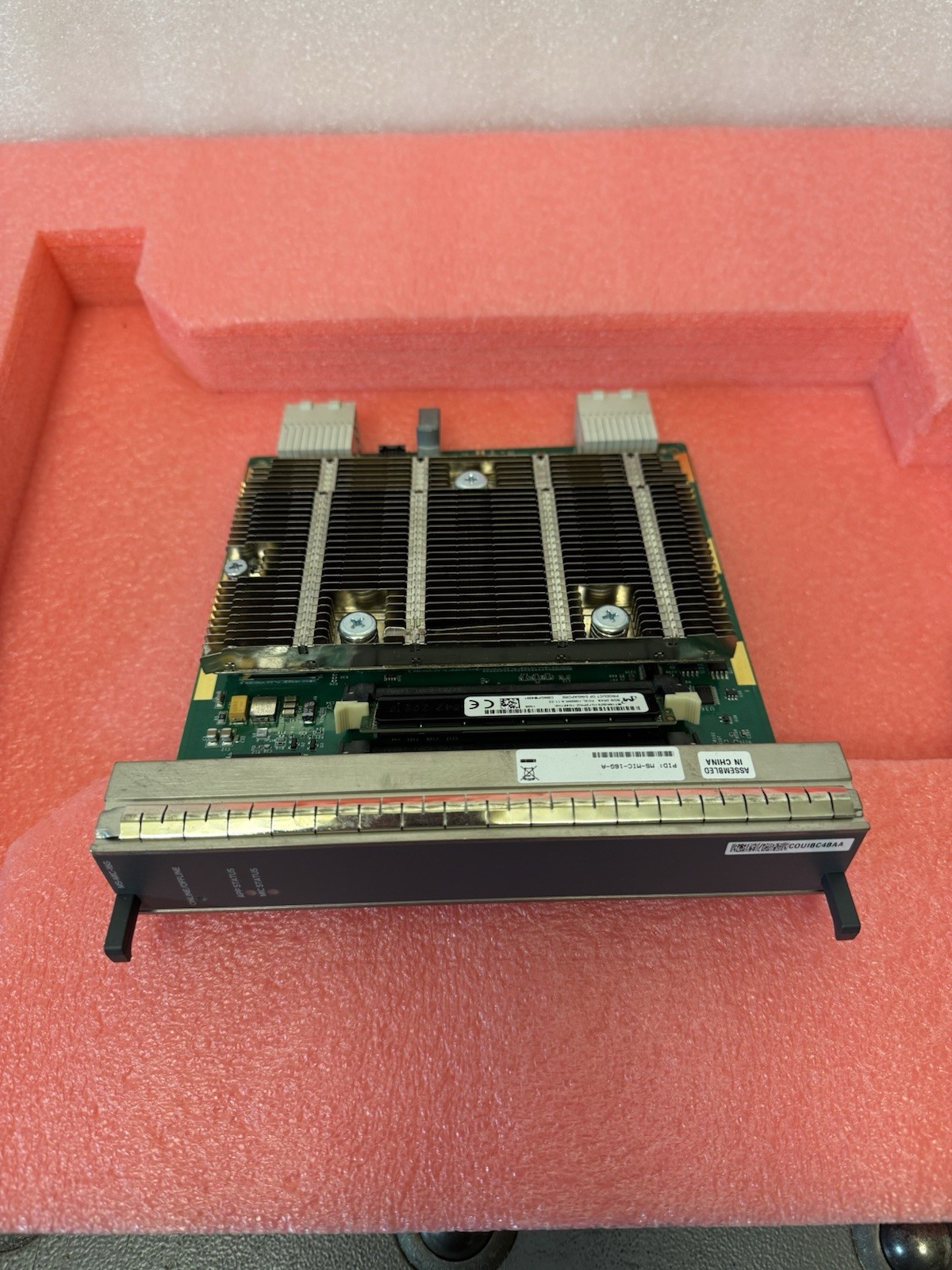

The Juniper MS-MIC-16G-A is a Multiservices Modular Interface Card (MIC) designed for MX Series routers, offering 16 GB of memory and advanced service capabilities such as IPsec, NAT, firewalling, and flow monitoring.
🔧 Key Features• Model: MS-MIC-16G-A (CLI name: MS-MIC-16G)• Memory: 16 GB enhanced memory for scaling and performance• CPU: 800 MHz clock cycle• Services Supported:• IPsec encryption• NAT (with NAT-T support from Junos OS 17.4R1 onward)• Port Address Translation (PAT)• Stateful firewall with packet inspection (detects SYN floods, ICMP/UDP floods, ping-of-death)• Traffic sampling and flow monitoring (RFC 3954, version 9 records)• Network Attack Protection (NAP)• Up to 6000 service sets supported• MTU Support: Up to 9192 bytes
⚙️ Hardware Details• Form Factor: Hot-removable and hot-insertable MIC• Compatibility: Works with MX80, MX240, MX480, MX960, and other MX Series routers• Power Requirements: 6.67 amps @ 9V (≈60W)• Dimensions:• Height: 0.9 in (2.26 cm)• Width: 6 in (15.24 cm)• Depth: 7 in (17.78 cm)• Weight: ~2 lbs (0.91 kg)• LED Indicators:• APP STATUS: Off (not running), Red (failed), Yellow (reconfiguring), Green (running)• MIC STATUS: Off (failed), Red (error), Yellow (transitioning), Green (normal)
