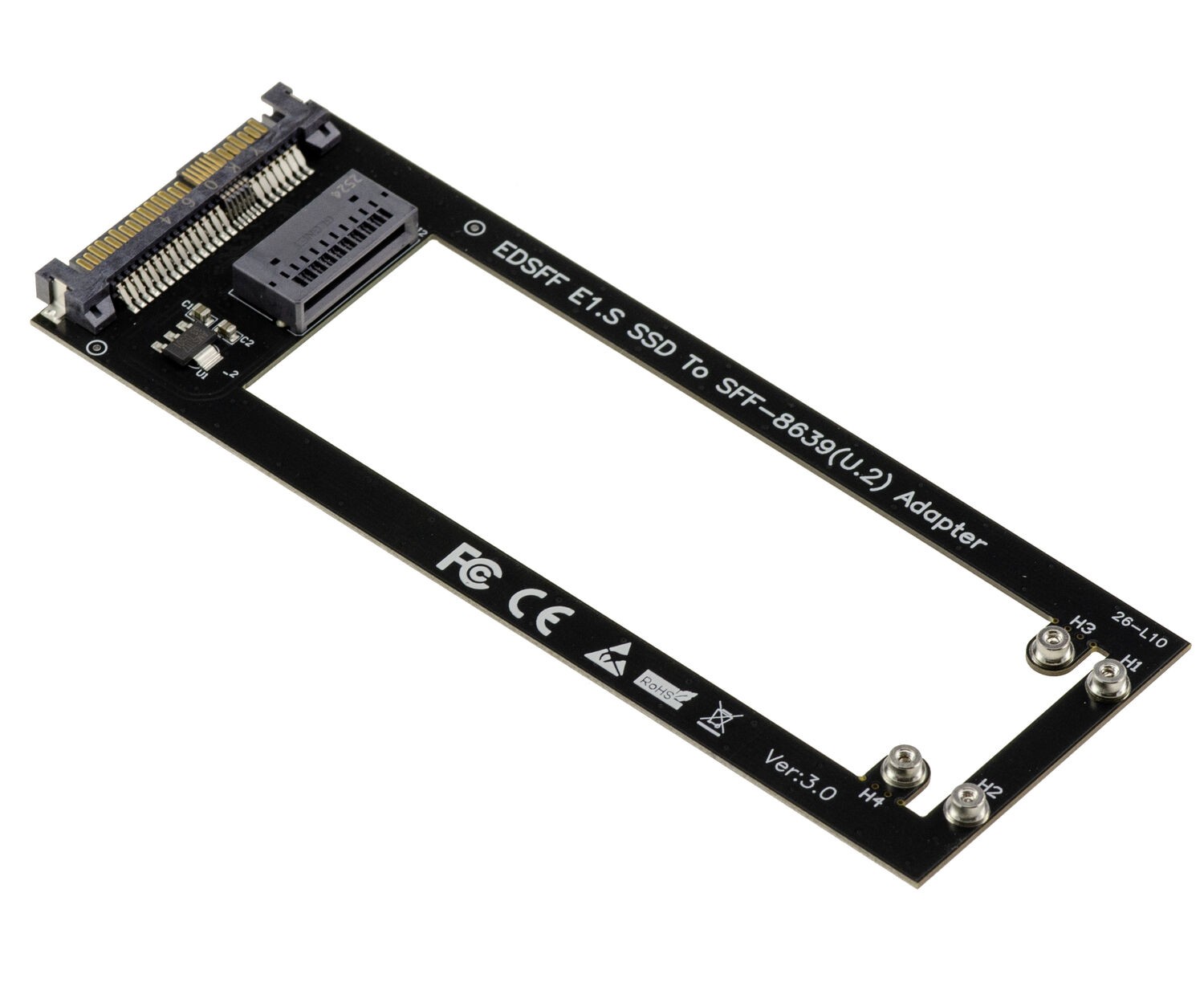

KALEA-INFORMATIQUE EDSFF E1.S NVMe PCIe Gen4 To U.2 SFF-8639 Adapter
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
KALEA-INFORMATIQUE EDSFF E1.S NVMe PCIe Gen4 To U.2 SFF-8639 Adapter
Price: FR $36.70

This adapter allows you to install an EDSFF E1.S NVMe PCI Express 4.0 SSD on a U.2 SFF-8639 interface compatible with PCIe Gen3 or PCIe Gen4. It provides full conversion between E1.S and U.2 formats, allowing the host system to detect the E1.S SSD as a standard U.2 E1.S NVMe PCIe Gen3 and PCIe Gen4 SSD.
SSD E1.S short formats (Short E1.S).
Compatible with E1.S SSDs of all thicknesses.
Works on U.2 SFF-8639 PCIe Gen3 and Gen4 interfaces.
Compatible with systems supporting the NVMe protocol.
Not compatible with U.3 interfaces.

Technical characteristics:
Passive EDSFF E1.S to U.2 SFF-8639 conversion adapter.
PCI Express Gen4 compliant architecture.
EDSFF E1.S 110 mm connector with integrated fixing system.
Support E1.S SSD: 5.9mm/12W, 8mm/16W, 9.5mm/20W, 15mm/20W, 25mm/25W.
Short and long spacers provided to accommodate different SSD thicknesses.
Two mounting positions available.
U.2 SFF-8639 68-pin host connector.
Full support for the NVM Express (NVMe) protocol.
No external power supply or specific driver required.
SSD mounting hardware provided.
Dimensions: 140 × 52 × 10mm.

This adapter allows you to install an EDSFF E1.S NVMe PCI Express 4.0 SSD on a U.2 SFF-8639 interface compatible with PCIe Gen3 or PCIe Gen4. It provides full conversion between E1.S and U.2 formats, allowing the host system to detect the E1.S SSD as a standard U.2 device.  EDSFF E1.S NVMe PCIe Gen3 and PCIe Gen4 SSD. Compatible with E1.S SSDs of all thicknesses. Works on U.2 SFF-8639 PCIe Gen3 and Gen4 interfaces. Compatible with systems supporting the NVMe protocol. Passive EDSFF E1.S to U.2 SFF-8639 conversion adapter. EDSFF E1.S 110 mm connector with integrated fixing system. Support E1.S SSD: 5.9mm/12W, 8mm/16W, 9.5mm/20W, 15mm/20W, 25mm/25W. Short and long spacers provided to accommodate different SSD thicknesses. Full support for the NVM Express (NVMe) protocol. No external power su
