KP Performance KPP-3SX4-65 3.5-4.2GHz 18dBi 4-Port Sector Antenna NEW 2-PACK
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
KP Performance KPP-3SX4-65 3.5-4.2GHz 18dBi 4-Port Sector Antenna NEW 2-PACK
Price: US $599.00

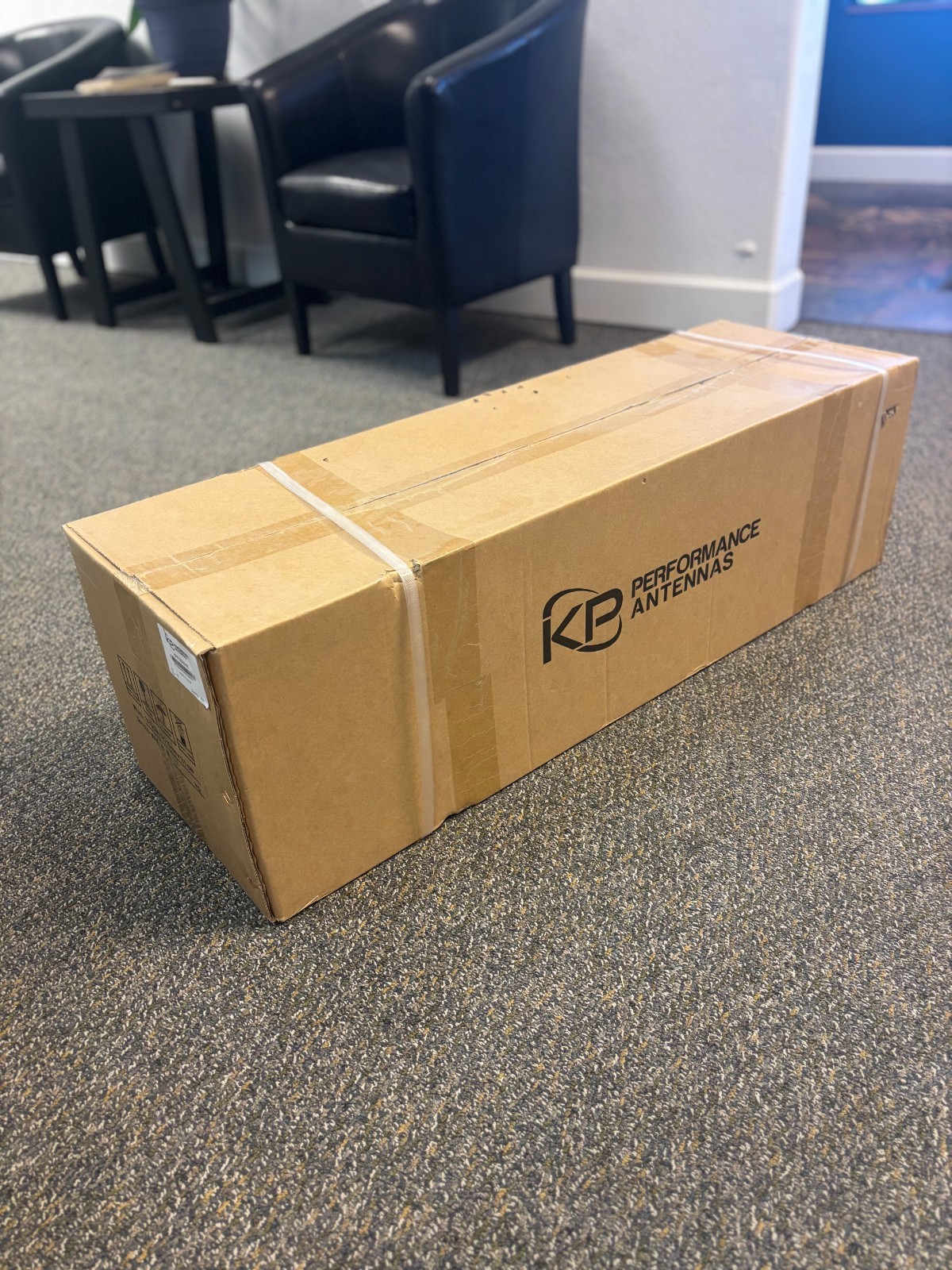

KP Performance ProLine sector antennas, factory sealed. Two antennas per box, never opened.

Specifications, per the unit label:

  • Part number KPP-3SX4-65
  • Frequency 3500 to 4200 MHz
  • Gain 18 dBi
  • Polarization +/- 45 degree slant
  • Azimuth beamwidth 63 degrees
  • Elevation beamwidth 6.1 degrees
  • Electrical downtilt 4.0 degrees
  • 4 port, 7/16 DIN connectors
  • Front to back 40 dB

Note on downtilt: the unit label reads 4.0 degrees electrical downtilt whileKP's current published spec sheet lists 3.5 degrees. Listing what thephysical label says so there are no surprises.

What this is good for: 3.5 to 4.2 GHz covers CBRS band 48, so these pairdirectly with CBRS radios. Four ports supports 4x4 MIMO. The 65 degreeazimuth is the standard choice for three sector frequency reuse onedeployments. Fourteen units covers four full three sector sites with twospares.

Current production model, still sold new by Streakwave, DoubleRadius,Winncom, and Tessco at over $450 each. Mounting hardware included as shippedfrom KP.
