USED

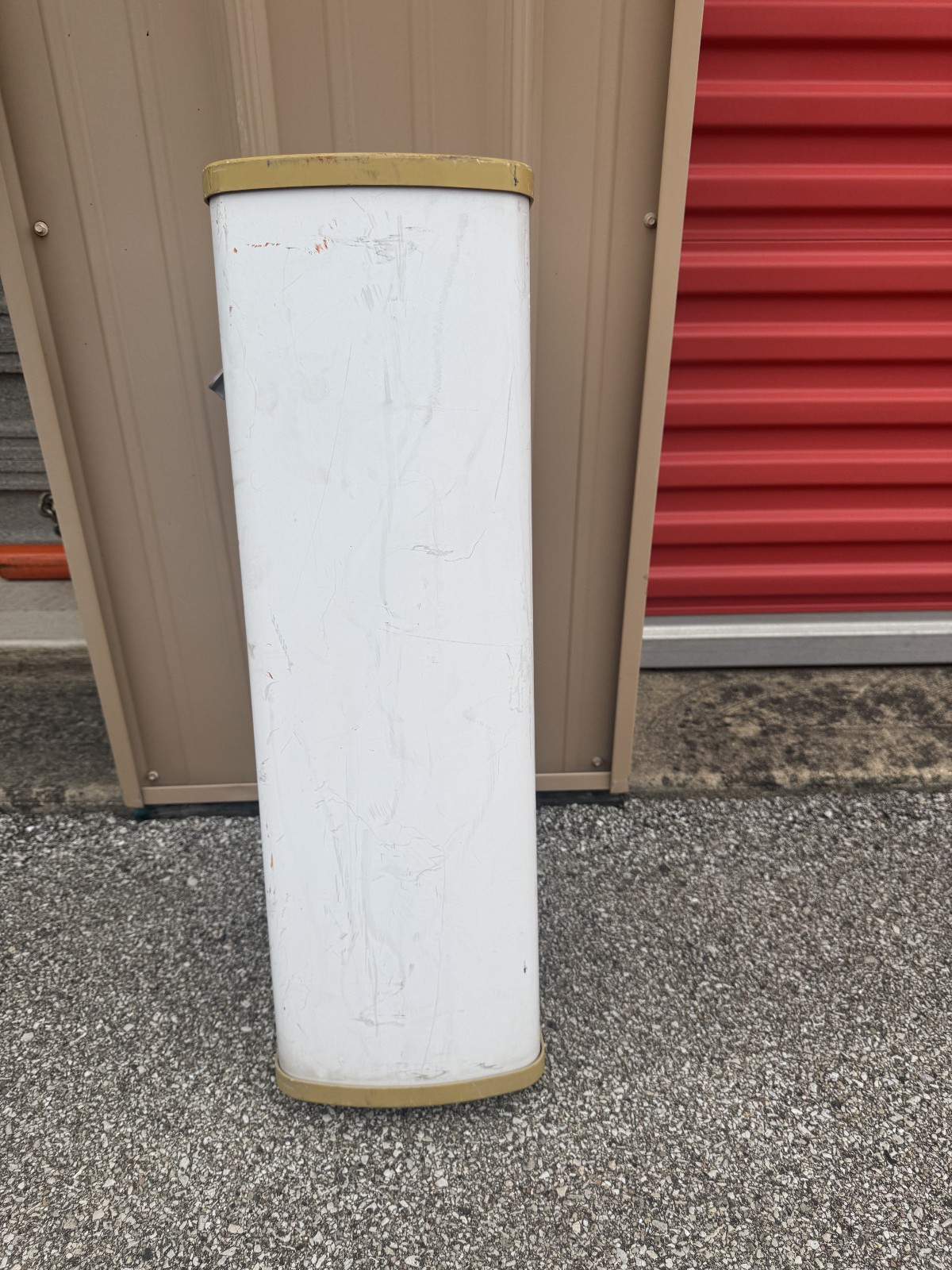

3GHz 120°±45°Slant 14.5dBi/Designed for LTE
TheKP-3DP120S-45 is a 2-port 15.5 dBi sector antenna designed for use in 3 GHz WISP and LTE networks. The unique design of these 3 GHz sector antennas minimizes interference by utilizing a 120-degree gain pattern and ±45-degree slant dual polarization scheme.

TheKP-3DP120S-45 sector antenna is designed to provide high-gain and maximum coverage and feature improved front-to-back and pattern roll off that allows for higher spectral efficiency. This sector antennas operates in the popular LTE frequency range of 3.3 GHz to 3.8 GHz and delivers VSWR of 1.7:1 depending on frequency.

Frequency Range: 3.3 GHz to 3.8 GHzPolarization Type: 45 Deg. SlantGain: 15.5 dBiVertical Beamwidth: 7°Horizontal Beamwidth: 120°Electrical Downtilt: 3.5°F/B Ratio: 30 dBVSWR: 1.7:1Cross Polar Ratio: 25 dBPort Isolation: 25 dB

Unit sold as is, multiple available. Has not been field tested or in use in some time.

No returns/refunds. Message for additional shipping options.
