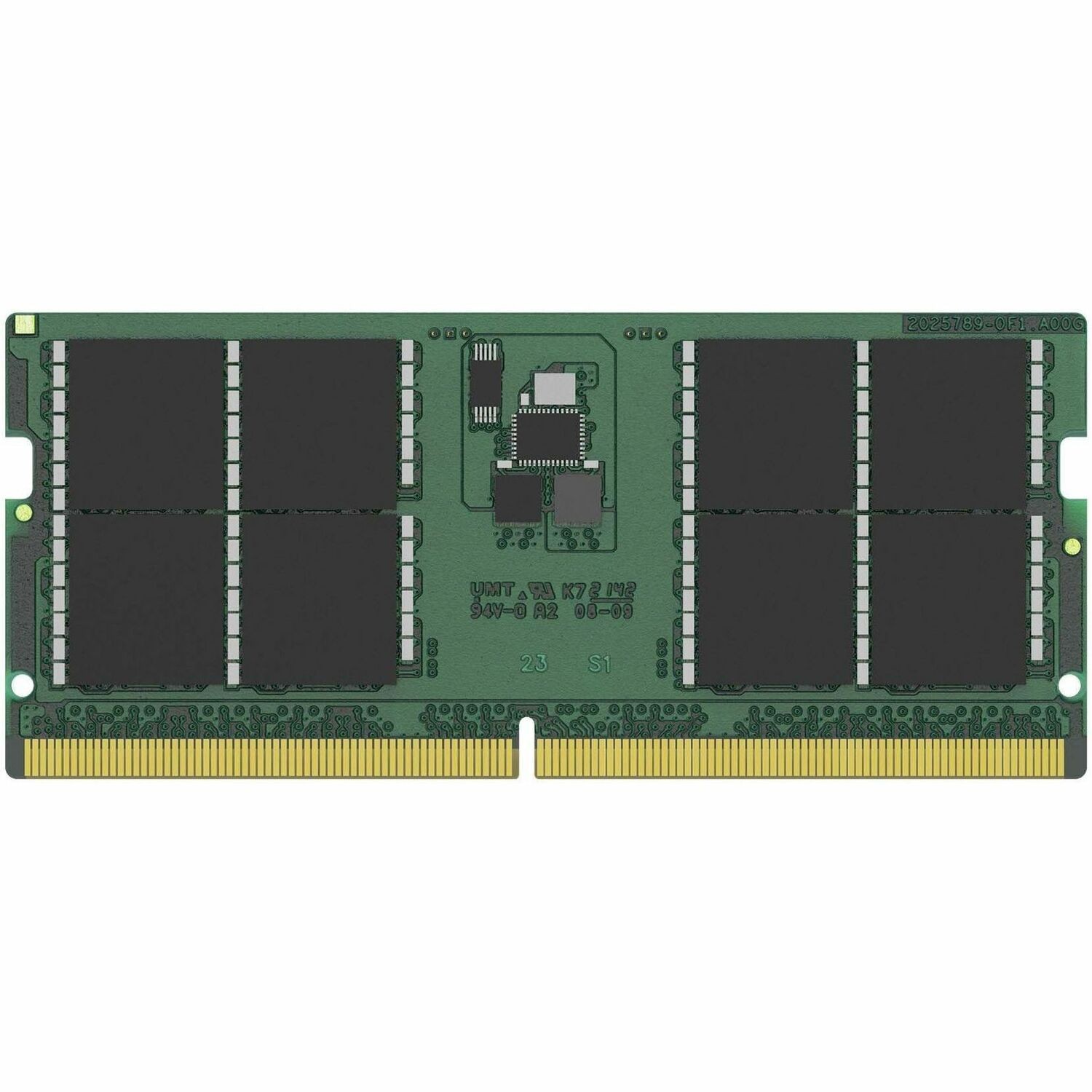

Kingston ValueRAM 48GB DDR5 SDRAM Memory Module (kvr56s46bd8-48) Kingston ValueRAM 48GB DDR5 SDRAM Memory Module (kvr56s46bd8-48)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Environmental Certification: Hazard Assessment of Perfluorooctane Sulfonate (PFOS)
Environmentally Friendly: Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Product Description
This item is brand-new, factory sealed.
KVR56S46BD8-48
48GB 2Rx8 6G x 64-Bit
PC5-5600 CL46 262-Pin SODIMM
DESCRIPTION
This document describes ValueRAM's KVR56S46BD8-48 is a 6G x 64-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
PCB: Height 1.18 (30.00mm)
RoHS Compliant and Halogen-FreeCL(IDD)
46 cyclesRow Cycle Time (tRCmin)
48ns(min.)Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)Row Active Time (tRASmin)
32ns(min.)UL Rating
94 V - 0Operating Temperature
0o C to +85o CStorage Temperature
-55o C to +100o CItem Dimension (L"xW"xH")
1 x 2 x 4
Weight
1 lb
Warranty Information
Limited Lifetime SpecificationPhysical CharacteristicsThickness157.5 milForm FactorSODIMMLength2.7"Number of WarrantyLifetimeGeneral InformationBrand NameKingstonPackage TypeRetailProduct TypeRAM ModuleProduct NameValueRAM 48GB DDR5 SDRAM Memory ModuleManufacturerKingston Technology CompanyManufacturer Part NumberKVR56S46BD8-48Product LineValueRAMTitleProduct TitleKingston ValueRAM 48GB DDR5 SDRAM Memory Module (KVR56S46BD848)Technical InformationMemory TechnologyDDR5 SDRAMMemory Size48 GBCAS LatencyCL46Memory RankDual-rankMemory Speed5600 MHzDevice SupportedNotebookMemory Voltage1.10 VMemory StandardDDR5-5600/PC5-44800Error CheckingOn-die ECC Shipping
