O11D EVO

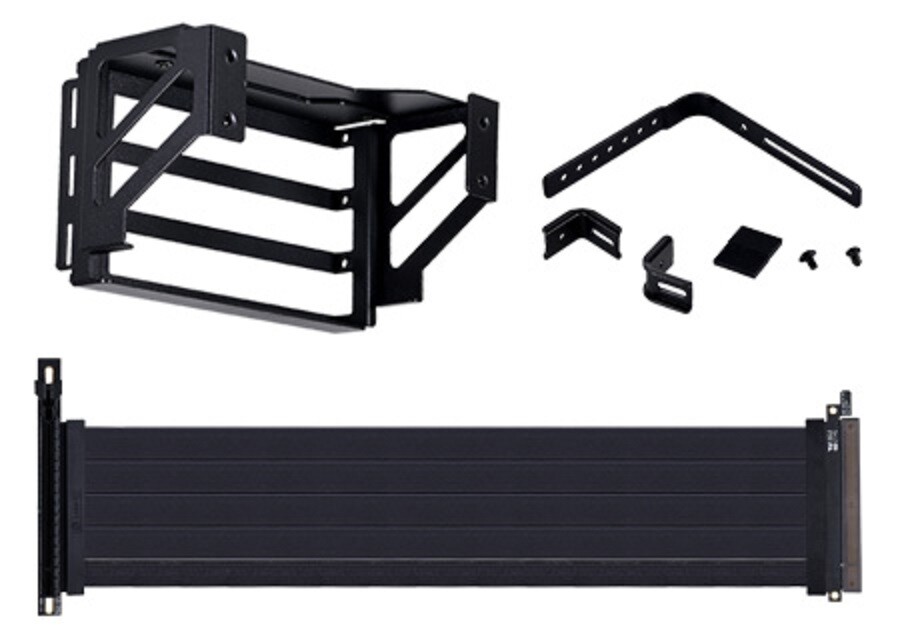

Upright GPU Kit
Show off your graphics card in a unique way with theexclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamlessconnectivity.
TWO MOUNTING WAYS WORK ON BOTH MODES
Both HDD tray panel and fan bracket support to mount uprightGPU kit on normal or reverse mode.
HDD TRAY PANEL SCENARIO
Supreme Water-Cooling Configuration
Normal Mode with HDD Tray Panel Scenario
Moving the GPU next to the motherboard opens up the mainchamber in the chassis for the tubes to pass through and creates achimney-style airflow, effectively cooling the top and bottom radiator.
Ultimate Air-Cooling Configuration
Normal Mode with HDD Tray Panel Scenario
Paired with the upright GPU kit, the front mesh kit providesthe O11D EVO with additional fresh air intake from the front to better cool theGPU and the CPU.
SUPPORT WIDE VARIETY SIZES GPU
While the bracket supports up to 3 slots thick GPUs, thinGPUs can be mounted at the second slot.
In addition, the L-type support bracket can be adjustedaccording to the GPU’s width and thickness.
GPU installing at ① slot –
GPU Max Width: 140mm
Water block GPU max Width: 151mm
Compatible with Compatible with 600mm PCIe 4.0 RiserCable(PW-PCI-4-60X/W)
GPU installing at ② slot –
GPU Max Width : 140mm
Water block GPU max Width : 158mm
NOT compatible with 600mm PCIe 4.0 Riser Cable, pleasepurchase PCI-e 4.0 X16 Riser cable(PW-PCI-420) and connect to the riser cableincluded in Upright GPU Kit (O11DE-2X/W) to route from the second chamber.
SPECIFICATIONS
PRODUCT NAME UprightGPU Kit for O11D EVO Upright GPU Bracketfor O11D EVO
MODEL O11DE-2X O11DE-2W O11DE-2X.30 O11DE-2W30 O11DE-6X O11DE-6W
COLOR Black White Black White Black White
BRACKET DIMENSION Mountingframe: 71.8mm(L) x 128mm(D) x 67.58 mm(H) Support frame: 70mm(L) x 81mm(D) x 10mm(H)
MATERIAL 1mmSTEEL
MOTHERBOARD COMPATIBILITY ATX(Max 244mm)
PCIE RISER CABLE Gen4.0 Gen 3.0 –
CABLE LENGTH 380mm –
CABLE INTERFACE PCI-EX 16 –
EXPANSION SLOT 3slots
GPU COMPATIBILITY Length:Maximum 355MM Thickness: Maximum 62MM thick Width HDD Tray Panel Scenario:100MM ~ 140MM Fan Bracket Scenario: 121MM~140MM Water block GPU: Maximum 158MM
