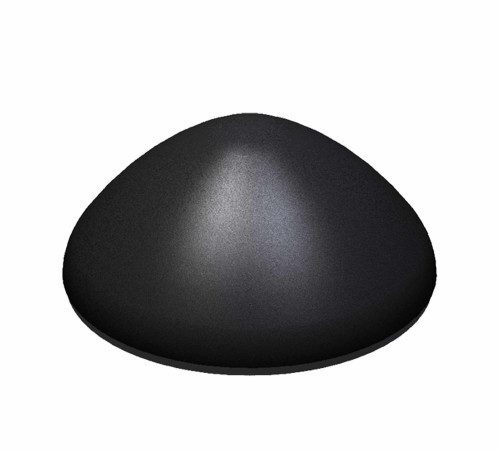

LP-7-38-3SP Low Profile 4G/5G Vandal Protected Dome Antenna 3m Cable SMA Connector LP-7-38-3SP Low Profile 4G/5G Vandal Protected Dome Antenna 3m Cable SMA ConnectorThe Panorama LP-7-38 range is a cost-effective, robust low profile antenna suitable for IoT & M2M use in hostile environments.
This is the 3m Version. Also available in a 1m cable version.
The antenna covers 698-960/1710-3800MHz supporting 2G/3G/4G and 3.5GHz 5G bands. The effective element design ensures a robust communications link, even in areas with the poor network coverage.
It can be installed on conductive or non-conductive panels, in a single 19mm (3/4”) hole and is fitted with flame retardant RG174 cable(s )compliant with UN ECE R118.03 and a SMA connector.
The antenna range is certified to both IK10 and IP69K, when correctly installed, meeting the most stringent vandalism and ingress protection standards.
Product Features
- Multifunction Antenna
- Low Profile Housing
- Cost-Effective Solution
Performance Features
- Covers Wideband 700-3800MHz Cellular Bands
- Can be Installed on Conductive or Non-Conductive Surfaces
Benefits
- 4G/5G LTE Ready
- Meets IP69K and IK10
Applications
- M2M & IoT Static Applications
- Remote Monitoring
- Smart Metering
- Vending Machines
Spec Sheet : LP-7-38.pdf
