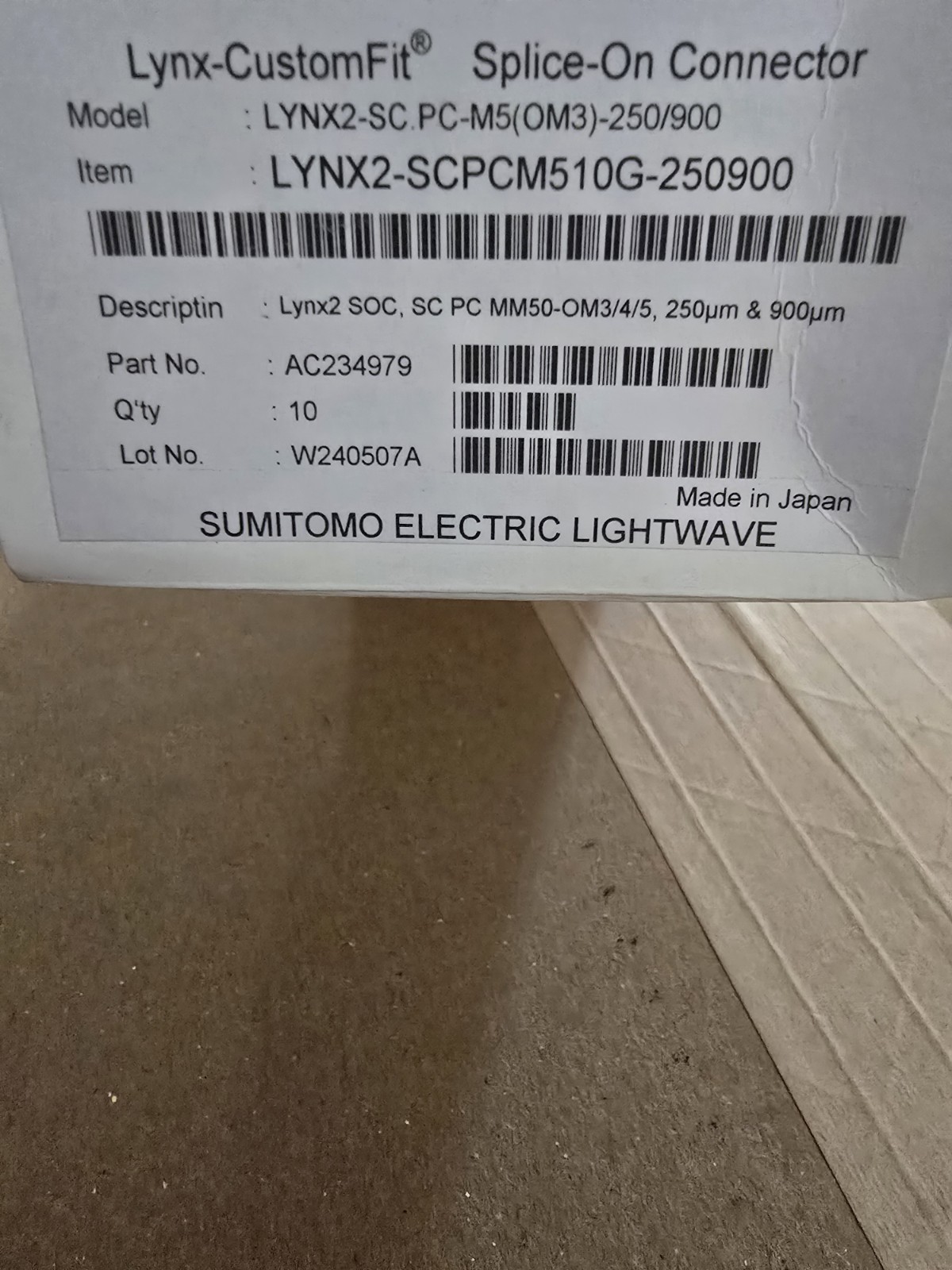

Box of 10. 2 were opened, not used and resealed.The Sumitomo LYNX2-SCPCM510G-250900 is an SC/PC multimode 10GIG fiber optic splice-on connector that provides fast, factory-quality field terminations for data networks.
Eliminates the excess slack and measurement errors common with pre-terminated cables. Uses a fusion splice inside the connector body for a permanent, low-loss connection. Secures fiber strength members using a screw-on collar instead of a crimp tool.Static Attributes
Connector Type: SC Physical Contact (SCPC)
Fiber Compatibility: 50µm multimode 10GIG (OM3/OM4)
Buffer Size: 250µm and 900µm tight buffered fiberStandards
Compliance: Telcordia GR-326-CORE and GR-1081-CORE
Hardware Support: Compatible with Sumitomo Electric Lightwave and other industry fusion splicers.Installation Process
Strip the outer jacket and buffer to expose the 250µm or 900µm fiber
Clean and cleave the bare fiber strand to the correct length
Place the fiber into the fusion splicer alongside the factory stub inside the connector.
Execute the fusion splice cycle
Slide and secure the screw-on mechanical boot to lock the Kevlar and jacket in place.
