Lantronix Mini Fast / Gigabit Ethernet PoE+ Media Converter M/GE-PSW-PSE-01-NA
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

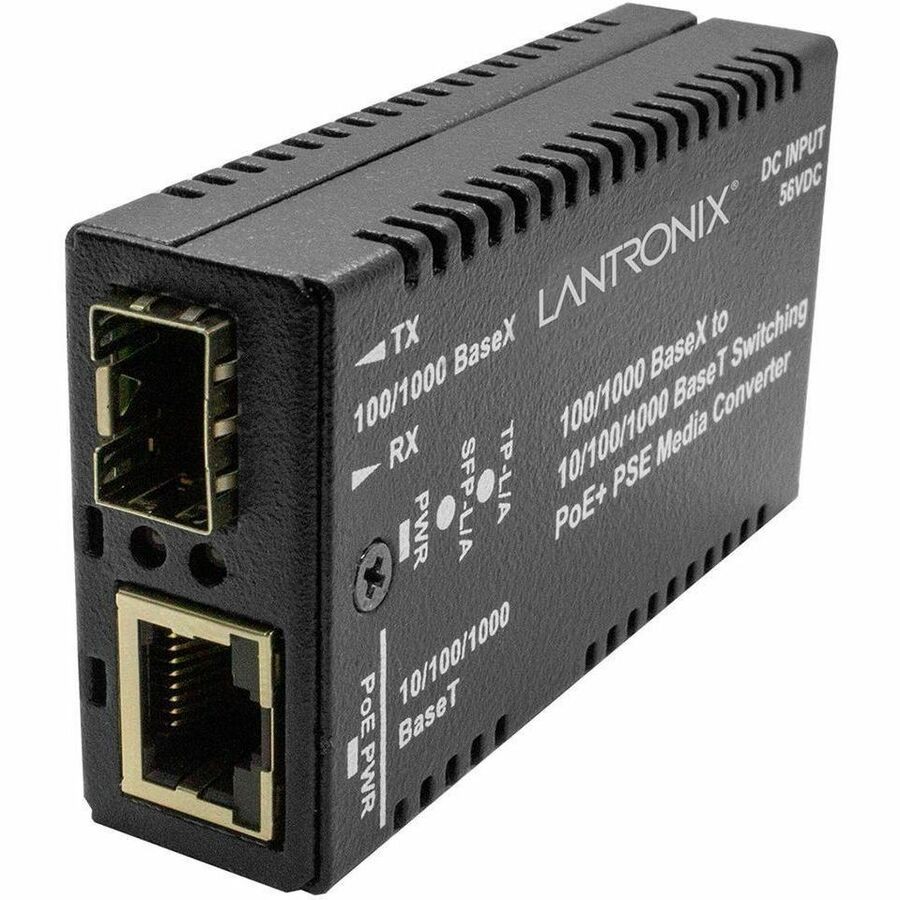

Lantronix Mini Fast / Gigabit Ethernet PoE+ Media Converter M/GE-PSW-PSE-01-NA
Price: US $301.68
Mini Fast / Gigabit Ethernet PoE+ Media Converter
10/100/1000Base-T PoE+ RJ-45 Port + 100/1000Base-X SFP Slot
  • About Us
  • Payment Info
  • Shipping Info
  • Customer Support
  • response
Lantronix Mini Fast / Gigabit Ethernet PoE+ Media Converter M/GE-PSW-PSE-01-NA Brand: Transition Networks UPC: 0648177044764 Mfr Part #: MGEPSWPSE01NA

General Information

This Gigabit Ethernet Stand-alone Mini Media Converter provides cost-effective media conversion between 10/100/1000Base-T ports and 100/1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, but it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.

In addition to providing copper to fiber conversion, this converter is also classified as Power Sourcing Equipment PSE, meaning it combines data received over the fiber optic link with 56VDC input power to provide power and data to a Powered Device PD over the twisted Pair cable, while complying with the IEEE 802.3af and IEEE 802.3at PoE+ standards. This allows the user to take advantage of the benefits of fiber cabling, along with the benefits of Power-over-Ethernet PoE technology.

Supporting PoE allows this converter to send data and power to devices like VoIP Phones, Security Cameras, and Wireless Access Points, especially if they need to be located in remote areas of your network that can only be reached with fiber optic cabling. NDAA Compliant, TAA Compliant

Media & PerformanceMedia Type Supported:Twisted PairMedia Type Supported:Optical FiberMaximum Distance Supported:0.10 km

I/O ExpansionsTotal Number of Expansion Slots:1Expansion Slot Type:SFPNumber of SFP Slots:1

Network & CommunicationEthernet Technology:Gigabit EthernetNetwork Technology:10/100/1000Base-TNetwork Technology:100/1000Base-X

Power DescriptionPower Source:AC/DCInput Voltage:56 V DCPower Consumption:34 W

Physical CharacteristicsForm Factor:TabletopForm Factor:DIN Rail MountableForm Factor:Rack-mountableForm Factor:Wall (Approximate):2 lb

M/GE-PSW-PSE-01 Transceiver/Media Converter

  • Power Supply - North America
    • Application/Usage:VoIP PhoneApplication/Usage:Security CameraApplication/Usage:Wireless Access Information:10/100/1000Base-T PoE+ RJ-45 port [100 m/ 328 ft.] to 100/1000Base-X SFP slot (empty)Certifications & Standards:EN55032-2012 Class A, IEC 61850-3:2002, EN55024-2010, CE Mark, Power Supply is UL listedEnvironmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)Environmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)TAA Compliant:YesNDAA Compliant:Yes
