Laptop TV LCD LED TEST TOOL KIT SET panel tester kit for repair Screen Monitor
How to Use the panel tool as Below
1.Please make sure your Panel Resoultion ,Power for the Panel and Backlight that you need to Test .
such as LTN170X2-L02 we Need to Know the Resolution 1440*900 6bits ,30pin Double LVDS cable and the power is 3.3V supply
2.Connect the Power to the Panel tester ,the power input is 12V-3A or 12V-5A DC port 2.5MM and 5.5MM inner + outside -
3.Press S1 or S2 set The resolution ,such as the 1440*900 ,you need to set the display on 36 .
4.Choose the Panel supply Voltage ,press the Auto for 5 seconds .if you panel is 3.3V then you not need to Choose
5.Connect the LVDS cable and the Backlight Line.
6.Press the power ,then the LED Light.
7.Press the Up or Down test the Panel .
8.After test finished,Power off .
Packing list

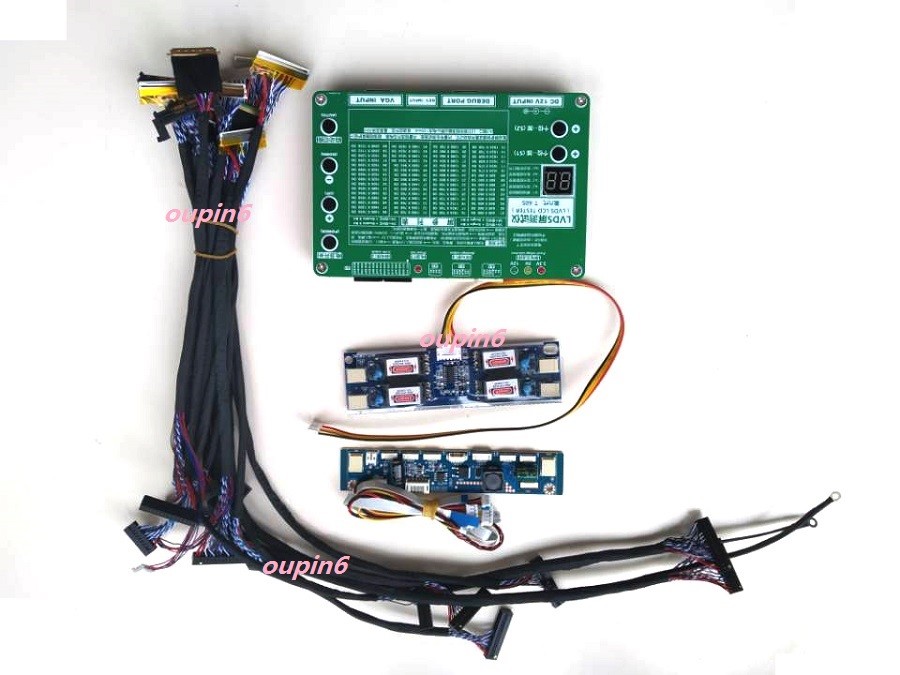

1 .14 pieces of most common used Lvds screen cables for testing LCD and LED Laptop/TV screens .
2.1 piece of 1/2/4 Lamp Backlight Driver Board , and a new 12V AC power adapter.This backlit inverter can support 1 lamp,2lamps,4lamps CCFL backlight driver.Normally 4 lamps inverter only work when 4 lamps insert in.Or it will shut down.This backlit inverter can work perfectly as it has 4 independent transformers
3. 1 PCS 2018 New Test panel Tool Tester
4. 1 PCS LED inverter can support almost all kinds LED
Detailed information about the LVDS cables:
DF14-20Pin-Single8
Totally 14 pcs LVDS/FPC cables for 12''-65'' laptop/TV screen
Below shows how to use the Panel test tool
Now we take the LTN170X2-L02 for example
1.we check the panel all information as below
1.Connect the Power to the Panel tester ,the power input is 12V-3A or 12V-5A DC port 2.5MM and 5.5MM
2.Press S1 or S2 set The resolution ,such as the 1440*900 ,you need to set the display on 36 .
3.Choose the Panel supply Voltage ,press the Auto for 5 seconds .if you panel is 3.3V then you not need to Choose
4.Connect the LVDS cable and the Backlight Line.
5.Press the power ,then the LED Light.
6.Press the Up or Down test the Panel .
7.After test finished,Power off .
