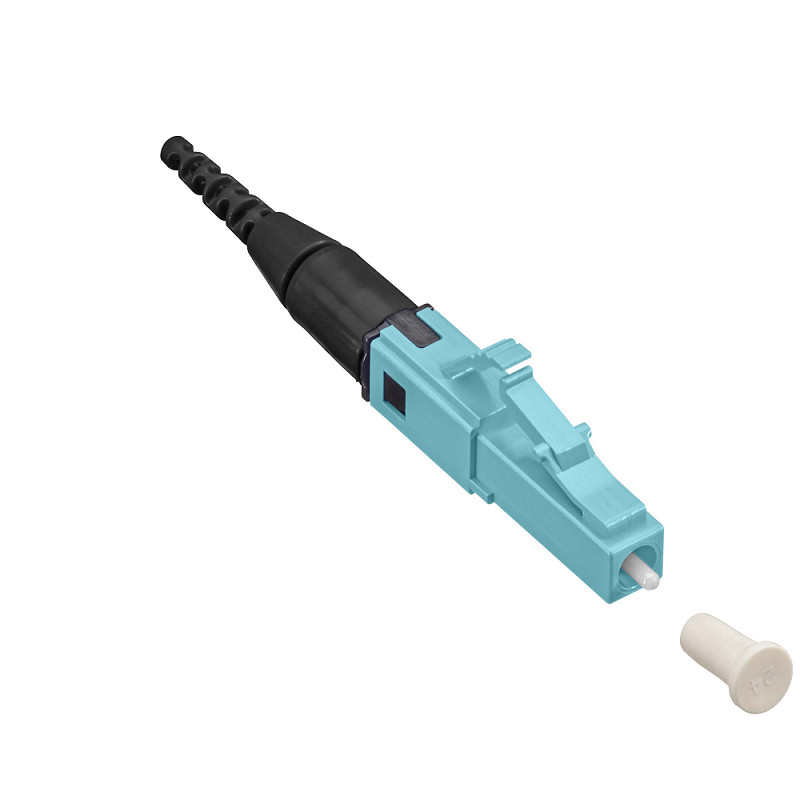

Leviton 499LC-AQ9 LC Fusion Splice-On Connector OM3/OM4 Multimode (Pack of 12) Click Thumbnails to EnlargeDESCRIPTION
Leviton 499LC-AQ9Splice-On Connector; LC Connector; Fusion Spliced Connector; Aqua Housing; 900µm OM3, OM4 Fiber; -40 to +75 C Operating
APPLICATION
Leviton’s FASTSPLICE Fusion Splice-On Connectors provideuncompromised optical and environmental performancein field installable LC, SC and ST connector types. Theysupport the rapid construction and maintenance requirementsof today’s enterprise and data center applications, utilizingreadily available fusion splicers. Used in combination withone-ended pre-terminated cable assemblies, the fieldinstallable fusion splice-on connectors offer the contractorthe ability to install the pre-terminated end, and then cut theblunt end to length, providing flexibility and time savings.FASTSPLICE connectors are also suitable for mostcentral office, MDU cabling, outside plant CATV andFTTx applications.
FEATURES
• Factory polished and field installable
• Compatible with most common fusion splicers includingAFL/Fujikura, Sumitomo, Fitel, and UCL Swift(UCL Swift holder PN F-20/30 required)
• Connectors support 900 micron buffered fiber or 250 microncoated fiber with appropriate fanout kit or furcation tubing
• Connectors sold in packs of 12
• Connectors built with precision manufacturedzirconia ferrules
• Individual connectors are in reclosable clamshells with partidentification and strip template
• LC connectors can be joined using optional duplex clips,Leviton part number 49991-CLP
• The Leviton FASTSPLICE Tool Kit includes tools to accessand strip common fiber cable constructions, and alsoseveral accessories specific to fusion splicing(see FASTSPLICE Tool Kit 49800-SOC specificationfor details)
• Each FASTSPLICE Universal Ferrule Holder (soldseparately, 49886-SH1) supports up to 100 or moresplice-on connector terminations
• No splice trays needed
PRODUCT SPECIFICATIONSPart Number499LC-AQ9Product TypePre-Polished Splice-On ConnectorConnector TypeLCConnector StyleFusion SplicedFiber Type900µm OM3, OM4Operating Temperature-40 to +75 CHousing ColorAquaWeight (lbs)0.30
