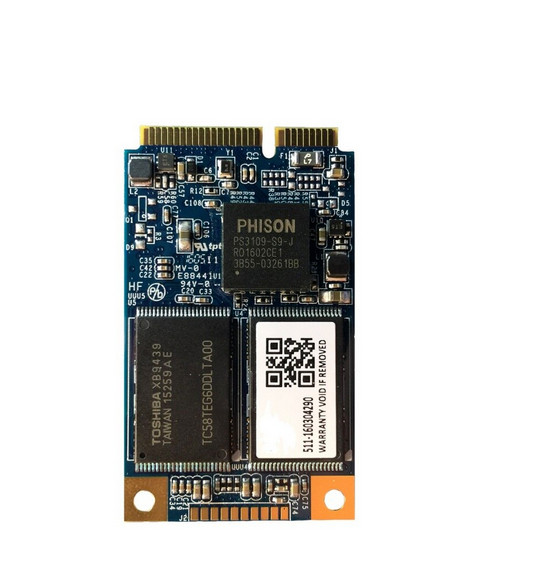

The Phison mSATA SSD is a flash based disk drive with SATA III compliant interface. It used high performance and reliability controller with Toshiba MLC based NAND flash tested at temperature of 0°C to 70°C environment. It provides sequential read and writes speeds of up to 400MB/s and 150MB/s respectively. Its high reliability and data protection makes it an ideal storage solution for the server and mobile environment. Due to its non mechanical nature, it has higher shock resistant and lower access time than traditional rotating hard disk. Built-in ECC and EDC ensure error-free transactions for the most demanding Grade MLC based NAND flash and components (support -40°C to 85°C)

Series

mSATA

MPN

M-Factors Storage

NAND Flash

Toshiba MLC

Form Factor

50mm mSATA Mini (JEDEC MO300b variation B)

Interface

Serial ATA: SATA III (6G)

Sequential Read

Up to 400MB/s

Sequential Write

Up to 150MB/s

Access Time

0.1 ms

Dimensions

50.80 x 29.85 x 4mm

Weight

< 4.6g

Support

Yes

SMART Support

Yes

NCQ

Up to 32 commands

Operation Temperature

-40 to 85°C

Storage Temperature

-40 to 85°C

Operating Voltage

3.3V ± 5%

Humidity

RH = 95% under 55°C

Idle

< 0.3W

Active

< 0.9W

MTBF

>2,000,000 hours

ECC Scheme

Built-in hardware ECC supports 72bit per 1K Byte data

Compliance:

RoHS / CE / FCC

OS Support

Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS, Linux
