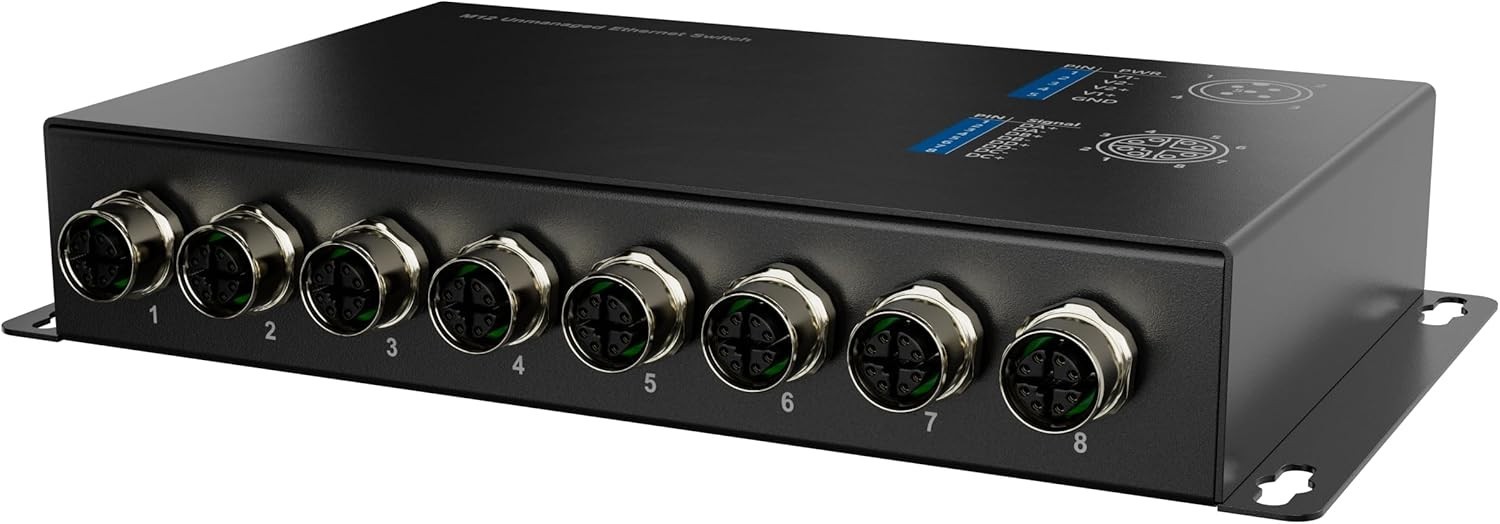

M12 Industrial Ethernet PoE Switch, 8-Port Gigabit M12 X-Coded Unmanaged Network Switch, Dual Power Input V1/V2 12–57V DC, IEEE 802.3af/at PoE, Rail & Vehicle ApplicationsNumber of Ports5Included ComponentsA-coded M12 to Power Pins Cable, RJ-45 to M12 X-code patch cable (1 ea)ColorGigabit Autosensing M12 X-CodeCompatible DevicesAny Ethernet Compatible DeviceAbout this item

• 8-Port Industrial Gigabit PoE Switch (M12 X-Coded): Unmanaged industrial Ethernet switch with 8× 10/100/1000 Mbps M12 X-coded ports, supporting IEEE 802.3af/at PoE/PoE+ (up to 30W per port) — ideal for PoE IP cameras, vehicle CCTV, PIS systems, and industrial Ethernet networks.
• 8-Port Industrial Gigabit PoE Switch (M12 X-Coded): Unmanaged industrial Ethernet switch with 8× 10/100/1000 Mbps M12 X-coded ports, supporting IEEE 802.3af/at PoE/PoE+ (up to 30W per port) — ideal for PoE IP cameras, vehicle CCTV, PIS systems, and industrial Ethernet networks.
• Wide Voltage Dual Power Input with Redundancy: Supports DC 12–52V (data only) and DC 48–57V for PoE, using M12 A-coded 5-pin power connector. Dual power input design allows backup power source connection for higher system reliability in mission-critical installations.
• Industrial-Grade Design, Fanless & Silent: Rugged metal housing (IP40), fanless convection cooling, and -40°C to +75°C operating temperature ensure stable operation in harsh environments with vibration, shock, dust, and electrical noise.
• True Plug-and-Play with Clear Status LEDs: Unmanaged design with auto-negotiation, auto MDI/MDI-X, no configuration required. Front LEDs show PWR, Link/ACT, and PoE status per port, making installation, testing, and troubleshooting fast and intuitive.
• Included in the Package (Ready for Immediate Testing): 1× Industrial 8-Port M12 Gigabit PoE Switch, 1× Pre-connectorized M12 power cable, 1× M12 X-coded to RJ45 cable (1 meter / ~3.3 ft) — ideal for quick setup, bench testing, and camera connection Mounting hardware User manual

Product descriptionFree Coded Cables Included

Two coded cables are included for fast setup: one RJ45-to-X-coded cable for quick testing, and one power cable for V1/V2 input wiring.

V1 / V2 Power Inputs Explained

V1 and V2 are independent DC power inputs for redundancy or dual supplies. A coded power cable is included to simplify correct wiring at installation.

X-Coded Ethernet Pinout

Standard M12 X-coded 8-pin Ethernet assignment. Use only X-coded cables for Gigabit speeds. Do not connect A-coded or power cables to Ethernet ports.

Power connector (V1 / V2)

5-pin A-coded M12 power input. V1 and V2 are independent power lines for redundancy or flexible wiring. Use the included A-coded power cable for start

Technical SpecificationsEthernet Port8 × M12 X-coded 8-pin female connectorsPower ConnectorM12 A-coded 5-pin female connectorLED IndicatorsPWR, Link/ACT, PoESwitching Capacity16 GbpsPacket Forwarding Rate11.9 Mpps (Million packets per second)MAC address table4K entriesPoE Specifications8-port PoE/PoE+ (IEEE 802.3af/at) - up to 30W of power per port.Supported ProtocolIEEE802.3, IEEE 802.3u, IEEE 802.3ab. IEEE 802.3xOperating ModeNetwork ports support full-duplex and half-duplex auto-negotiation, as well as MDI/MDI-X auto-sensing.Operating EnvironmentWorking temperature: -40℃～75℃; working humidity 10%～90% non-condensingCooling MethodFanless natural convection coolingPower SupplyDC 12–52VDimensions193.8mm(L) x 122.9mm(W) x 32.8mm(H)Industrial M12 Gigabit Ethernet Switch

The AN-UM-8GM12-POE is an unmanaged industrial Ethernet switch designed for reliable operation in harsh and demanding environments. It uses secure M12 connectors to provide stable Gigabit Ethernet connections in applications exposed to vibration, shock, dust, and electrical interference, making it ideal for industrial automation, transportation systems, outdoor installations, and machine-to-machine networking.

This industrial M12 switch provides 8 M12 Gigabit Ethernet ports supporting 10/100/1000 Mbps speeds with auto-negotiation, full and half duplex modes, and auto MDI/MDI-X. As an unmanaged Ethernet switch, it is completely plug-and-play and requires no software configuration, reducing installation time and simplifying long-term maintenance in field deployments.

Built for extreme conditions, the AN-UM-8GM12-POE features a rugged metal enclosure with IP40 protection and a fanless design for silent operation and low power consumption. It supports a wide operating temperature range from −40°C to 75°C, ensuring stable performance in industrial cabinets, roadside enclosures, vehicles, and outdoor control systems.

The switch supports wide-range dual power inputs from 12V to 57V DC, allowing flexible integration with common industrial power supplies. Dual power inputs provide redundancy and improved system reliability, helping prevent downtime in mission-critical networks.

PoE models support IEEE 802.3af and IEEE 802.3at standards, delivering up to 30W of power per port to connected devices such as IP cameras, industrial sensors, access points, and controllers. By combining data and power over a single M12 Ethernet cable, the switch helps reduce wiring complexity and improves installation efficiency in industrial Ethernet networks.

Productinformation

Product Dimensions

7.63"L x 4.84"W x 1.29"H

Item Weight

100 Grams

Interface Type

M12 A-code (Power), M12 X-code

Data Transfer Rate

1000 Megabits Per Second

Item Weight

3.53 ounces

Date First Available

January 14, 2026
