Description

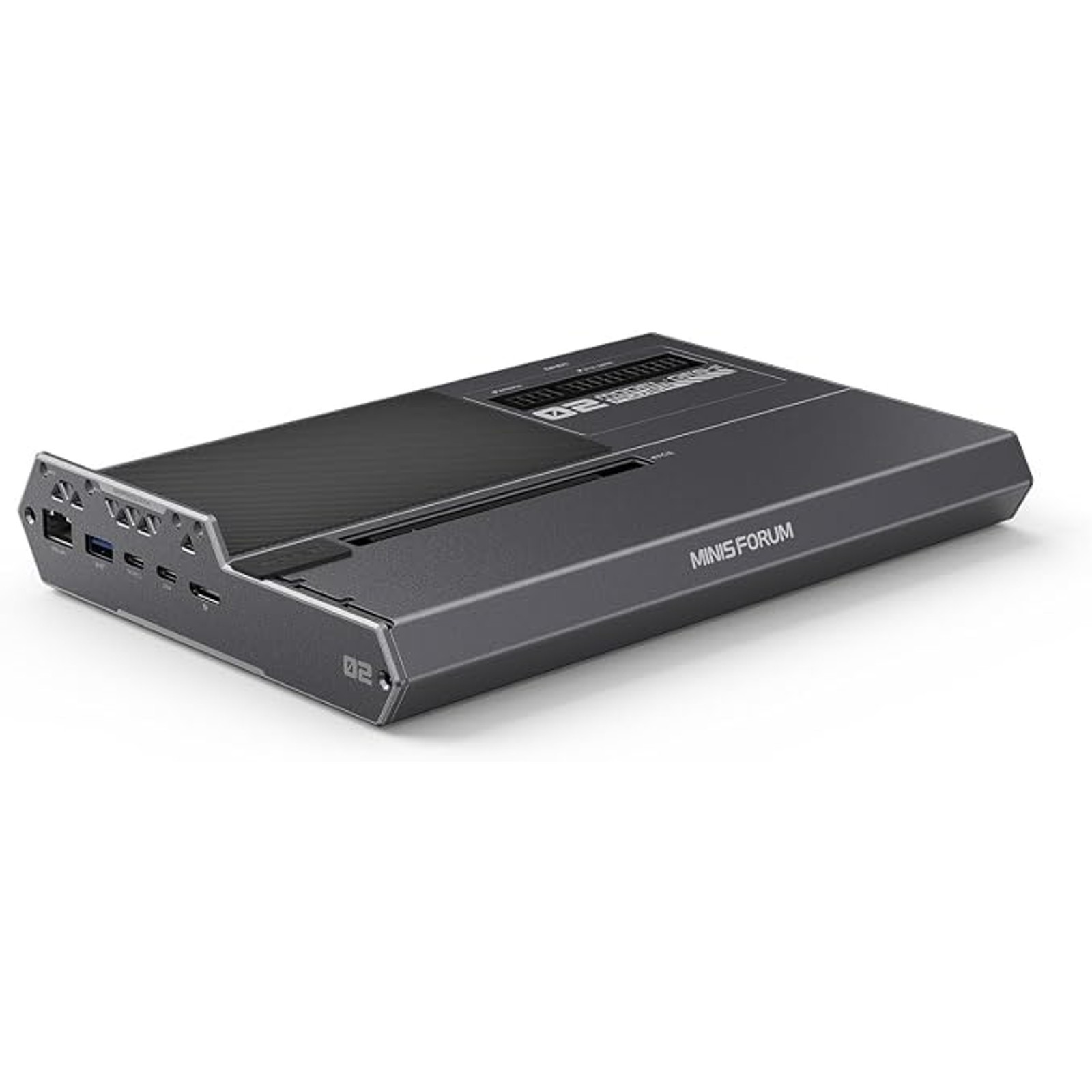

MINISFORUM DEG2 External GPU Docking Station
✨ Overview
The MINISFORUM DEG2 is a versatile external GPU docking station powered by the Intel JHL9480 chipset, offering both OCuLink (PCIe 4.0 ×4) and USB4 V2 (Thunderbolt 5 compatible) connectivity for maximum bandwidth flexibility. It combines high-speed GPU expansion with onboard 2.5GbE networking, an M.2 SSD slot, and ATX/SFX power supply support — all in a single compact enclosure.
⭐ Key Features
- 🔗 Dual Connection Modes: OCuLink (PCIe 4.0 ×4, up to 64 Gbps) or USB4 V2 (up to 80 Gbps) — switchable via toggle
- ⚡ Single-Cable Power Delivery: USB4 V2 upstream port delivers up to 140 W to your host device
- 💾 Built-in M.2 SSD Slot: M.2 2280 PCIe 3.0 slot supports drives up to 4 TB
- 🌐 2.5GbE LAN Port: High-speed wired networking built directly into the dock
- 🖥️ Full-Size PCIe x16 Slot: Accommodates standard desktop GPUs (electrical PCIe ×4)
- 🔌 ATX & SFX Power Supply Support: Compatible with standard ATX 24-pin + 8-pin and SFX power supplies
- 🎛️ Advanced Switch Controls: Includes OCuLink/USB4 V2 toggle, TGX switch, auto power-on switch, and reset/debug switch
📋 Specifications
- 🔧 Platform: Intel JHL9480
- 📡 OCuLink: ×1, PCIe 4.0 ×4, up to 64 Gbps
- 🔵 USB4 V2 Upstream (TB5 compatible): up to 80 Gbps / 140 W power delivery
- 🔷 USB4 V2 Downstream (TB5 compatible): up to 30 W power delivery
- 🖱️ USB-A: ×1 USB 3.2 (10 Gbps) + ×1 USB 3.2 (5 Gbps)
- 💿 M.2 Slot: 2280 PCIe 3.0 ×1, up to 4 TB
- 🌍 LAN: ×1, 2.5 GbE
- 📐 PCIe Slot: x16 (electrical ×4) ×1
- 🔋 Power Connector: ATX 24-pin + 8-pin (MB)
- 💡 LED Indicators: Power status LED ×1, Debug LED ×9
- 📏 Dimensions: 258.9 × 174.17 × 42.75 mm (10.2 × 6.9 × 1.7 in)
