please make sure this item is the correct one your wanted before purshasing.

Motherboard Description:

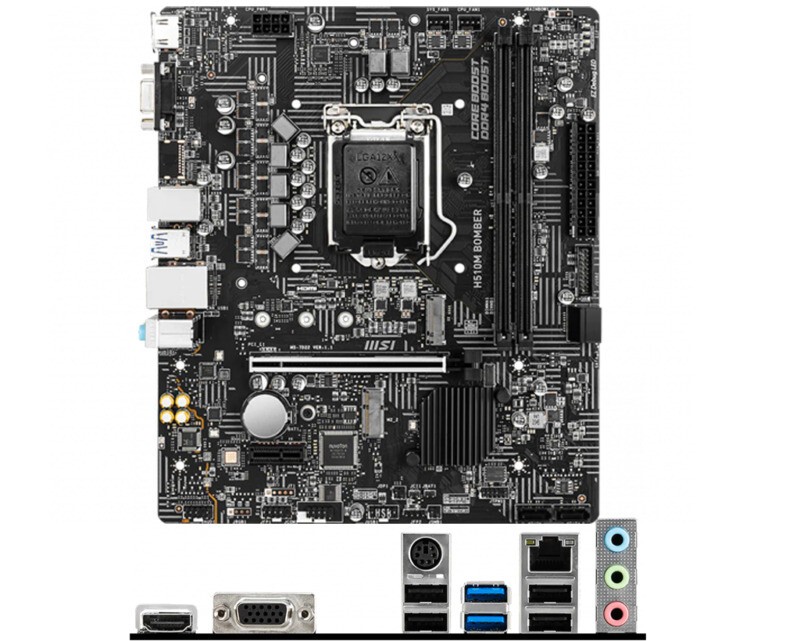

MSI H510M BOMBER Motherboard Intel H510 LGA1200 Micro ATX 2xDDR4 HDMI VGA 1x M.2

Instructions:

Please DO NOT use fake memory, because the motherboard maybe can't support.

Please DO NOT use single-side memory, because some motherboards can't support.

Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.

Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package Included:

1 * motherboard

2 * sata cable

1 x I/O back panel

Product information

CPU

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

CHIPSET

Intel® H510 Chipset

MEMORY

2x DDR4 memory slots, support up to 64GB1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT

1x PCIe x16 slot (From CPU)

Support up to PCIe 4.0 for 11th Gen Intel® CPU

Support up to PCIe 3.0 for 10th Gen Intel® CPU

1x PCIe 3.0 x1 slot (From PCH)

1x M.2 slot with E key for WiFi module only(M2_2)

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 2

1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz1

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

STORAGE

4x SATA 6Gb/s ports (From H510 Chipset)

1x M.2 slot (Key M)

M2_1 slot (From H510 Chipset) 1

Supports up to PCIe 3.0 x4

Supports 2242/ 2260/ 2280 storage devices

SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Intel® H510 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)

AUDIO

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Intel® I219V 1Gbps LAN controller

INTERNAL CONNECTORS

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

1x USB 2.0 connector (supports additional 2 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x System panel connectors

1x Serial port connector

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

BACK PANEL PORTS

HDMI

VGA

Mouse / Keyboard

LAN port

Audio connector

USB 2.0

USB 3.2 Gen 1 5Gbps Type-A

USB 2.0

DIMENSIONS

mATX ; 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

MOUNTING
