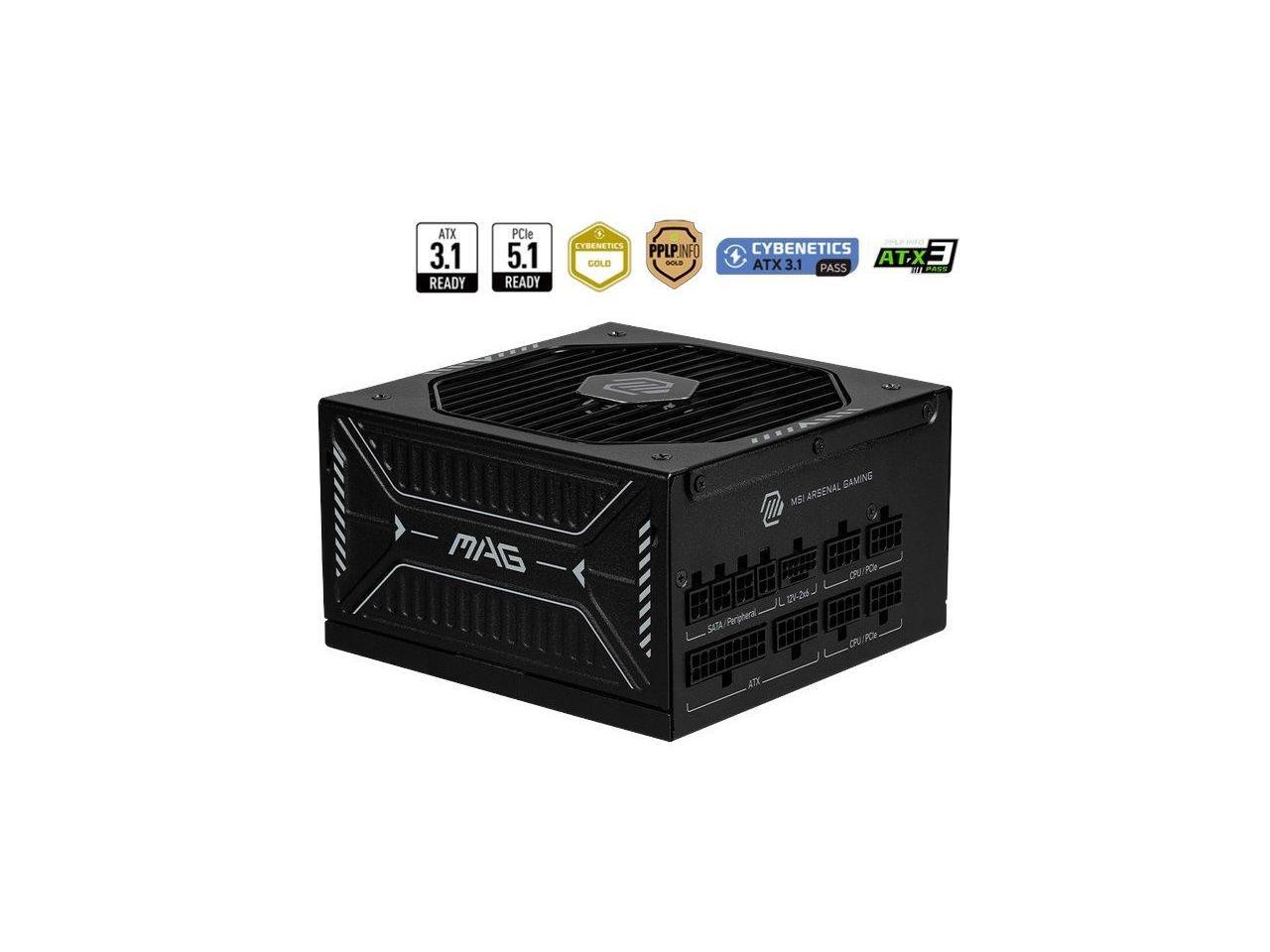

MSI MAGA850GLSPCIE5 MAG A850GLS PCIe 5.1 Fully Modular Power Supply 850W MSI MAGA850GLSPCIE5 MAG A850GLS PCIe 5.1 Fully Modular Power Supply 850WEnergy Efficiency Certification: 80 Plus Gold
Product Description
This item is brand-new, factory sealed.
MAG A850GLS PCIE5 850W Power Supply
MAG A850GLS PCIE5 850W Power Supply Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIAs 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
Supports Nvidia GeForce RTX 50 series graphics cards
Native 12V-2x6 connector
Dual-color 12V-2x6 cable
80 PLUS Gold certified
Optimized the sound level
Main 105oC capacitor
Embossed Jacket Cables, the cables are more bending and routing
Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Lasting Durability, Quietly Yours.
The MAG A850GLS PCIE5 provides 80 PLUS Gold-certified power efficiency, a native 12V-2x6 connector to support RTX 50 series graphics cards, and is ATX 3.1 ready, cooled by a 135 mm fluid dynamic bearing (FDB) fan for superior performance.
PCIe 5.1 GPU Support (Native 16-pin Connector)
Through the native 16-pin (12V-2x6) PCIe connector, the PSU can provide up to 600W of power to a PCIe 5.1 GPU, and includes yellow highlights to help identify a loose connection.
ATX 3.1 Ready
ATX 3.1 ready power supplies can handle up to 220% total power excursions and 3x GPU power excursions.
Gold Efficiency Certified
The efficiency of a power supply directly impacts system power consumption.
A Gold certification represents an exceptional standard for energy efficiency, offering up to 90% efficiency. This ensures reduced power consumption while maintaining peak performance at higher efficiency levels.Manufacturer Number
MAGA850GLSPCIE5Product Condition
NewForm Factor
ATXPower Supply
850 WattPower Efficiency Level
80 PLUS Gold (up to 90%)INPUT VOLTAGE
100-240VacINPUT CURRENT
100 - 240V
12AINPUT FREQUENCY
47 - 63 HzFAN SIZE
135 mmPFC TYPE
Active PFCPROTECTION
OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLOATX (24 PIN)
1EPS (4+4 PIN)
2PCI-E (6+2 PIN)
4SATA (15 PIN)
8FDD (4 PIN)
1PCI-E 5.1 (16 PIN)
1PERIPHERAL (4 pin)
3Item Dimension (L"xW"xH")
12 x 10 x 6
Weight
7.54 lbs
Warranty Information
10-year SpecificationPower DescriptionInput Frequency47-63 HzNumber of +12V Rails1Output Power850 WOutput Current
Input Voltage Range100 V AC - 240 V ACInput Voltage
Output Voltage Detail
- 5 V DC @ 20 A
- 3.3 V DC @ 20 A
- 12 V DC @ 70.8 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
Output Voltage
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V DC
- 5 V SB
Physical CharacteristicsForm Warranty7 YearInterfaces/PortsNumber of (6+2 pin) PCI Express Power Connectors4Number of 4-pin Molex Power Connectors3PCI Express Version5.1Number of (4+4 pin) CPU Power Connectors1Number of SATA Power Connectors8PCI Express ConnectorYesGeneral InformationBrand NameMSIMarketing Information Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA's 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks. NATIVE 12V-2x6 CONNECTOR 220% TOTAL POWER EXCURSION 80 PLUS GOLD DUAL COLOR 12V-2x6 CABLE 7 YEAR WARRANTY MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components. PERFORMANCE | Midnight Sound Level This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances. Product TypePower SupplyProduct NameMAG 850W Power SupplyManufacturerMSIManufacturer Part NumberMAGA850GLSPCIE5Product SeriesMAGTitleProduct TitleMSI MAG 850W Power Supply (MAGA850GLSPCIE5)Technical InformationFan Diameter135 mmSpecification ComplianceATX 3.1Efficiency90%Number of Fans1Fan Bearing TypeFluid Dynamic BearingProtection Type
- Over Current
- Over Temperature
- Over Power
- Short Circuit
- Over Voltage
- Under Voltage
- Surge & Inrush Protection
- No Load
Features
ModularYesPower Factor Correction (PFC)ActiveModular TypeFully Modular Shipping
