Specification:

Eight internal 6 Gbps SAS/SATA ports

Optional two mini-SAS internal connectors (SFF-8087)

6 Gbps throughput per port

800 MHz processor with LSI SAS2108 6 Gbps RAID on Chip (ROC) controller

x8 PCI-E 2.0 host interface

Onboard data cache (DDR2 running at 800 MHz): ServeRAID M5015: 512 MB

Battery Backup Unit BBU08 Live Failure Indicator

Connects to up to 32 SAS or SATA drives

RAID Levels: 0, 1, 5

RAIDExtension: 10, 50

Automatic recovery during reconstruction

Automatic Recovery during Reconstruction

Online Capacity Expansion (OCE)

Online RAID Level Upgrade ()

Global and Special Hot Spare Parts with Recoverable Hot Spare Parts Support Function

Automatic Reconstruction

Container Affinity

Emergency SATA Hot Spare Parts for SAS Array

Unified Controller Multipath (Failover)

I/O Load Balancing

Comprehensive and comprehensive RAID Management Suite

LSI 6Gb/s storage adapter is compatible with existing 3Gb/s SATA and SASDHDD

Spread Spectrum Clocking, SSC, Decision response Equalization, , Expander Self-Discovery, Self-Configuration, Standardized Zoning.

Package list:

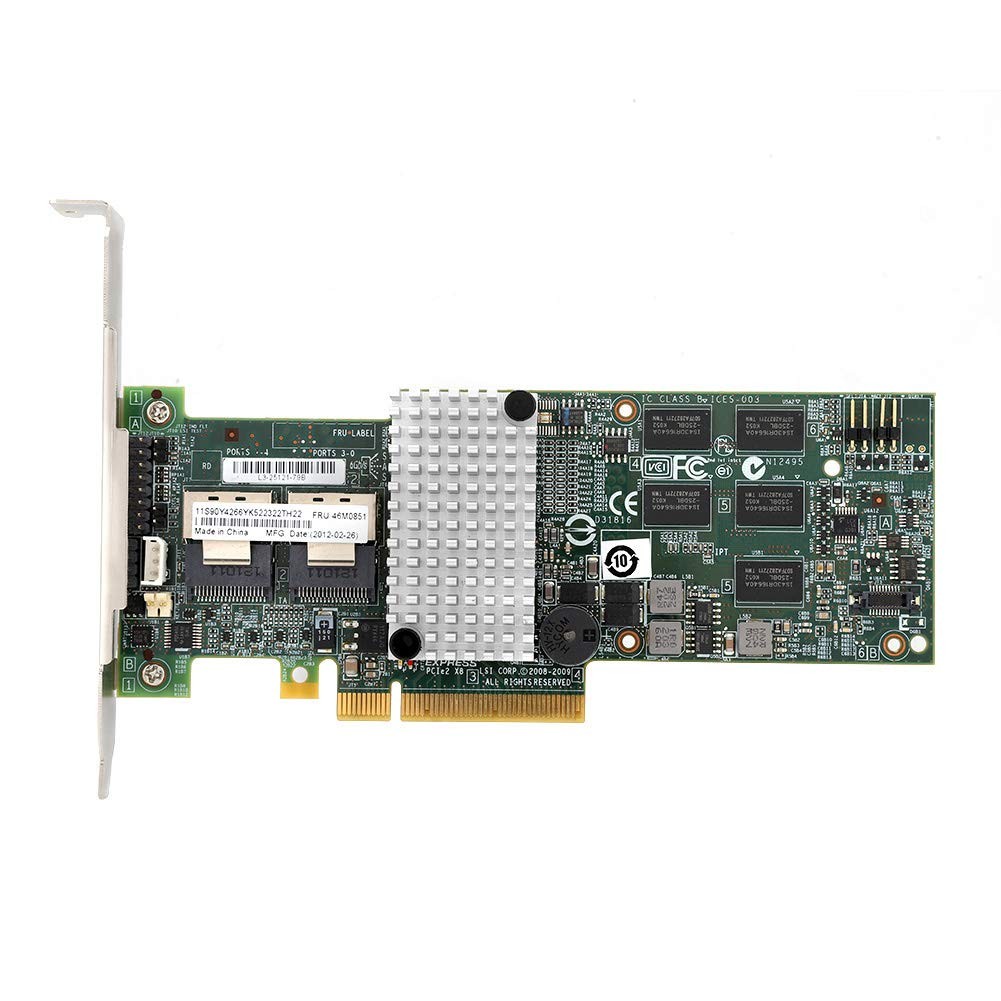

1 x M5015 Array Card

Note:

1. ServeRAID M5015 46M0829 46M0851 will be sent randomly.

2. This product was removed from Server, not a whole new product, no retail package.

3.This product is shipped in batches, and make sure you will not mind before ordering.

4.The product does not support MiniPcie socket.

Excellent reading and writing performance: maximum read rate: 2,875MB/s, maximum write rate: 1,850MB/s.
PCI-E 2.0 X8 can provide faster signal transmission for high bandwidth applications.
Supporting 3Gb/s and 6Gb/s SATA and SAS hard disk drives to maximize the flexibility of connection within the framework.
Low cross-section MD2 package is ideal for 1U and 2U environments with limited space.
Fast and stable connection, and easy to use.
