These units arrive tested working with 1 year hardware warranty.

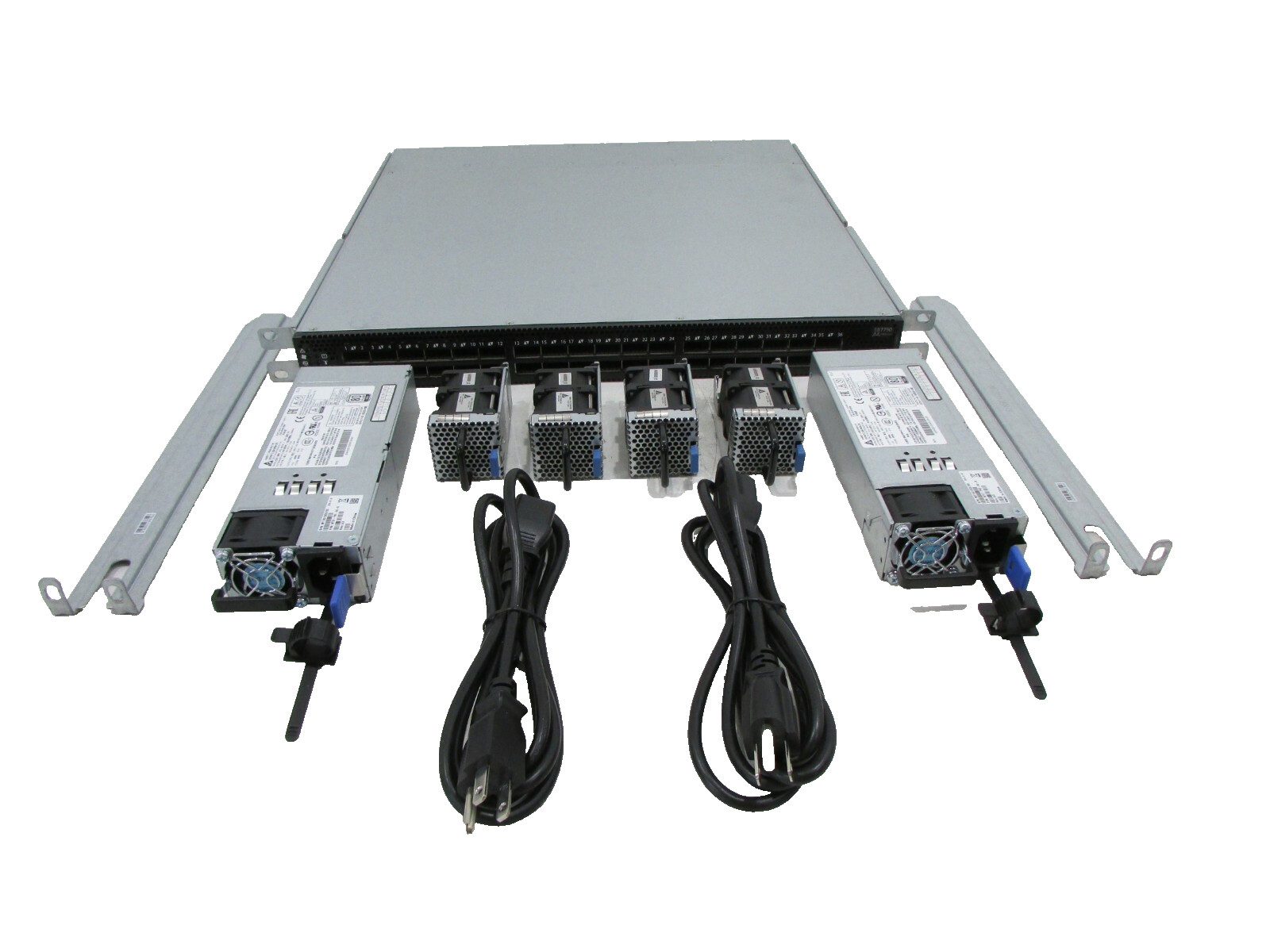

1xMellanox SB7790-Switch-IB™ based EDR InfiniBand 1U Switch, 36 QSFP28 ports, 2 Power Supplies (AC), unmanaged, standard depth, P2C airflow, Rail Kit
MSRP: $17,495.00ea
– 19’’ rack mountable 1U chassis – 36 QSFP28 non-blocking ports withaggregate data throughput up to7.2Tb/s (EDR)Switch Specifications – Compliant with IBTA 1.21 and 1.3 – 9 virtual lanes:8 data + 1 management – 256 to 4Kbyte MTU – Adaptive Routing – Congestion control – VL2VL mapping – Port mirroring – 4x48K entry linear forwardingdatabase
36-port Non-blocking Externally-managed EDR 100Gb/s InfiniBand Switch
SB7790 switch system provides the highest performing fabric solution in a 1U form factor by delivering up to 7.2Tb/s of non-blocking bandwidth with 90ns port-to-port latency.
SCALING-OUT DATA CENTERS WITH EDR 100G INFINIBAND
Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments
and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox's next generation of Extended Data Rate (EDR) InfiniBand high-
speed smart switches.
SUSTAINED NETWORK PERFORMANCE
Built with Mellanox's latest Switch-IB™ InfiniBand switch device, EDR uses efficient 64/66 encoding while increasing the per lane signaling rate to 25Gb/s. SB7790 provides up to thirty-six 100Gb/s full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters. SB7790 enables efficient computing with features such as static routing, adaptive routing, congestion
control and enhanced VL mapping to enable modern topologies (SlimFly, Dragonfly+, 6D Torus). These features ensure the maximum effective fabric bandwidth by eliminating congestion hot spots.
