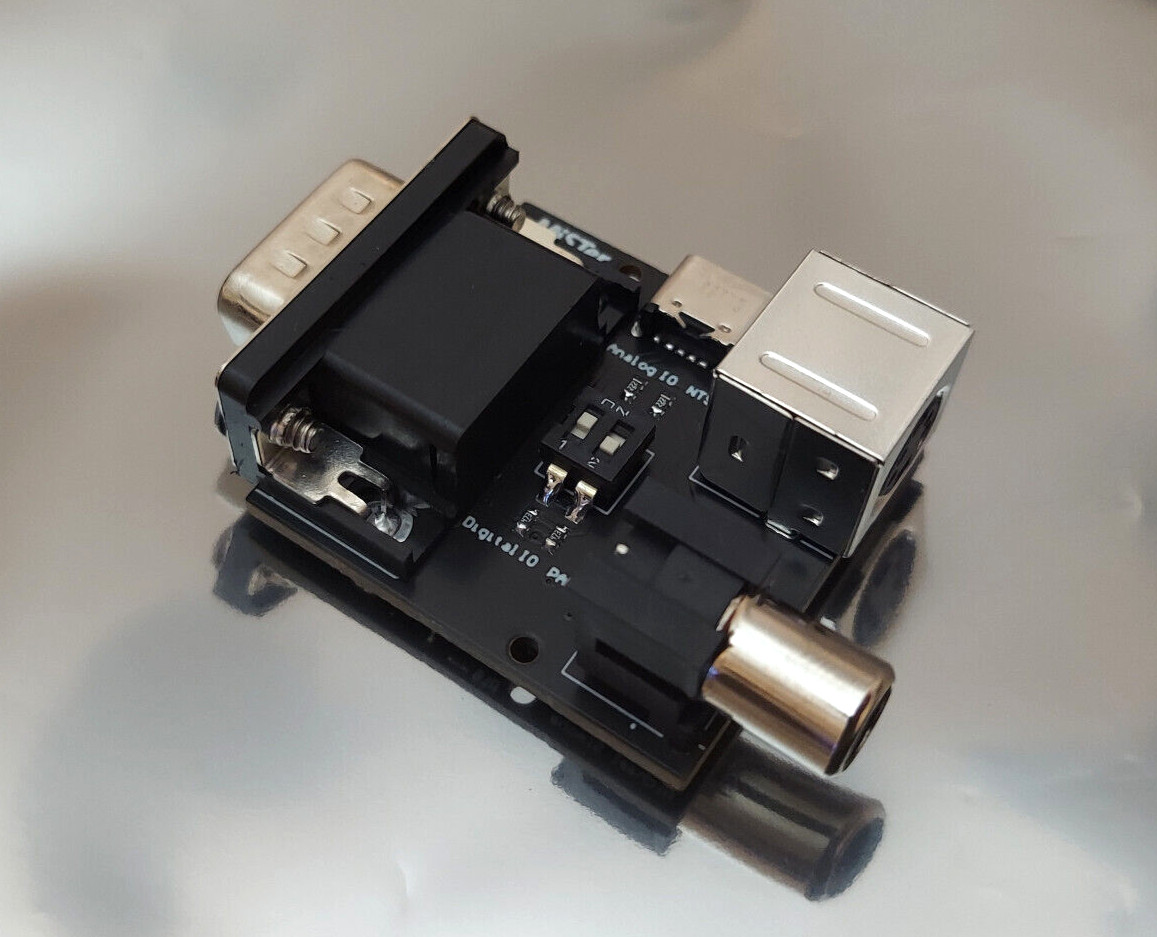

MiSTer FPGA Active Y/C Composite and S-Video Adapter w/ Case
Price: US $31.99
This adapter is only compatible with the MiSTer FPGA retro gaming console and the Analog Pocket equipped with the Analogizer adapter. It allows for simultaneous outputting of composite and S-video for playing on a CRT TV. The active adapter version includes a video amplifier to provide more accurate color/brightness. Note: Update to the latest version of the cores and mister.ini file. The latest mister.ini can be manually copied from:
Select Analog IO by setting the DIP switch on the adapter
Select NTSC or PAL by setting the second DIP switch on the adapter
Power the adapter by setting the VGA PWR jumper on the Analog IO board to 5V (Alternatively, you can power the adapter by connecting a USB C cable, but do not have both power sources connected at the same time)
Connect audio to the audio jack on the Analog IO board
Set vga_mode=svideo, ntsc_mode=0,composite_sync=1, and vga_scaler=0 in the MiSTer.ini file
Select Digital IO by setting the DIP switch on the adapter
Select NTSC or PAL by setting the second DIP switch on the adapter
Connect the HDMI-to-VGA converter and adapter
Power the adapter by connecting a USB C cable
Connect audio to the HDMI-to-VGA converter or to the Toslinkjack on a Digital IO board
Set vga_mode=svideo, ntsc_mode=0,composite_sync=1, vga_scaler=0, and direct_video=1 in the MiSTer.ini file
