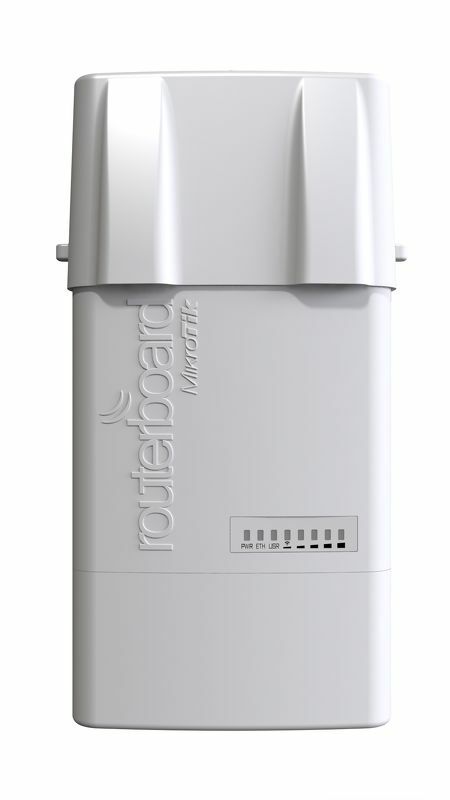

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.
Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
- RB912UAG-5HPnD-OUT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications Details Product code RB912UAG-5HPnD-OUT Architecture MIPSBE CPU AR9342 CPU core count 1 CPU nominal frequency 600 MHz Dimensions 246x135x50mm License level 4 Operating System RouterOS Size of RAM 64 MB Storage size 128 MB Storage type NAND Tested ambient temperature -40°C to 70°C Powering Details PoE in Passive PoE PoE in input Voltage 8-30 V Number of DC inputs 1 (PoE-IN) Max power consumption 12 W Wireless Details Wireless 5 GHz number of chains 2 Wireless 5 GHz Max data rate 300 Mbit/s Wireless 5 GHz standards 802.11a/n Wireless 5 GHz chip model AR9342 Ethernet Details 10/100/1000 Ethernet ports 1 Peripherals Details Number of SIM slots 1 Modem (Mini SIM) MiniPCI-e slots 1 Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 30 -96 54MBit/s 27 -78 MCS0 30 -96 MCS7 26 -75
