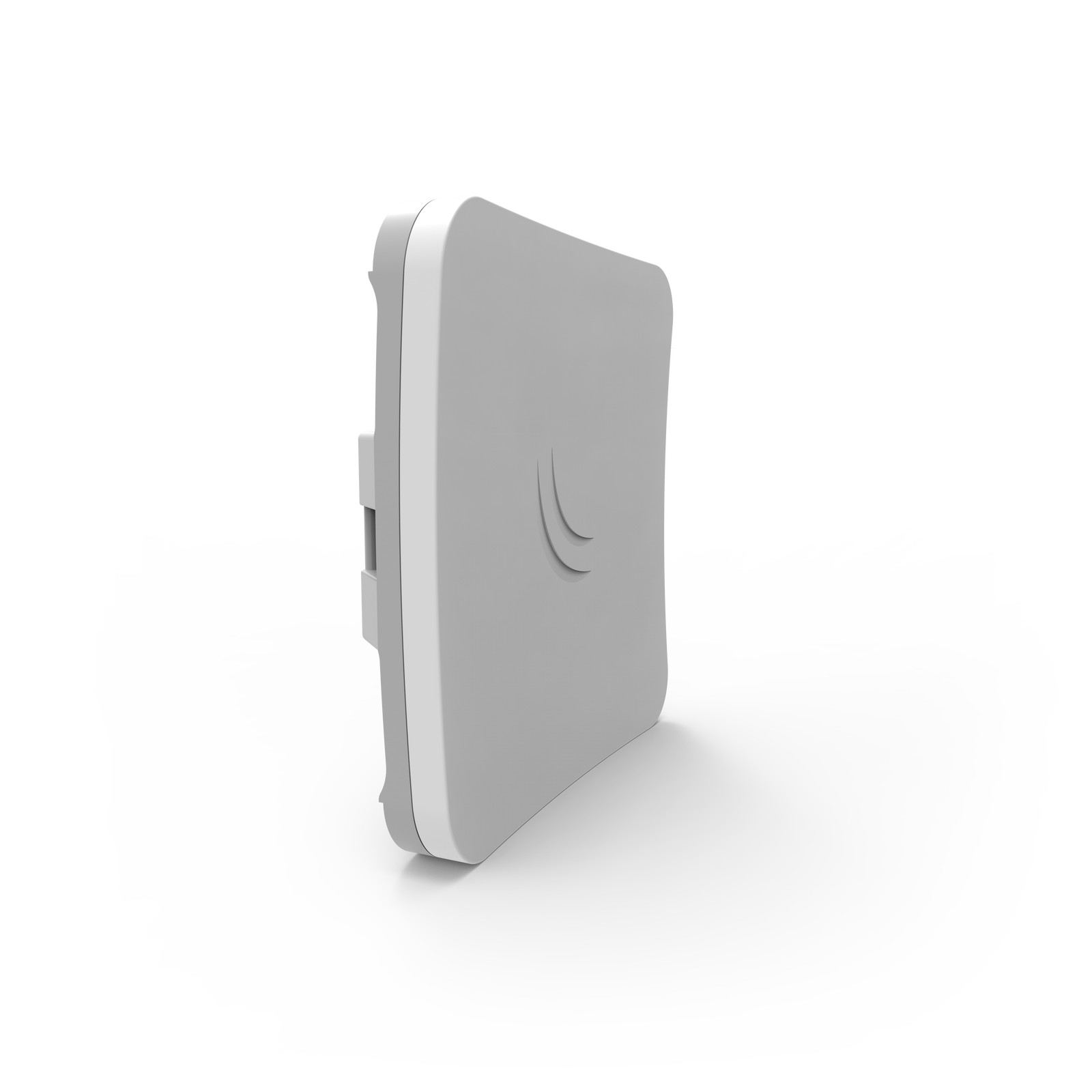

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).

The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).

Specifications Details Product code RBSXTsq5nD-US Architecture MIPSBE CPU AR9344 CPU core count 1 CPU nominal frequency 600 MHz Dimensions 129x129x34mm RouterOS license 3 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 70°C

Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 6 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 10-30 V Wireless specifications Details Wireless 5 GHz Max data rate 300 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n Antenna gain dBi for 5 GHz 16 Wireless 5 GHz chip model AR9344 Wireless 5 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 1 Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP54
