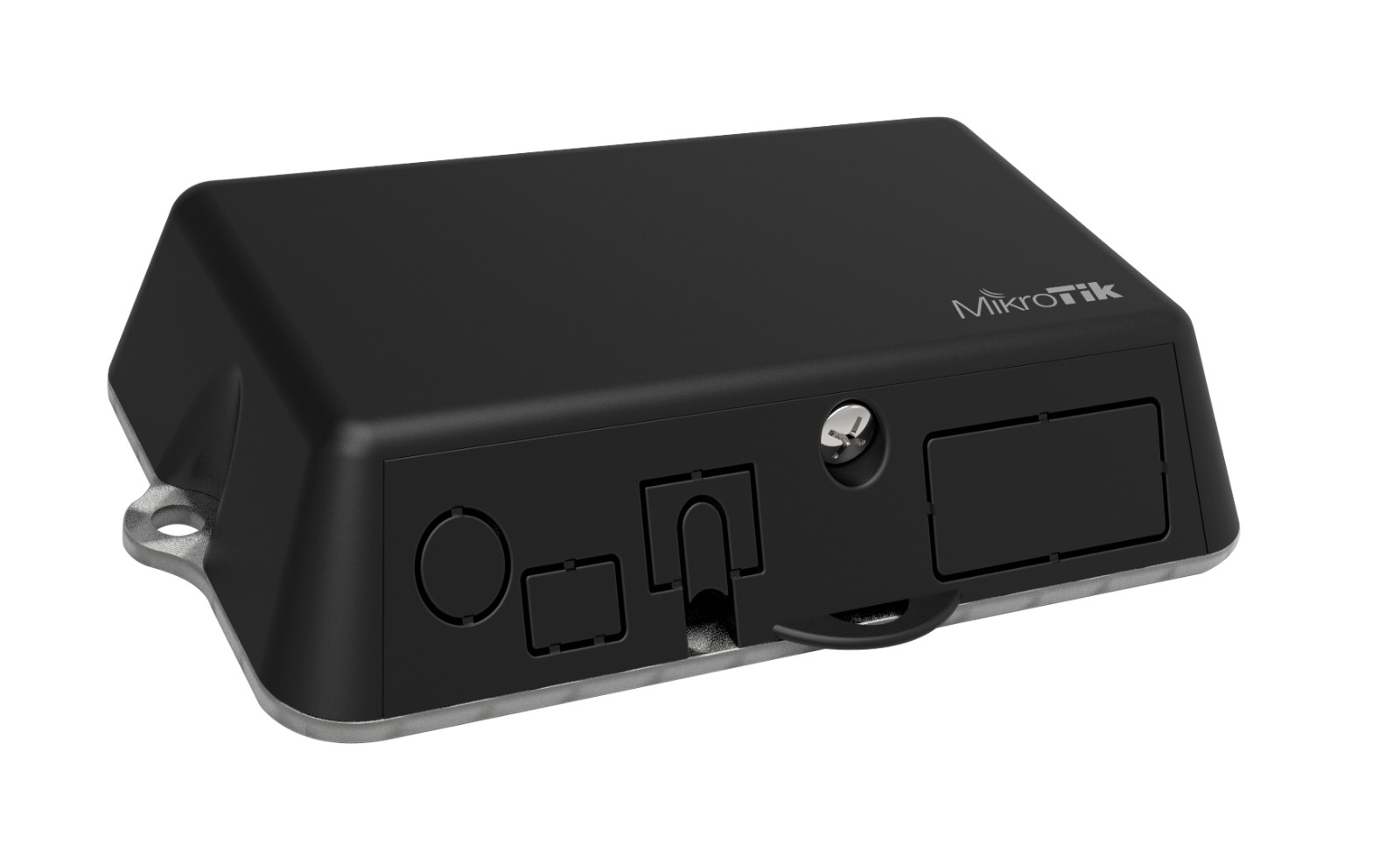

The LtAP mini is a compact, weatherproof wireless access point ideal for mobile and outdoor use. Key features include:

• LTE Connectivity: Integrated antennas (with u.fl connectors) and a miniPCI-e slot for custom LTE modems.
• Networking: 10/100 Ethernet LAN port for wired devices and RS232 serial port for debugging.
• Power Options: Supports 12-57 V PoE-in, 8-30 V DC jack, and 5 V microUSB.
• Design: Rugged enclosure with wall mounting kit, dual SIM slots, and GPS support.
• Vehicle Tracking: Built-in GPS module for real-time tracking, with external GPS antenna (optional, GPSANT).

This device is suitable for vehicles like cars, buses, or trains, with tools for custom tracking platform development.

LtAP Mini Specifications (RB912R-2nD-LTm)General

• CPU: QCA9531, 1 core, 650 MHz (MIPSBE)
• Memory: 64 MB RAM, 16 MB FLASH storage
• OS: RouterOS with license level 4
• Size: 139 x 77 x 28.5 mm
• MTBF: ~100,000 hours at 25°C
• Operating Temp: -40°C to 70°C
• Price: $99.00

Power

• Inputs: 3 (DC jack 8-30 V, MicroUSB 5 V, PoE-in 12-57 V)
• Max Consumption: 9 W (4 W without attachments)
• Cooling: Passive

Wireless

• 2.4 GHz Wi-Fi:
  • Standards: 802.11b/g/n (Wi-Fi 4)
  • Max Data Rate: 300 Mbps (2 chains, 1.5 dBi antenna gain)
  • Chip: QCA9531

Network & Ports

• Ethernet: 1 x 10/100 Mbps port
• SIM Slots: 2 (Mini SIM)
• MiniPCI-e Slot: 1
• Serial Port: RS232

Other Features

• GNSS: GPS with u.FL connector
• Mode Button: Yes
• Enclosure: IP54 rated
• Certifications: CE, FCC, E-MARK, ROHS

Wireless Performance

• Transmit Power/Receive Sensitivity:
  • 1 Mbps: 22 dBm / -96 dBm
  • 54 Mbps: 18 dBm / -74 dBm
  • MCS7: 16 dBm / -71 dBm

Ideal for rugged environments, mobile connectivity, and GPS tracking applications.
