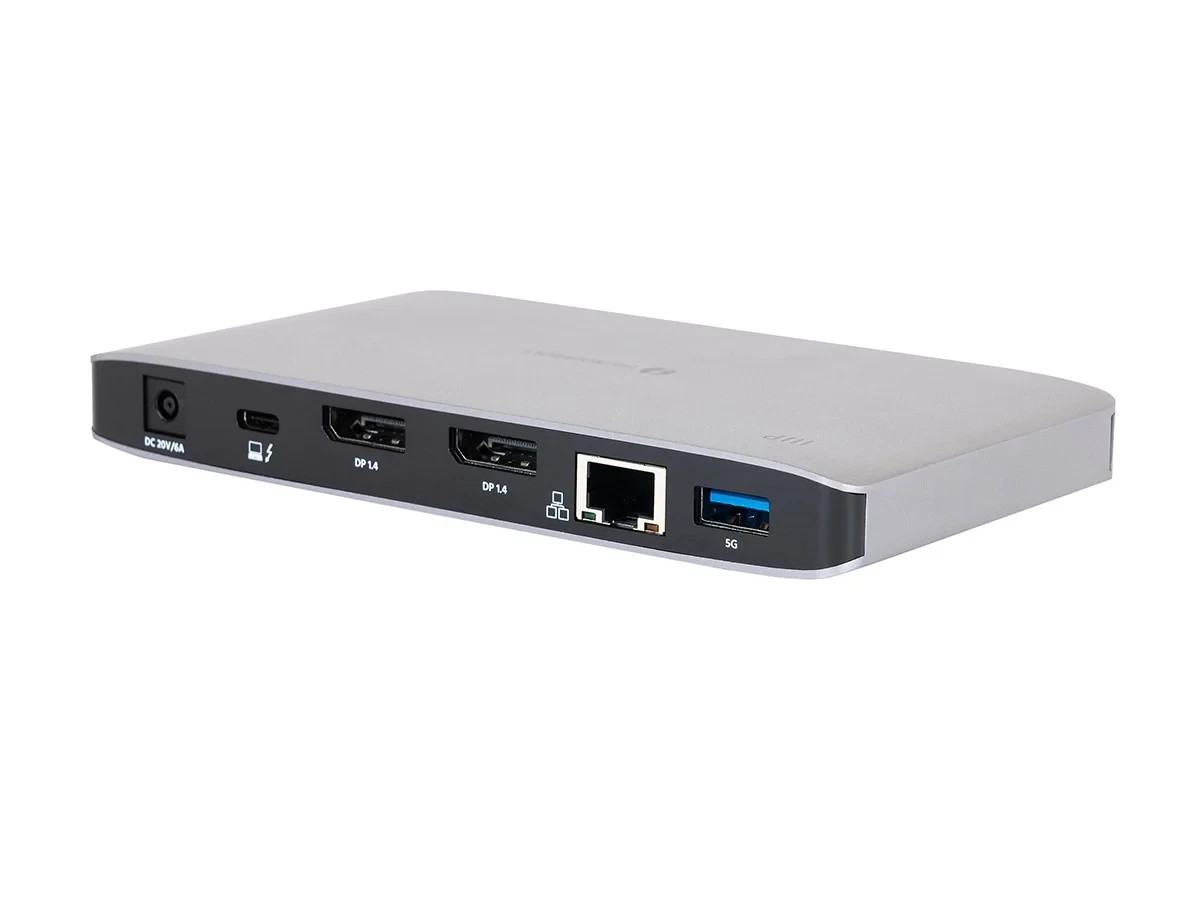

Monoprice™Thunderbolt™ 3 Dual DisplayPort® Docking StationWith support for two 4K@60Hz displays, 10Gbps data transfers, SD™ and microSD™ card slots, and Gigabit Ethernet
This Intel®-Certified Monoprice™ Thunderbolt™ 3 Dual DisplayPort® Docking Station adds a host of connectivity options to your Thunderbolt 3 or Multi-Function DisplayPort (MFDP) USB-C® compatible computer. It fully complies with the DisplayPort 1.4 standard and supports two 4K@60Hz displays or a single 8K@30Hz display. It features a Gigabit Ethernet connection, three USB-A ports, one USB-C port, and independently addressed SD™ and microSD™ card slots, which can both be used at the same time. It has a 3.5mm TRRS audio jack for use with a microphone and speakers. It supports USB data transfer rates up to 10Gbps and can provide up to 60W of Power Delivery (PD) to the host computer.
- Works with Thunderbolt™ 3 and Multi-Function DisplayPort® (MFDP) compatible USB-C® hosts
- Supports two 4K@60Hz displays or a single 8K@30Hz display
- Up to 60W of Power Deliver (PD)
- One USB 3.2 Gen 2-C, two USB 3.2 Gen 2-A, and one USB 3.2 Gen 1-A ports
- Supports USB data transfer rates up to 10Gbps
- 10/100/1000Mbps Gigabit Ethernet port
- SD™ and microSD™ card slots that can be used at the same time
- 3.5mm TRRS audio jack with automatic CTIA/OMTP detection
- Intel® Certified
TWO HIGH-RESOLUTION DISPLAYS
This docking station features two DisplayPort® 1.4 ports with support for two 4K@60Hz displays for Thunderbolt™ 3 hosts or two 4K@30Hz displays for MFDP-compatible USB-C® hosts. It also support a single 8K@30Hz display on Thunderbolt 3 hosts or a single 4K@60Hz display on MFDP-C hosts.
FAST DATA TRANSFERS
Enjoy up to 10Gbps USB data transfer rates with one USB 3.2 Gen 2-C® and two USB 3.2 Gen 2-A ports on the front panel. The USB 3.2 Gen 1-A port on the rear panel supports up to 5Gbps data transfer rate, more than 10x faster than the 480Mbps of the USB 2.0 standard. Additionally, the Gigabit Ethernet port supports data transfer rates of 10/100/1000Mbps.
ALL-IN-ONE
The host connection supports up to 40Gbps input bandwidth for Thunderbolt™ 3 hosts and 32.6Gbps for MFDP USB-C® hosts, which allows the docking station to support a host of video, audio, and data connections. You can connect two DisplayPort® displays, a Gigabit Ethernet network, SD™ and microSD™ card slots, analog audio, and one USB-C and three USB-A devices. It can even power the connected host computer with up to 60W of USB Power Delivery!
CONVENIENT AND READY TO GO
The Monoprice™ Thunderbolt™ 3 Dual DisplayPort® Docking Station is a true Plug and Play device that requires no additional drivers or special configuration. Just plug it in an start using it right out of the box using the included Thunderbolt 3 cable.
OFFICIALLY CERTIFIED
The Monoprice™ Thunderbolt™ 3 Dual DisplayPort® Docking Station is officially certified by Intel® for use with macOS® and Windows® computers.
PACKAGE CONTENTS
P/N36656 V2 (Current Version)36656 V1 (Previous Version)DisplayPort® Version1.41.2Maximum Single Display Resolution (TB3 Host)8K@30Hz5K@30HzMaximum Single Display Resolution (MFDP Host)4K@60Hz4K@30HzMaximum Dual Display Resolution (TB3 Host)4K@60Hz+4K@60Hz or 8K@30Hz+4K@30Hz4K@30Hz+4K@30HzMaximum Dual Display Resolution (MFDP Card SlotsSD™ and microSD™ (V3.0 UHS-I)NoneUSB-C® Ports1x USB 3.2 Gen 22x USB 3.1 Gen 2USB-A Ports2x USB 3.2 Gen 2, 1x USB 3.2 Gen 11x USB 3.1 Gen 2, 2x USB 3.1 Gen 1Power Delivery60W60WDimensions5.8" x 3.1" x 0.7"6.7" x 3.1" x 1.1"
