Motorola 650 ISDN Modem BRI U-Interface POTS 2-Port Desktop w/ Power Supply
Motorola 650 ISDN Modem BRI U-Interface POTS 2-Port Desktop w/ Power Supply
The Motorola 650 is a desktop ISDN Basic Rate Interface (BRI) modem and terminal adapter from Motorola's Network Access Products line. It connects to the telephone company's ISDN U-interface and provides both data and analog POTS (Plain Old Telephone Service) ports for simultaneous voice and data connectivity over a single ISDN BRI line. This unit is part of the Motorola 650 Series ISDN PAD family, supported under Motorola Network Access Products software Release 5.0.
Specifications & What's Included
- Brand: Motorola
- Model: 650 (650 Series ISDN)
- Type: ISDN BRI Modem / Terminal Adapter
- Form Factor: Desktop
- Front Panel LEDs: STATUS, TEST, PWR, ISDN-D, POTS 1, POTS 2
- Rear Port — ISDN-U: RJ-45 (U-interface to ISDN line)
- Rear Port — DATA 1: RJ-45
- Rear Port — DATA 2: DB25 (D-sub 25-pin)
- Rear — POTS: 2x analog telephone ports (POTS 1, POTS 2)
- Rear — PWR: proprietary 5-pin DIN power connector
- Interface Standard: ISDN BRI U-Interface
- Included: Ault SC300 external power supply
- Power Supply Input: 100–250V AC, 50–60 Hz, 0.7–0.3A
- Power Supply Output: +5V/4.0A, +12V/1.0A, −12V/0.6A (max 25W total)
- Power Supply Manufacturer: Ault Inc. (I.T.E. Power Supply Model SC300), made in Thailand
- Included: Gray RJ cable, 24 AWG, ETL verified, with RJ-style connectors
- Included: Motorola 630 Series Operator's Guide (spiral-bound)
- Included: Motorola Network Access Products Software Release Notice, Part No. T0001-14 Rev B, May 1997, Release 5.0
- Original Motorola box included
- Compatible software platforms per release notice: Motorola Vanguard 100/100PC, 200, 300/305, 310 ISDN Router Series, 320, 650 ISDN PAD Series, 6500, 6520, 6560
Applications
The Motorola 650 ISDN modem was designed for small office and remote site connectivity over ISDN BRI lines in the mid-to-late 1990s, when ISDN was widely deployed as a higher-speed alternative to analog dial-up for Internet access, WAN links, and LAN-to-LAN bridging. The U-interface port connects directly to the ISDN network termination point provided by the telephone company, while the two POTS ports allow standard analog phones or fax machines to share the same physical ISDN line. The DATA 1 (RJ-45) and DATA 2 (DB25) ports provide connectivity for routers, workstations, or other DTE equipment. The 650 Series was part of Motorola's broader Network Access Products family, which included the Vanguard router line and the 6500/6520/6560 access servers. ISDN BRI equipment of this type is now largely obsolete in North America, where ISDN has been decommissioned by most carriers, but units remain in use in legacy enterprise environments, certain international markets, and among collectors of late-1990s networking hardware.
Condition: Open Box

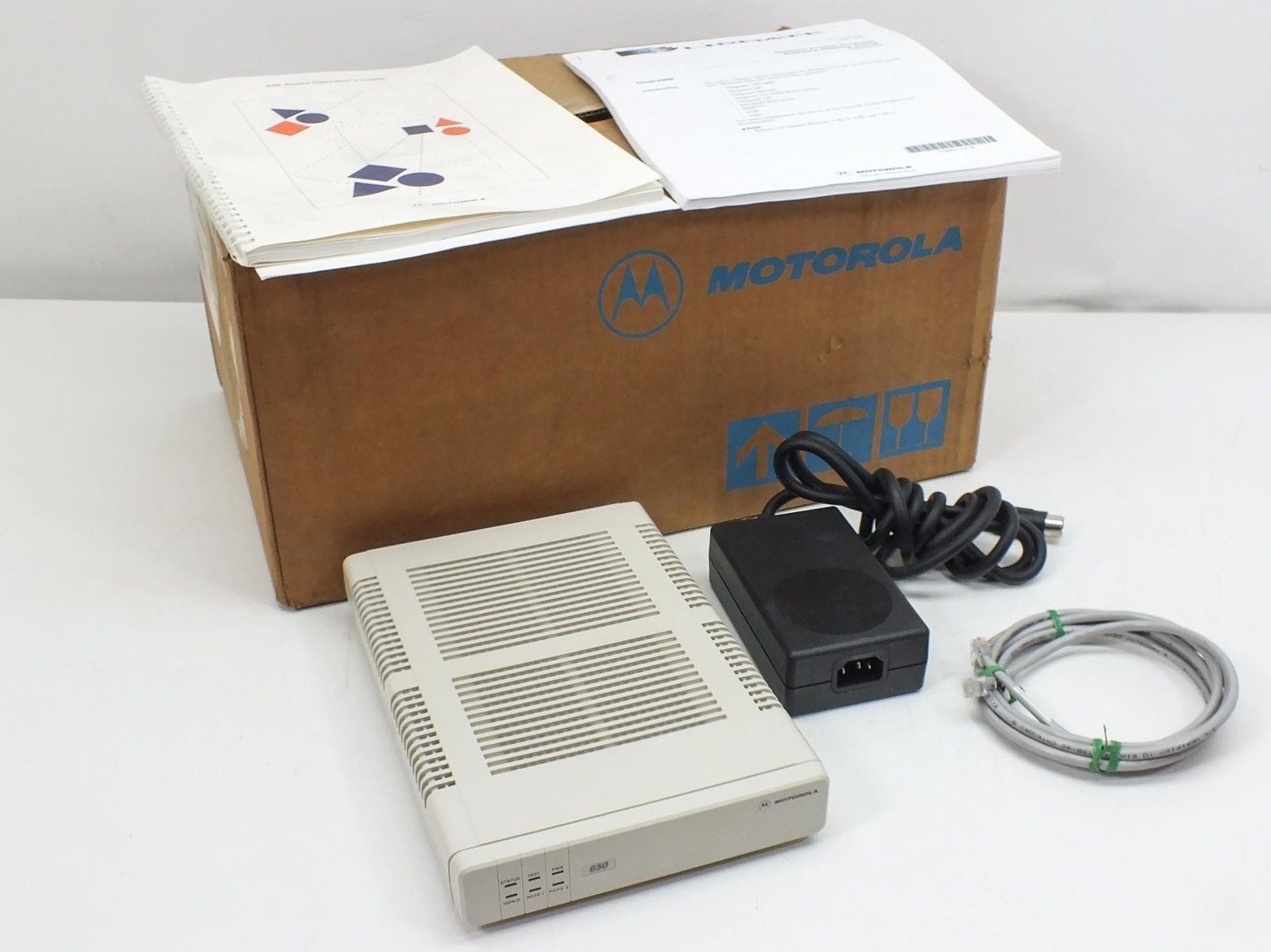

This Motorola 650 ISDN Modem is open-box and appears to be new and unused from the manufacturer. The unit shows no signs of use and comes with all original accessories: the Ault SC300 external power supply, a gray RJ cable, the 630 Series Operator's Guide, and a Motorola Network Access Products Software Release Notice (Part No. T0001-14, Rev B, May 1997). The original Motorola box is included. Please view our photo set and contact us if you have any questions. Visit Our Store
