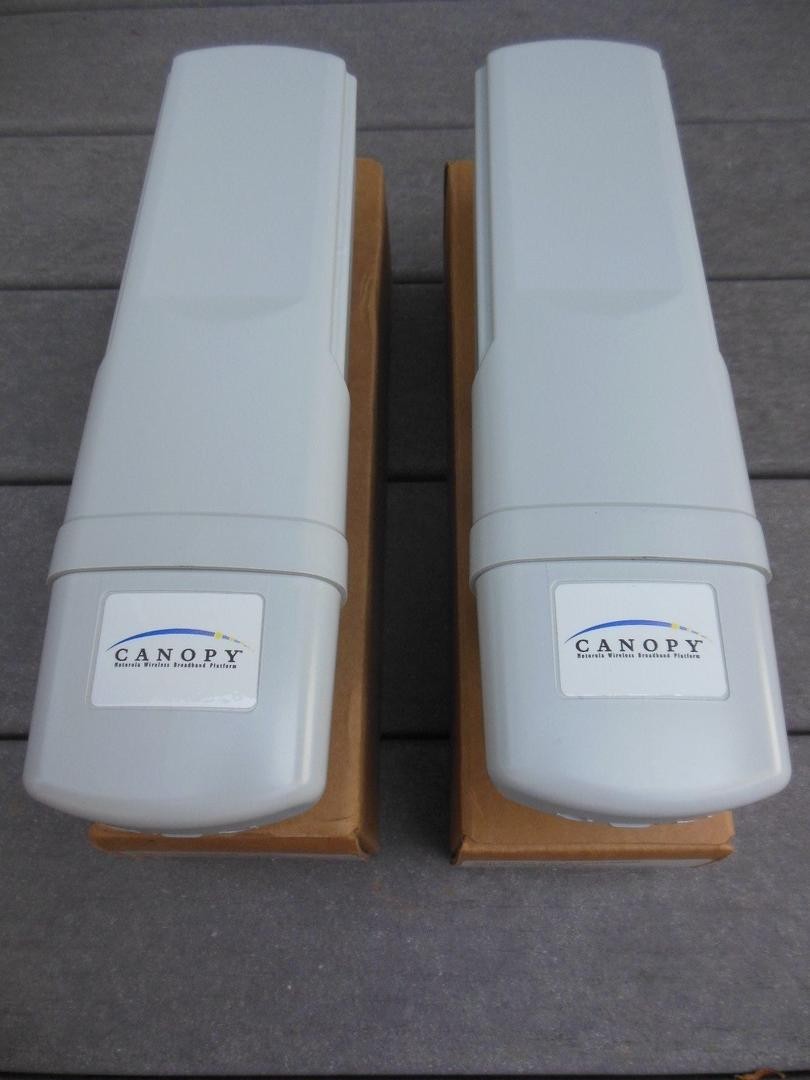

### Motorola Canopy / Cambium Networks 5700BH20 Backhaul 20Mbps Complete Link - 5.7GHz Wireless BridgeEstablish reliable point-to-point wireless connectivity with the Motorola Canopy (now Cambium Networks) 5700BH20 Backhaul Complete Link. Operating at 5.7GHz, this robust backhaul solution delivers up to 20 Mbps signaling rate and 14 Mbps aggregate useful throughput, ideal for extending networks in line-of-sight environments up to 1 mile (1.6 km). This complete link includes everything needed for deployment, making it suitable for ISPs, enterprises, or remote site bridging. The default IP address of 169.254.1.1 for easy setup.#### Key Features:
- **Part Number**: 5700BH20
- **Frequency and Band**:
- Frequency Range: 5725-5850 MHz (ISM band)
- Non-overlapping Channels: 6
- Channel Width: 20 MHz
- Channel Spacing: Every 5 MHz
- **Performance**:
- Signaling Rate: 20 Mbps
- Typical Aggregate Useful Throughput: 14 Mbps
- Typical LOS Range: 1 mi (1.6 km)
- Modulation Type: High Index 4-level Frequency Shift Keying (FSK), optimized for interference rejection
- Latency: 2.5 msec
- Carrier to Interference Ratio (C/I): ~3 dB @ 10 Mbps, ~10 dB @ 20 Mbps at -65 dBm
- Nominal Receiver Sensitivity: -79 dBm
- **Antenna**:
- Antenna Gain: 7 dB
- EIRP: 30 dB, 1 W
- Antenna Beam Width: 3 dB beam width 60 degrees, Azimuth and Elevation
- **Power and Consumption**:
- DC Power (typical): 0.34 A @ 24 VDC = 8.2 W
- **Connectivity and Management**:
- Interface: 10/100 Base T, half/full duplex, rate auto-negotiated (802.3 compliant)
- Protocols Used: IPv4, UDP, TCP, ICMP, Telnet, HTTP, FTP, SNMP
- Network Management: HTTP, TELNET, FTP, SNMP Version 2c
- **Security**: DES encryption capable
- **Environmental Durability**:
- Temperature Range: -40°C to +55°C (-40°F to +131°F)
- Wind Survival: 190 km/hr (118 mph)
- Mean Time Between Failure (MTBF): 40 years
- Outdoor Use: Yes
- **Physical Specifications**:
- Dimensions: 11.75 in H x 3.4 in W x 3.4 in D (29.9 cm H x 8.6 cm W x 8.6 cm D)
- Weight: 0.45 kg (1 lb)
- **Access Method**: Time Division Duplex (TDD)
- **Certifications**: FCC ID: ABZ89FC5804, Industry Canada: 109W-5700, NYCE: 0202CE08128
- **Market Availability**: North America, Europe, South America, AsiaThis 5700BH20 complete link is a dependable, high-performance backhaul solution for cost-effective wireless networking. Condition: New In Original Box. Ships securely packaged. Contact us with any questions!*Note: Power supply not included unless specified. Ensure compatibility with your network infrastructure before purchase.*
