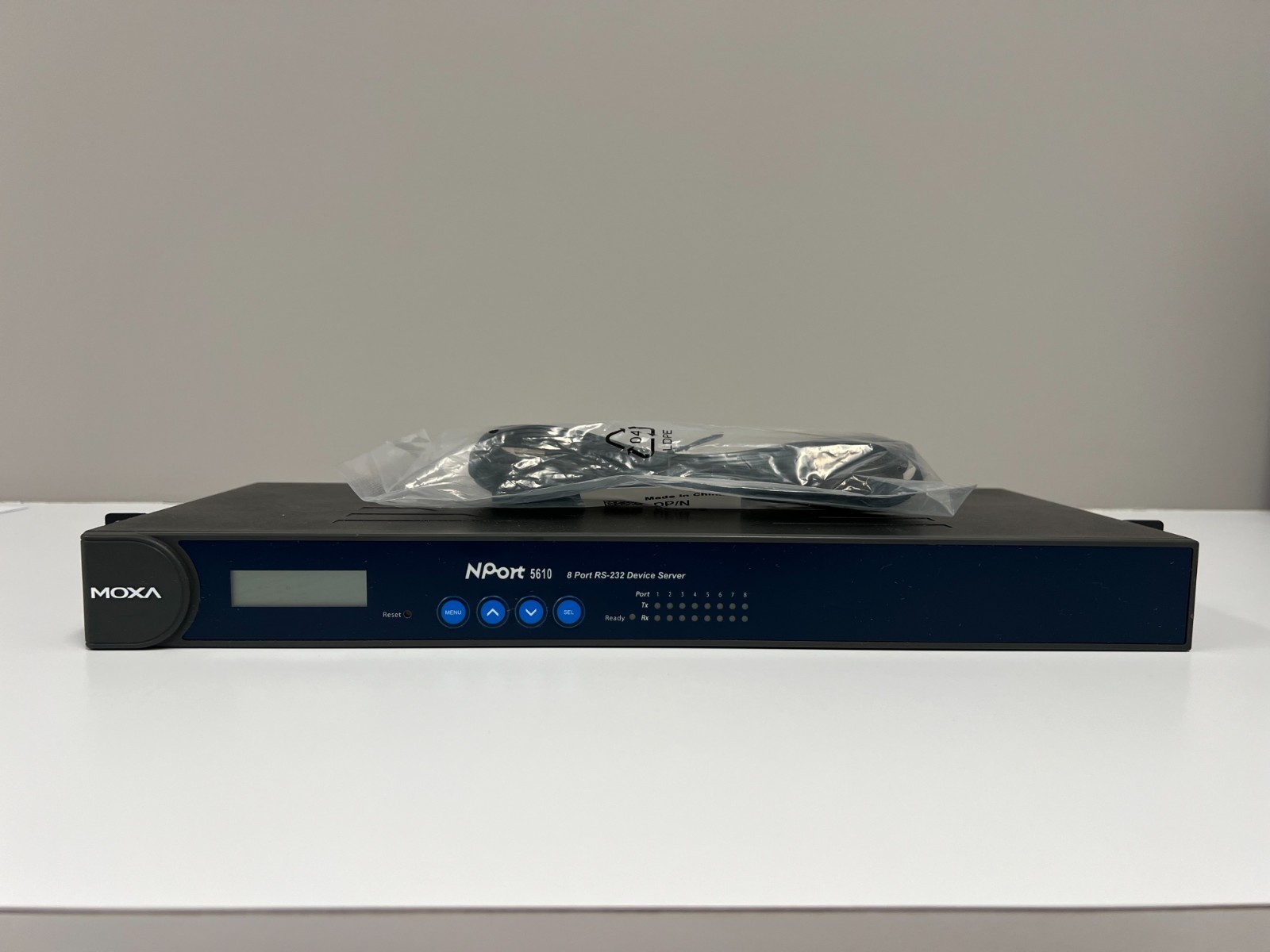

Moxa NPort 5610-8 8 Port RS-232 Rackmount Serial Device Serverwith Power CordIn excellent condition. Power cord was included
Overview
NetworkReadiness for up to 16 Serial DevicesOnly basicconfiguration is needed with the NPort® 5600 to connect up to 16 serial devicesto an Ethernet network.19-InchRackmount Device Server
NPort® 5600device servers come with Tx/Rx LEDs for the serial ports on the front panel,and 8 or 16 RJ45 serial port connectors on the rear panel. This makes theNPort® 5600 device servers suitable for a standard 19-inch rackmount, allowingyou to simplify operational, maintenance, and administrative tasks.
RealCOM/TTY Ports
Real COM/TTYdrivers are provided to make the serial ports on the NPort® 5600 recognizableas Real COM ports by Windows, or Real TTY ports by Linux. In addition tosupporting basic data transmission and reception, the NPort® drivers alsosupport the RTS, CTS, DTR, DSR, and DCD control signals.
LEDIndicators to Ease Your Maintenance Tasks
The SystemLED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector)provide a great tool for basic maintenance tasks and help engineers analyzeproblems in the field. The LEDs not only indicate current system and networkstatus, but they also help field engineers monitor the status of attachedserial devices.
AdjustableTermination and Pull High/Low Resistors
When usingtermination resistors to prevent serial signal reflection, it is important toset the pull high/low resistors correctly so that the electrical signal is notcorrupted. Since no set of resistor values is universally compatible for allenvironments, the NPort® 5650-8/16 has DIP switches on the bottom panel forsetting the termination and pull high/low resistor values.
Featuresand Benefits· Standard19-inch rackmount size· EasyIP address configuration with LCD panel (excluding wide-temperature models)· Configureby Telnet, web browser, or Windows utility· Socketmodes: TCP server, TCP client, UDP· SNMPMIB-II for network management· Universalhigh-voltage range: 100 to 240 VAC or 88 to 300 VDC· Popularlow-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Specifications
EthernetInterface
10/100BaseT(X) Ports(RJ45 connector) – 1
Magnetic IsolationProtection - 1.5 kV (built-in)
Ethernet SoftwareFeatures
Configuration Options - Telnet Console, Web Console (HTTP/HTTPS),Windows Utility
Management - ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217,Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter - IGMP v1/v2c
Windows Real COM Drivers - Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
Windows Server 2022, 2019, 2016, 2012 R2, 2012,2008 R2, 2008, 2003, 2000, and NT
Windows Embedded CE 6.0 and 5.0, Windows XPEmbedded
Linux Real TTY Drivers - Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers - macOS versions: 14, 13, 12, 11, and 10.1x
Arm®-based Platform Support - Windows 11, Linux Kernel 6.x, 5.x, and 4.x,macOS 14, 13, 12, and 11
Virtual Machine - VMWare ESXi (Windows 11/10),
VMware Fusion (Windows on macOS 14, 13, 12, 11,and 10.1x),
Parallels Desktop (Windows on macOS 14, 13, 12,11, and 10.1x)
Android API - Android 3.1.x and later
Time Management – SNTP
Security Functions
Authentication - Local database
Encryption – HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Security Protocols - HTTPS (TLS 1.2), SNMPv3
Serial Interface
Connector - 8-pin RJ45
No. of Ports - 8 ports
Serial Standards - RS-232
Baudrate - Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600,1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k,460.8k, 921.6k
