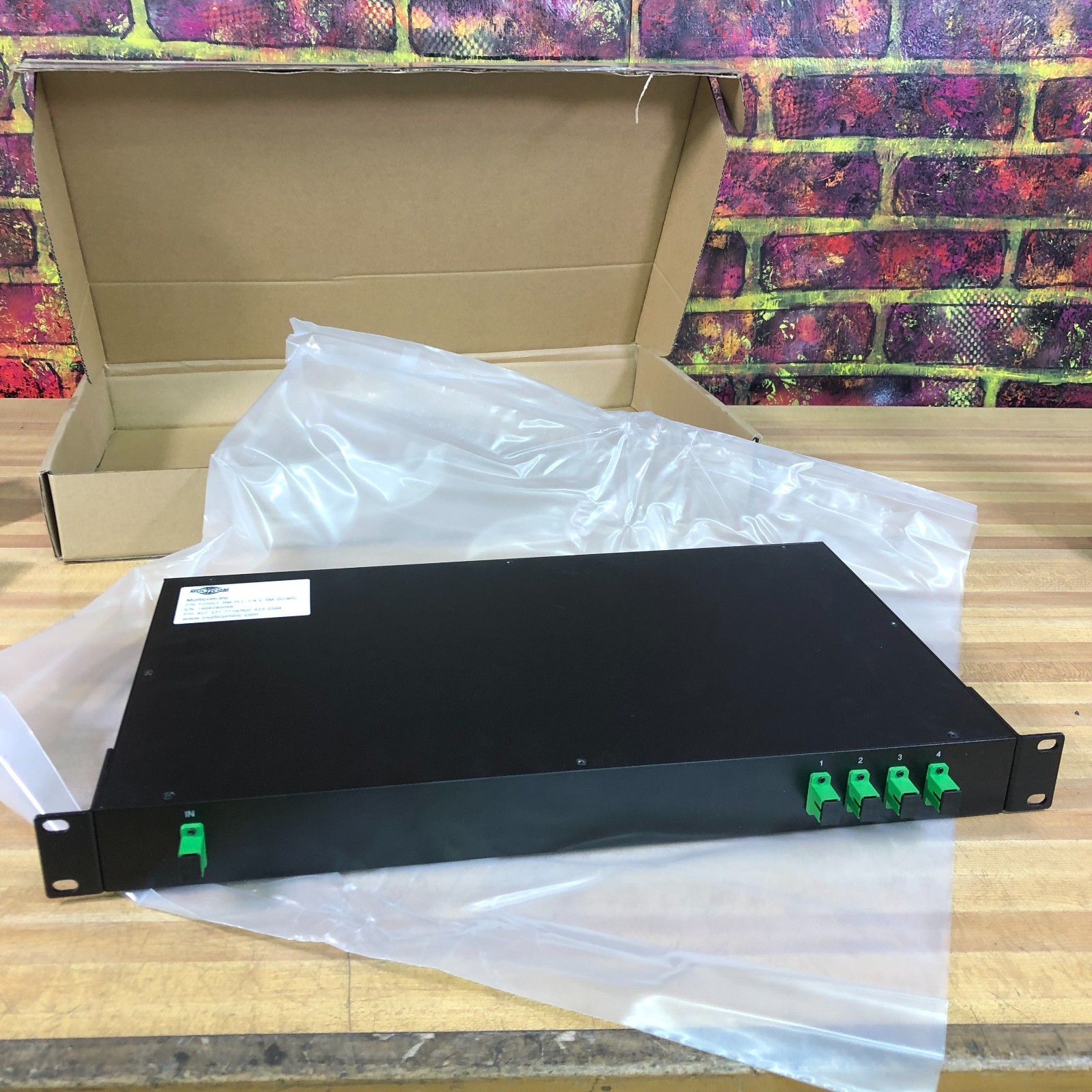

Multicom FOSPLF-RM-PLC-1/4-E-SM Fiber Optic Splitter – 1x4 Rack Mount Singlemode

The Multicom FOSPLF-RM-PLC-1/4-E-SM is a high-quality rack mount fiber optic splitter designed for professional optical distribution networks. Built with PLC (Planar Lightwave Circuit) technology, it ensures stable performance, low insertion loss, and excellent reliability for FTTH, FTTx, GPON, and EPON applications.

🔧 Key Specifications

• Model: FOSPLF-RM-PLC-1/4-E-SM
• Type: Rack Mount Fiber Optic Splitter
• Configuration: 1x4 (splits one input into four outputs)
• Fiber Type: Singlemode (SM)
• Connector Type: SC/APC (angled polish for low reflection)
• Technology: PLC (Planar Lightwave Circuit)
• Operating Wavelength: 1260–1650nm
• Insertion Loss: ≤ 7.1 dB (typical for 1x4 PLC splitters)
• Return Loss: ≥ 55 dB
• Polarization Dependent Loss (PDL): ≤ 0.2 dB
• Uniformity: ≤ 0.6 dB across all outputs
• Operating Temperature: -40°C to +85°C

🌟 Features

• Rack Mount Design: Fits standard 19” racks for easy integration into telecom and data center environments.
• High Reliability: Telcordia GR-1209 and GR-1221 compliant for long-term stability.
• Low Loss & High Uniformity: Ensures consistent signal distribution across all output ports.
• Broadband Operation: Supports multiple wavelengths for compatibility with GPON, EPON, and other PON systems.
• Durable Construction: Engineered for demanding commercial and industrial fiber optic networks.

📈 (FTTH) and Fiber-to-the-Building (FTTB)

Passive Optical Networks (PON)

CATV and IPTV distribution

Data center and enterprise optical networks

Test and measurement systems

This Multicom rack mount PLC splitter is ideal for service providers, ISPs, and network integrators who need a compact, reliable, and cost-effective solution for distributing optical signals to multiple endpoints.
