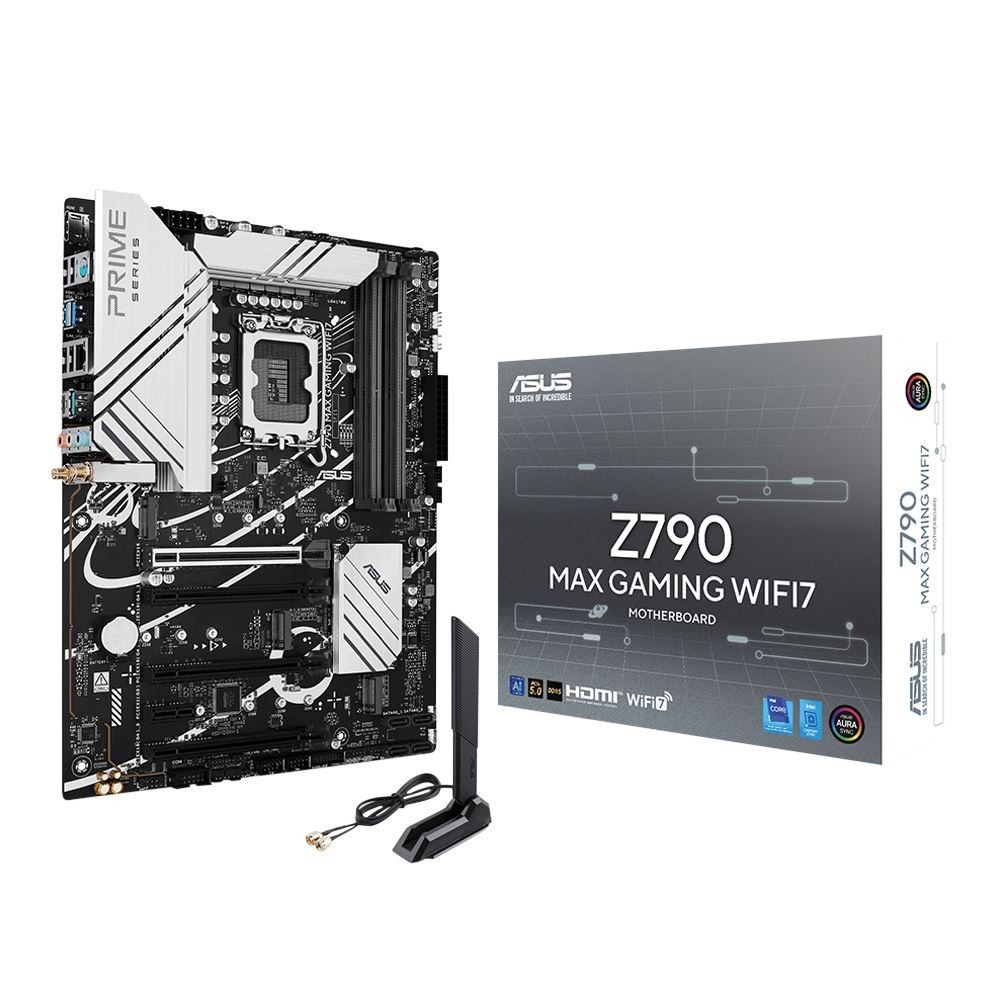

Brand New - ASUS Z790 MAX GAMING WIFI7 Intel LGA 1700 ATX Motherboard
Factory Sealed in retail box
Product InformationMfr Z790BIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOSManageabilityWOL
PXECPU SupportIntel CPU SupportCore i7
Core i5
Core i3
Celeron
Pentium
Core i9Socket TypeLGA 1700Memory SpecificationsECCNon-ECC; Non-RegisteredMemory TypeDDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000Memory Speeds Supported7200 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHzMemory Slots4 x 288pin DIMMMemory Channel SupportDual ChannelMax Memory Supported192GBMaximum Memory Supported Per Slot48GBVideo SpecificationsOnboard Graphic ChipsetRequires CPU with Integrated GraphicsStorage SpecificationsM.2 Port Type2242
2260
2280
22110SATA Express3 x M.2 Socket 3
M KeySATA 6Gb/s4RAID SupportRAID 0
RAID 1
RAID 5
RAID 10Audio SpecificationsAudio Channels7.1NetworkingWiFi SupportOnboard WiFiLAN ChipsetRealtek 1Gb EthernetLAN Speed10/100/1000MbpsWireless Technology802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)Expansion SlotsPCI Express 4.0 x163PCI Express 5.0 x161PCI Express x11Back Panel PortsLegacy Ports1 x PS/2LAN Ports1 x 10/100/1000 RJ-45 LANAudio Ports1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-OutUSB 2.04 x USB 2.0 (Type-A)USB 3.11 x USB 3.2 (Gen 2x2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
2 x USB 3.2 (Gen 1 Type-A)Video Connectors1 x HDMI 2.1Specialty Ports2 x WiFi Antenna PortsInternal I/O & ConnectorsHeaders1 x Water Pump Header
3 x System Fan Header
2 x CPU Fan HeaderUSB2 x USB 2.0 Headers (4 Ports)
2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
1 x USB 3.2 Gen 1 Type-C Header (1 Port)Other I/O3 x Addressable LED HeadersPowerPower Connectors1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V ConnectorATX Connector24-pin ATX Power ConnectorPhysical SpecificationsDepth12.00 in. (304.80 mm)Width9.61 in. (244.00 mm)Form FactorATXWarrantyParts3 Years LimitedLabor3 Years LimitedPackage ContentsWhat's in the BoxMotherboard, 2x SATA Cables, Antenna, I/O Shield, M.2 Screws
