NEW Aruba 7010 (EG) 16x 1000BASE-T + 2x SFP Ports 32 AP Branch Controller JY850AHP P/N:JY850AAruba Model: ARCN0103Model: 7010-EG

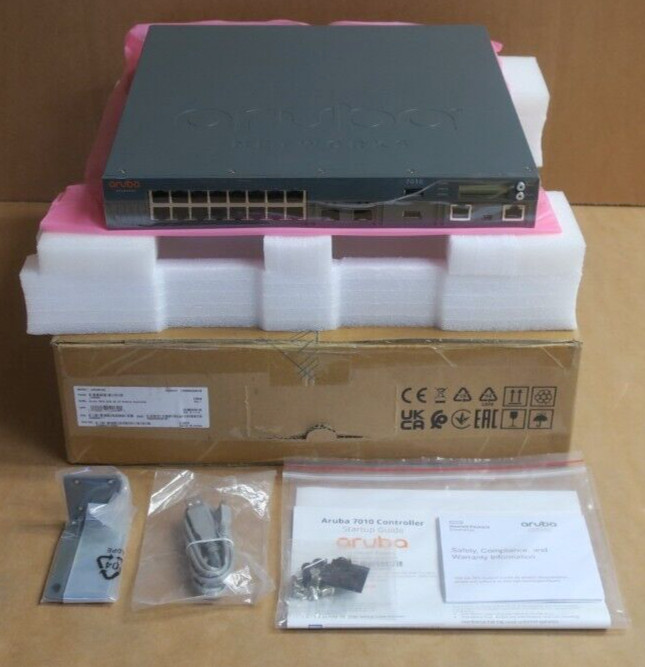

New Open Box - Opened to verify contents
Included:

• 1 xNEW Aruba 7010 (EG) 16x 1000BASE-T + 2x SFP Ports 32 AP Branch Controller JY850A
• 2 x Mounting Brackets
• 1 x USB Console Cable
• 4 x Rubber Feet
• 1 x Quick Start 7000 Series Mobility Controllers optimize cloud services and secure enterprise applications for hybrid WAN at branch offices, while reducing the cost and complexity of deploying and managing the network.
  The 7000 Series Mobility Controllers combine wireless, wired and hybrid WAN services, support up to 64 APs and 24 Ethernet ports, and feature integrated WAN compression, health checks, zero-touch configuration, and policy-based routing. The 7000 series also unify policy management with third-party security services, making it simpler and more secure to create a digital workplace experience in head-end and branch locations.
  Supporting over 4,000 users, the 7000 series performs stateful firewall policy enforcement at up to 8 Gbps. Secure IP tunnels protect WAN traffic across the public and private transport network to the cloud and data center. Additional features include integrated firewall, secure VPN, 3G/4G LTE cellular failover, threat management with content filtering, and local bridging, based on end-user application or IT traffic forwarding requirements.
  The 7000 series can be deployed in minutes with zero-touch provisioning via cloud-based Aruba Activate, enabling IT to deploy branch locations simpler and more and Capacity
  • Maximum campus AP licenses: 32
  • Maximum remote AP licenses: 32
  • Maximum concurrent users/devices: 2,048
  • Maximum VLANs: 4,094
  • Active firewall sessions: 32,768
  • Concurrent GRE tunnels: 512
  • Concurrent IPsec sessions: 1,024
  • Mobility Access Switch tunneled node ports: 1,024
  • Firewall throughput: 4 Gbps
  • Encrypted throughput (3DES,AES-CBC): 2.4 Gbps
  • Encrypted throughput (AES-CCM): 3.4 Gbps
  Interfaces and Indicators
  • Form factor/footprint: 1 rack unit
  • Auto-negotiating 10/100/1000BASE-T: 16
  • Gigabit Ethernet ports (GBIC or SFP): 2 SFP
  • USB 2.0: Yes (2)
  • Management/status LEDs: Yes
  • LINK/ACT and status LEDs: No
  • LCD panel and navigation buttons: Yes
  • Console port: Yes (micro USB/RJ45)
  • Out-of-band management port: Yes
  Power over Ethernet (PoE) support
  • PoE Role/Mode: PSE
  • PoE In or Out: Out
  • Number of PoE+ capable Ports: 12
  • Max concurrent of PoE Ports: 12
  • Max concurrent PoE+ Ports: 5
  • PoE Power Budget: (H x W x D): 4.42 cm x 31.75 cm x 33.7 cm (1.74” x 12.75” x 13.3”)
  • Weight: 3.4 kg (7.5 lbs)
  • MTBF (hours, @ 25C): 232,843
  Environmental range
  • Operating temperature: 0° C to 40° C
  • Storage temperature: -40° C to 70° C
  • Humidity/storage humidity: 10% to 95%, NC
  • Operating altitude: 10,000 feet
  • Acoustic noise: 39.8 – 58.6 dBA
  • Maximum power consumption: 190W (with PoE)
