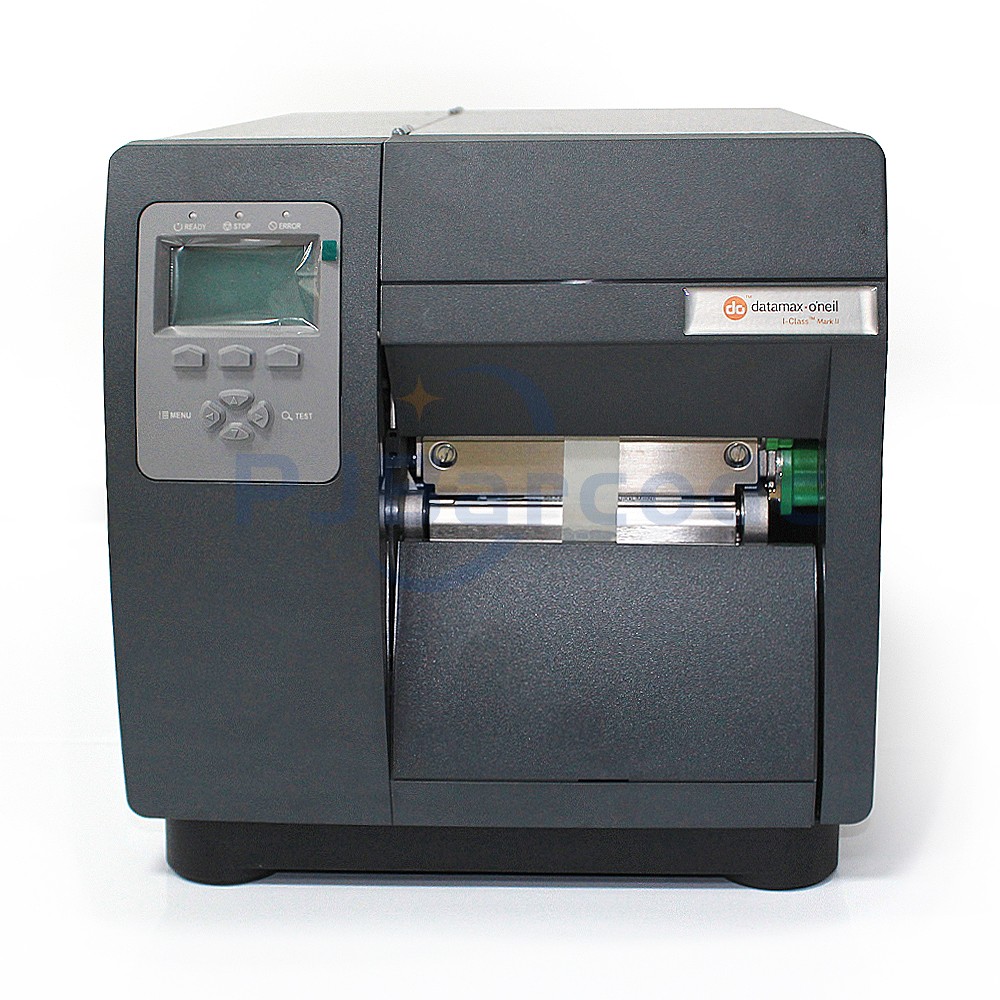

Datamax I-4310E Thermal Transfer/Direct Thermal Barcode Printer Detailed Specifications‌

Core Printing Parameters:‌

Print Method:‌ Dual-mode Thermal Transfer (using ribbon) and Direct Thermal (using thermal paper).
Print Resolution:‌ 203 dpi (8 dots/mm).
Maximum Print Width:‌ 104 mm (4.09 inches).
Maximum Print Speed:‌ 102 mm/s (4 inches per second) - Actual speed depends on label content, software settings, connection method, etc.
Label Sensor Type:‌ Supports Gap/Notch detection and Black Mark detection. Automatic media calibration.
Ribbon Specifications (Thermal Transfer Mode):‌
Max. Outer Diameter: 80 mm.
Core Diameter: 1-inch (25.4 mm) / 0.5-inch (12.7 mm) options.
Width Range: 30 - 110 mm (1.18 - 4.33 inches).
Length: Up to 300 meters.

Media Handling Parameters:‌

Label Specifications:‌
Width Range: 25 - 118 mm (0.98 - 4.64 inches).
Length Range: 6 - 305 mm (0.24 - 12 inches).
Thickness Range: 0.06 - 0.25 mm.
Max. Roll Outer Diameter: 180 mm (7.09 inches).
Core Diameter: 1-inch (25.4 mm) / 1.5-inch (38.1 mm) / 3-inch (76.2 mm).
Label Roll Loading:‌ Rear loading.
Ribbon Loading:‌ Internal loading.
Media Tear-off Position:‌ Front-position tear-off bar (Peeler module optional).

Physical Specifications:‌

Dimensions (W x D x H):‌ Approx. 258 mm (W) x 327 mm (D) x 268 mm (H).
Weight:‌ Approx. 4.3 kg.

Interfaces & Connectivity:‌

Standard Interfaces:‌
USB 2.0 (Typically USB Type-B).
RS-232 Serial Port (DB9 connector).
Optional Interfaces (Requires Modules):‌
10/100M Ethernet (LAN).
Wireless Wi-Fi (802.11 b/g/n).
Bluetooth.

Software & Compatibility:‌

Compatible Operating Systems:‌ Windows, Linux, Android, and other mainstream OS.
Programming Language Support:‌ Common barcode printer languages ZPL, CPCL, EPL.
Drivers:‌ Dedicated drivers for Windows or Universal Windows Drivers (e.g., Zebra ZDesigner drivers).

Electrical & Environmental:‌

Power Supply:‌
Input: AC 100 ~ 240V, 50/60 Hz (Universal).
Output: DC 24V, 2.5A.
Power Consumption:‌ Standby ~10W, Printing ~60W.
Operating Environment:‌
Temperature: 5°C - 40°C (41°F - 104°F).
Humidity: 20% - 85% RH (non-condensing).
Storage Environment:‌
Temperature: -25°C - 60°C (-13°F - 140°F).
Humidity: 5% - 90% RH (non-condensing).

Additional Features:‌

Display:‌ Small LCD screen and status LEDs for displaying print status and settings.
Control Buttons:‌ Front panel buttons (e.g., Feed/Calibrate, Pause, Cancel).
Memory:‌ Standard Flash memory and DRAM for storing fonts, graphics, and print jobs (Refer to official docs for latest capacities, typically Flash 8MB, DRAM 8MB).
Fonts & Graphics:‌ Built-in standard international fonts (e.g., CG Triumvirate, OCR-A/B). Supports downloading fonts and graphics (PCX, BMP) to Flash.
Barcode Support:‌ Supports virtually all common 1D barcodes (e.g., UPC-A/E, EAN-8/13, Code 39, Code 93, Code 128, Interleaved 2 of 5, Codabar, GS1-128, MSI Plessey, Telepen, Postnet) and 2D barcodes (e.g., QR Code, Data Matrix, PDF417, MaxiCode, Aztec, Micro PDF417, Chinese Sensible (Han Xin) Code).
Accessories:‌ External stand, peeler module, cutter module, network/wireless modules, etc.

Important Notes:‌

Actual Specifications:‌ The above parameters are based on mainstream information. ‌Always refer to the latest official Dimas product manual or datasheet‌ for definitive specifications. Minor variations may exist between batches or regions.
Accessory Dependent:‌ Certain interfaces (e.g., Ethernet, Wi-Fi, Bluetooth) and functions (e.g., cutter, peeler) require the purchase of optional modules.
Print Speed:‌ The rated maximum print speed is an ideal value. Actual speed is influenced by label content complexity, software efficiency, data transfer speed, and other factors.

If deploying this printer for specific applications (e.g., warehouse logistics, retail, healthcare), verify requirements regarding label size, print volume, and network connectivity to ensure this model fully meets your needs.
