NEW Lenovo 10GbE 4-Port RJ-45 Lenovo QL41134 Ethernet Adapter 4XC7A08225 01KR584 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

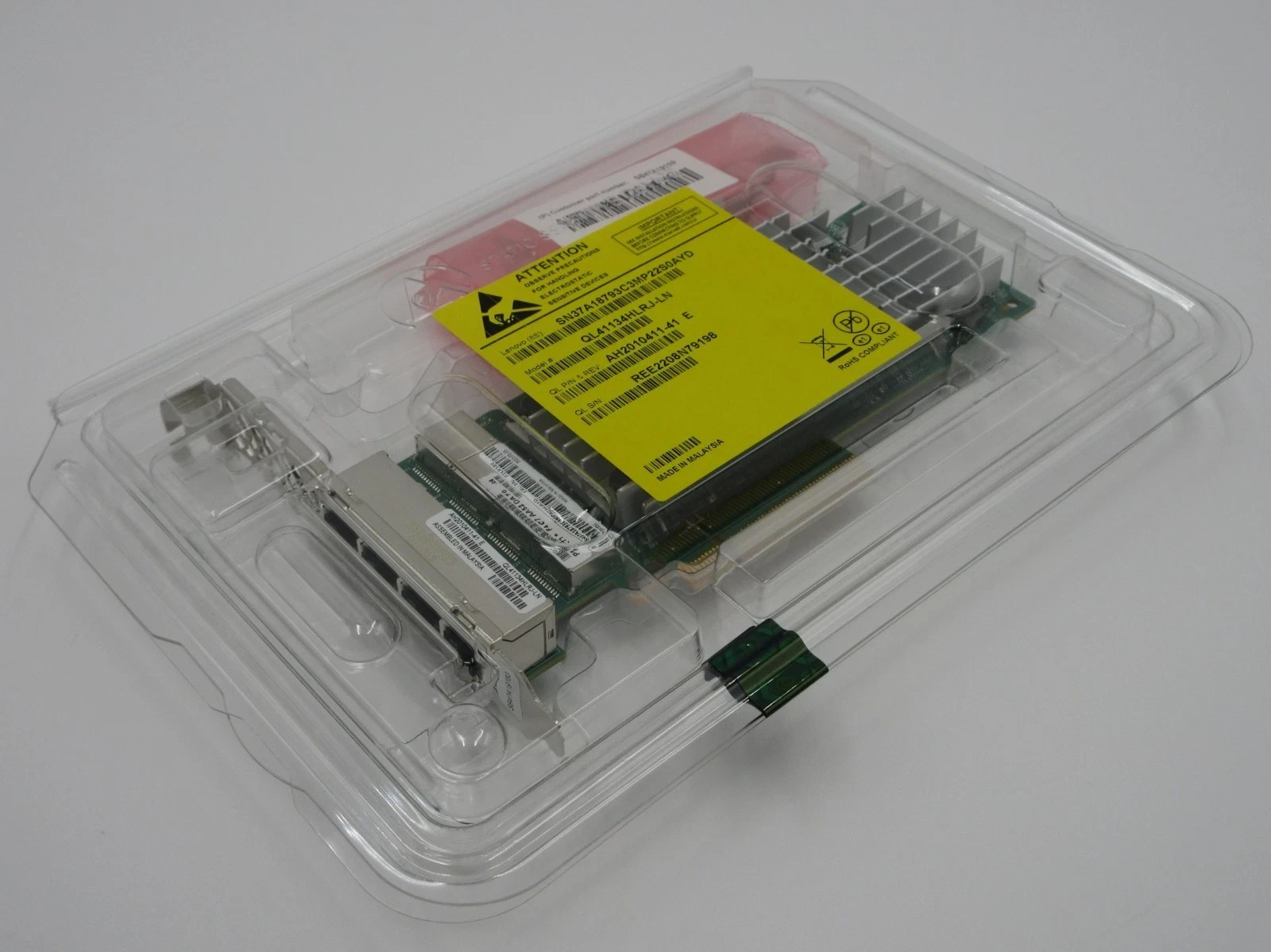

NEW Lenovo 10GbE 4-Port RJ-45 Lenovo QL41134 Ethernet Adapter 4XC7A08225 01KR584

Price: GB $145.00

NEW Lenovo 10GbE 4-Port RJ-45 Lenovo QL41134 Ethernet Adapter 4XC7A08225 01KR584
Model No:QL41134Lenovo FRU P/N:01KR584Lenovo P/N:4XC7A08225
NEW with Low and High profile bracketsIncluded:

1 xNEW Lenovo 10GbE 4-Port RJ-45 Lenovo QL41134 Ethernet Adapter 4XC7A08225 01KR584

Description:The ThinkSystem QLogic QL41134 PCIe 10Gb 4-Port Base-T Ethernet Adapter is an advanced Quad-port 10GBASE-T Ethernet Adapter from Cavium which features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. The adapter is suitable for customers wishing to use advanced technologies while still maintaining their investment in RJ45 copper wiring.
Specification:The adapters have the following technical specifications:

Marvell FastlinQ 41000 ASIC
PCIe 3.0 x8 host interface
Supports Message Signal Interrupt (MSI-X)
Two or four RJ45 connectors
Support for PXE boot and iSCSI boot (Note: Wake-on-LAN (WOL) is not supported)
Networking Features
Jumbo frames (up to 9600-Byte)
802.3x flow control
Link Aggregation (IEEE 802.1AX-2008)
Virtual LANs-802.1q VLAN tagging
Configurable Flow Acceleration
Congestion Avoidance
IEEE 1588 and Time Plane Development Kit (DPDK) support
Maximum 60 Million packets per second
Low latency
10Gbps line rate per-port
1Gb/10Gb Auto Negotiation

Stateless Offload Features

IP, TCP, and user datagram protocol (UDP) checksum offloads
TCP segmentation offload (TSO)
Large send offload (LSO)
Giant send offload (GSO)
Large receive offload (LRO) (Linux)
Receive segment coalescing (RSC) (Windows)
Receive side scaling (RSS)
Transmit side scaling (TSS)
Interrupt NetQueue support
Microsoft Hyper-V VMQ support (up to 208 dynamic queues)
Linux Multiqueue support
PCI SIG SR-IOV compliant with support for 192 Virtual Functions
Virtual NIC (vNIC) / Network Partitioning (NPAR) with support for up to 16 physical functions
(8 for the two-port adapter)
Unified Fabric Protocol (UFP) with 16 physical functions for the four-port adapter, 8 for the two-port adapter)
VXLAN-aware stateless offloads
NVGRE-aware stateless offloads
Geneve-aware stateless offloads
IP-in-IP-aware stateless offloads
GRE-aware stateless offloads
Stateless Transport Tunneling
Edge Virtual Bridging (EVB)
Per Virtual Function (VF) statistics
VF Receive-Side Scaling (RSS)/Transmit-Side Scaling (TSS)

RDMA over Converged Ethernet Extensions for RDMA (iSER)

Internet wide area RDMA protocol (iWARP)

Storage over RDMA: iSER, SMB Direct, and NVMe over Offloads:

Virtual Extensible LAN (VXLAN)
Generic Network Virtualization Encapsulation (GENEVE)
Network Virtualization using Generic Routing Encapsulation (NVGRE)
Linux Generic Routing Encapsulation (GRE)

Data Center Bridging (DCB)

Priority-based flow control (PFC; IEEE 802.1Qbb)
Enhanced transmission selection (ETS; IEEE 802.1Qaz)
Quantized Congestion Notification (QCN; IEEE 802.1Qau)
Data Center Bridging Capability eXchange (DCBX; IEEE Control Suite integrated network adapter management utility (CLI) for Linux and Windows
QConvergeConsole integrated network management utility (GUI) for Linux and Windows
QConvergeConsole Plug-ins for vSphere (GUI) and ESXCLI plug-in for VMware
QConvergeConsole PowerKit (Windows PowerShell) cmdlets for Linux and Windows
UEFI-based device configuration pages
Native OS management tools for networking
Full support for Lenovo OneCLI, ASU, XClarity Administrator and firmware updates
SNIA HBA API v2 and SMI-S APIs
Support for Network Controller Sideband Interface (NC-SI) (OCP adapter only)

Power Saving
